ENGINE COVER(S)
KL250D5 KLR250 1988 EUROPE UK FG GR

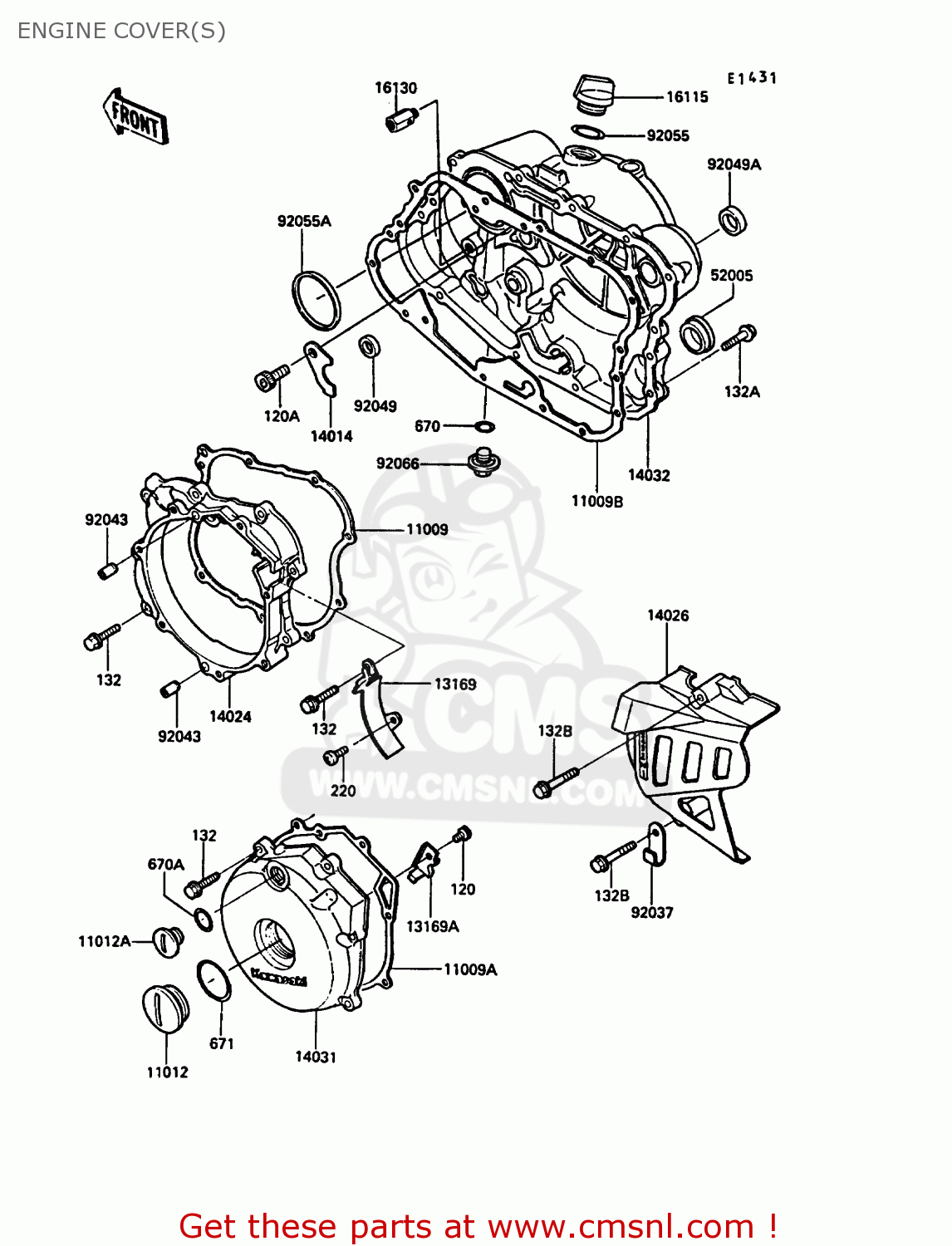

Engine cover(s) diagram KL250D5 KLR250 1988 EUROPE UK FG GR
ENGINE COVER(S) KL250D5 KLR250 1988 EUROPE UK FG GR
×
prices are in EUR
ref
part #
description
quantity
120
120P0608
ref: 120
BOLT-SOCKET
€ 1.50
120A
120P0610
ref: 120A
BOLT-SOCKET,6X10
€ 1.00
132
132W0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0645
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
220
220B0608
ref: 220
SCREW-PAN HEAD,6X8
€ 0.50
670
670B2011
ref: 670
O RING,11MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
11009
110091435
ref: 11009
GASKET,GENERATOR CASE
€ 18.50
11009A
110091436
ref: 11009A
GASKET,GENERATOR COVE (MCA)
€ 12.50
11009B
110091437
ref: 11009B
GASKET,CLUTCH COVER (MCA)
€ 28.50
11012
110121362
ref: 11012
CAP
€ 6.00
11012A
110121363
ref: 11012A
CAP,TOP MARK
€ 4.00
13169
131691879
ref: 13169
PLATE
€ 11.50
13169A
131691880
ref: 13169A
PLATE,GENERATOR LEAD
€ 6.00
14014
140141062
ref: 14014
PLATE-POSITION
€ 5.50
14024
140251911
ref: 14024
COVER,GENERATOR CASE
€ 108.50
14026
140261112
ref: 14026
COVER-CHAIN
€ 40.00
14031
140311170
ref: 14031
COVER-GENERATOR
€ 174.50
14032
140321277
ref: 14032
COVER-CLUTCH
€ 280.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92049
920491191
ref: 92049
SEAL-OIL
€ 16.00
92049A
92050078
ref: 92049A
OIL SEAL
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551221
ref: 92055A
RING-O,62.6X66X3.1
€ 6.00
92066
920661156
ref: 92066
PLUG,DRAIN
€ 9.50
