STAND(S)

KL250D5 KLR250 1988 EUROPE UK FG GR

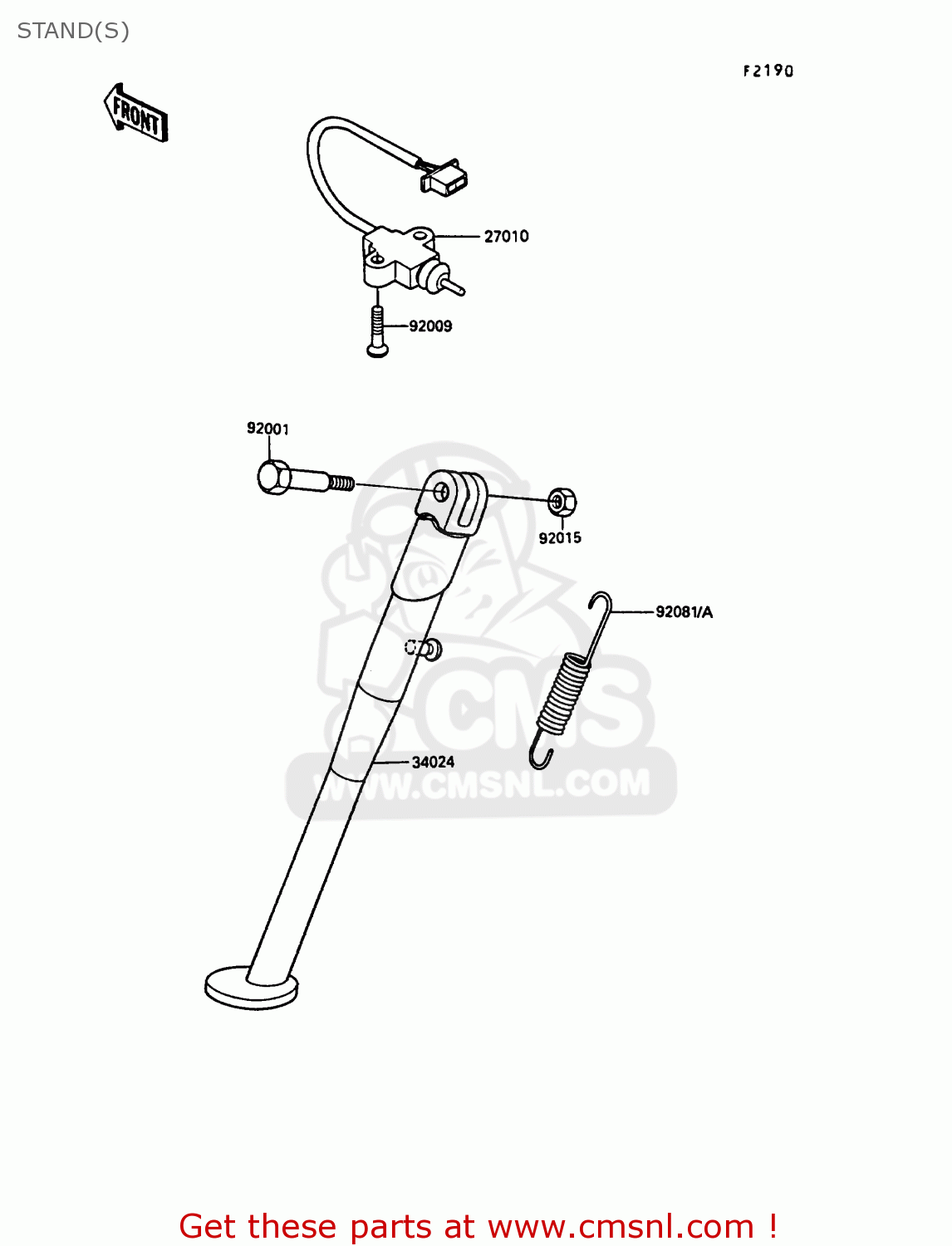

Stand(s) diagram KL250D5 KLR250 1988 EUROPE UK FG GR

STAND(S) KL250D5 KLR250 1988 EUROPE UK FG GR

STAND(S) KL250D5 KLR250 1988 EUROPE UK FG GR

prices are in EUR

ref

part #

description

quantity

27010

270101189
ref: 27010

SWITCH,SIDE STAND

€ 54.50

34024

340241182
ref: 34024

STAND-SIDE

€ 50.00

92001

92003157
ref: 92001

BOLT,SIDE STAND FIT

€ 6.50

92009

920091359
ref: 92009

SCREW

€ 2.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92081

920811376
ref: 92081
EUGRUK

SPRING,SIDE STAND

€ 9.50

92081A

920811695
ref: 92081A
FG

SPRING,SIDE STAND

€ 11.50
