FENDERS
KL250D5 KLR250 1988 EUROPE UK FG GR

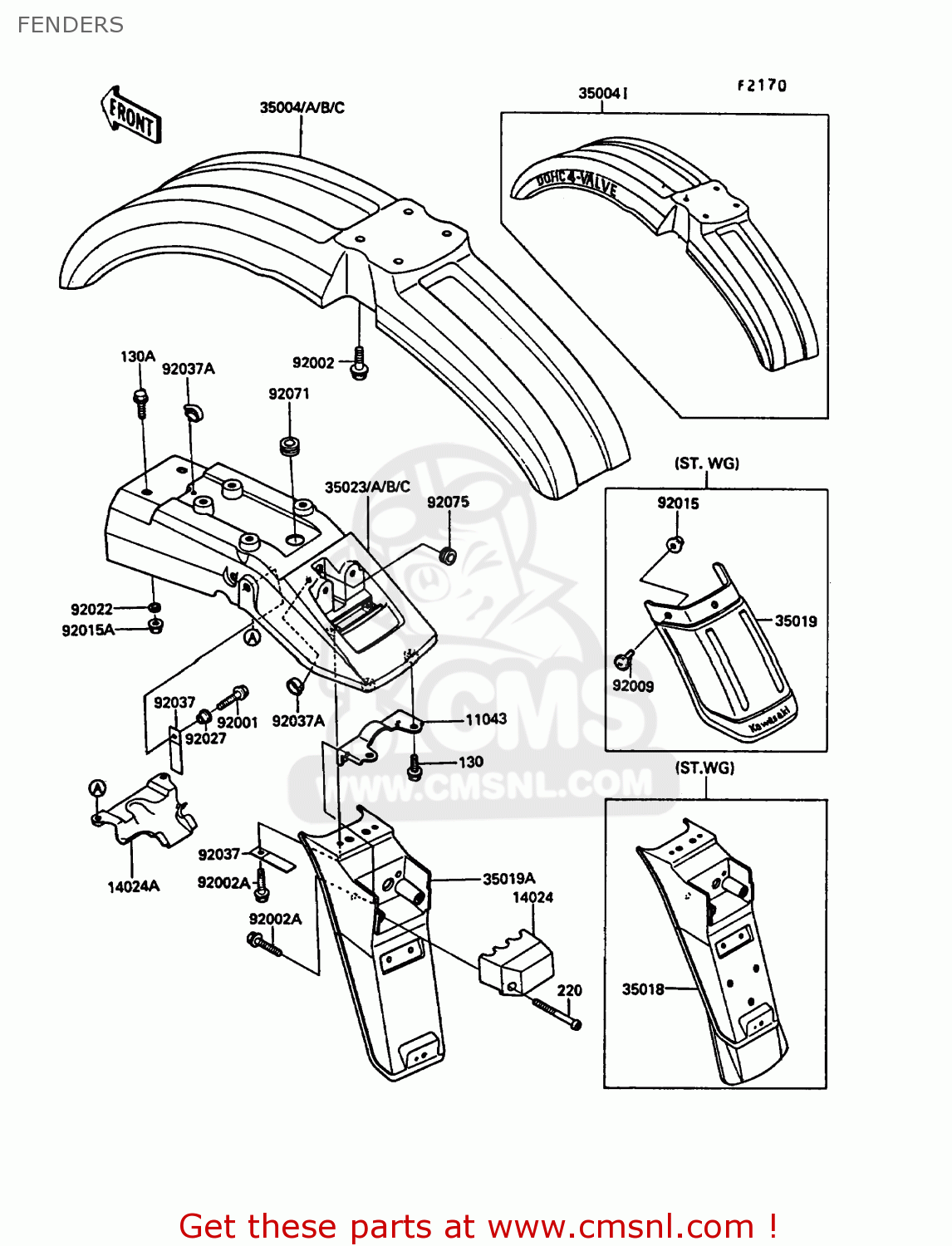

Fenders diagram KL250D5 KLR250 1988 EUROPE UK FG GR
FENDERS KL250D5 KLR250 1988 EUROPE UK FG GR
×
prices are in EUR
ref
part #
description
quantity
11043
110431734
ref: 11043
BRACKET,REAR FLAP
€ 10.00
14024
140251933
ref: 14024
COVER,LICENSE PLATE L
€ 17.00
14024A
140251982
ref: 14024A
COVER,HARNESS
€ 12.50
35004A
3500411536C
ref: 35004A
EUFGGR
FENDER-FRONT,EBONY
€ 79.50
35004B
3500411536F
ref: 35004B
FENDER-FRONT,P.WHITE
€ 72.00
35018
350181051
ref: 35018
FG
FLAP-ASSY,FENDER,RR
€ 31.00
35019
350191002
ref: 35019
FG
FLAP,FENDER,FR
€ 11.50
35019A
350191117
ref: 35019A
EUGRUK
FLAP,FENDER,RR
€ 27.50
35023A
3502311146C
ref: 35023A
EUFGGR
FENDER-REAR,RR,EBONY
€ 80.00
35023B
3502311146F
ref: 35023B
FENDER-REAR,RR,P.WHIT
€ 79.00
130
130D0608
ref: 130
BOLT-FLANGED
€ 0.50
130A
130D0612
ref: 130A
BOLT,FLANGED
€ 0.50
220
220C0545
ref: 220
SCREW-PAN-CROS
€ 1.50
92001
920011773
ref: 92001
BOLT,6X20
€ 2.50
92002
920021187
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021188
ref: 92002A
BOLT,6X16
€ 3.00
92009
920091308
ref: 92009
FG
SCREW,6X14
€ 2.00
92015
920151193
ref: 92015
FG
NUT,FLANGED,6MM
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027122
ref: 92027
COLLAR,L=4.7
€ 5.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371163
ref: 92037A
CLAMP,HARNESS,REAR
€ 4.50
92071
920711027
ref: 92071
GROMMET,AIR CLEANER
€ 3.00
92075
920751028
ref: 92075
DAMPER RUBBER
€ 3.00
