SEAT

KL250D5 KLR250 1988 EUROPE UK FG GR

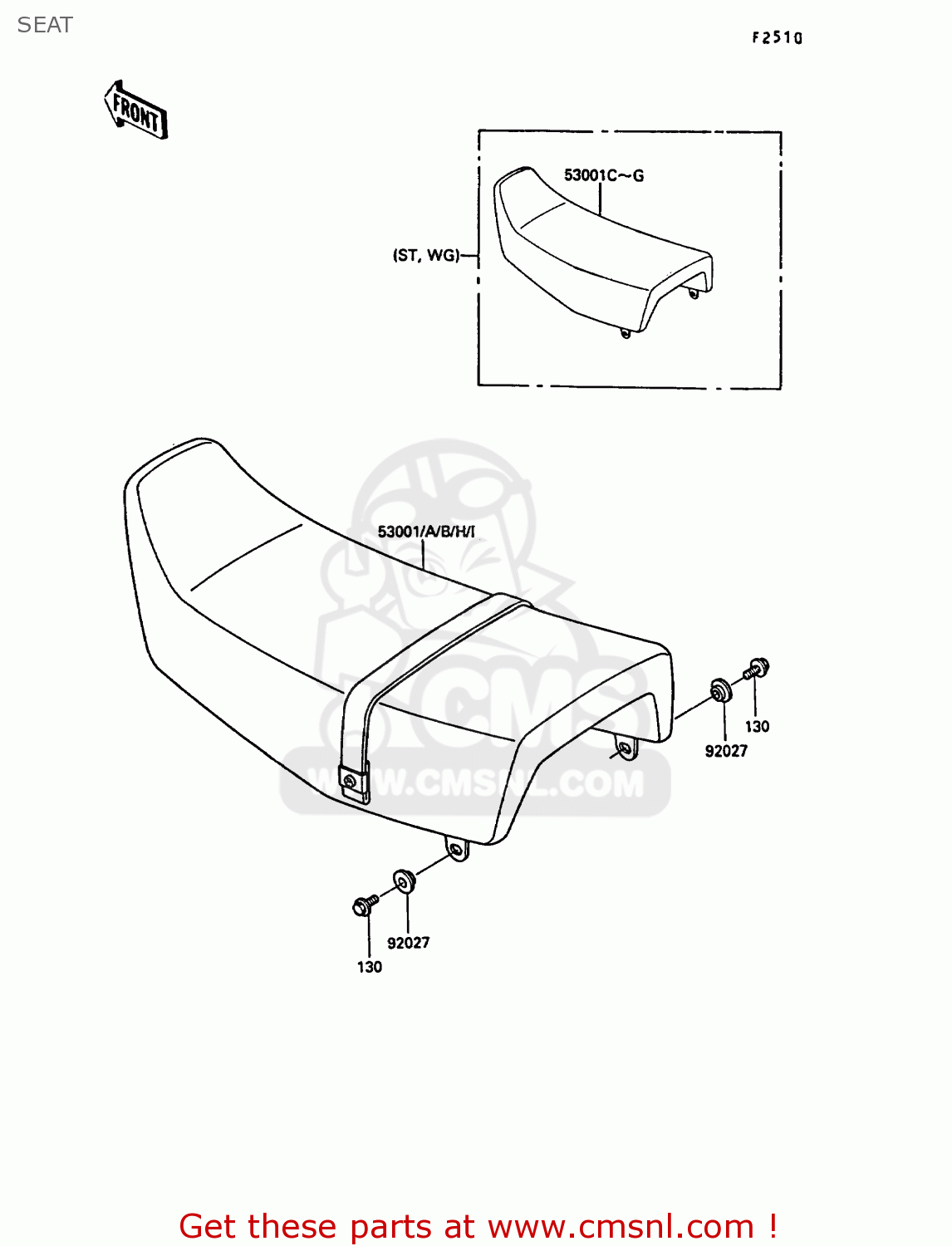

Seat diagram KL250D5 KLR250 1988 EUROPE UK FG GR

SEAT KL250D5 KLR250 1988 EUROPE UK FG GR

SEAT KL250D5 KLR250 1988 EUROPE UK FG GR

prices are in EUR

ref

part #

description

quantity

130

130B0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

53001

530011510NE
ref: 53001
EUUK

SEAT-ASSY,DUAL,W/BAND

€ 228.50

53001A

530011510N4
ref: 53001A
EUGR

SEAT-ASSY,DUAL,W/BAND

€ 359.00

53001C

530011511NE
ref: 53001C
FG

SEAT-ASSY,DUAL,BLUE

€ 222.00

53001D

530011511N4
ref: 53001D
FG

SEAT-ASSY,DUAL,RED

€ 288.50

92027

920271794
ref: 92027

COLLAR

€ 2.50
