FRONT FORK
KL250D5 KLR250 1988 EUROPE UK FG GR

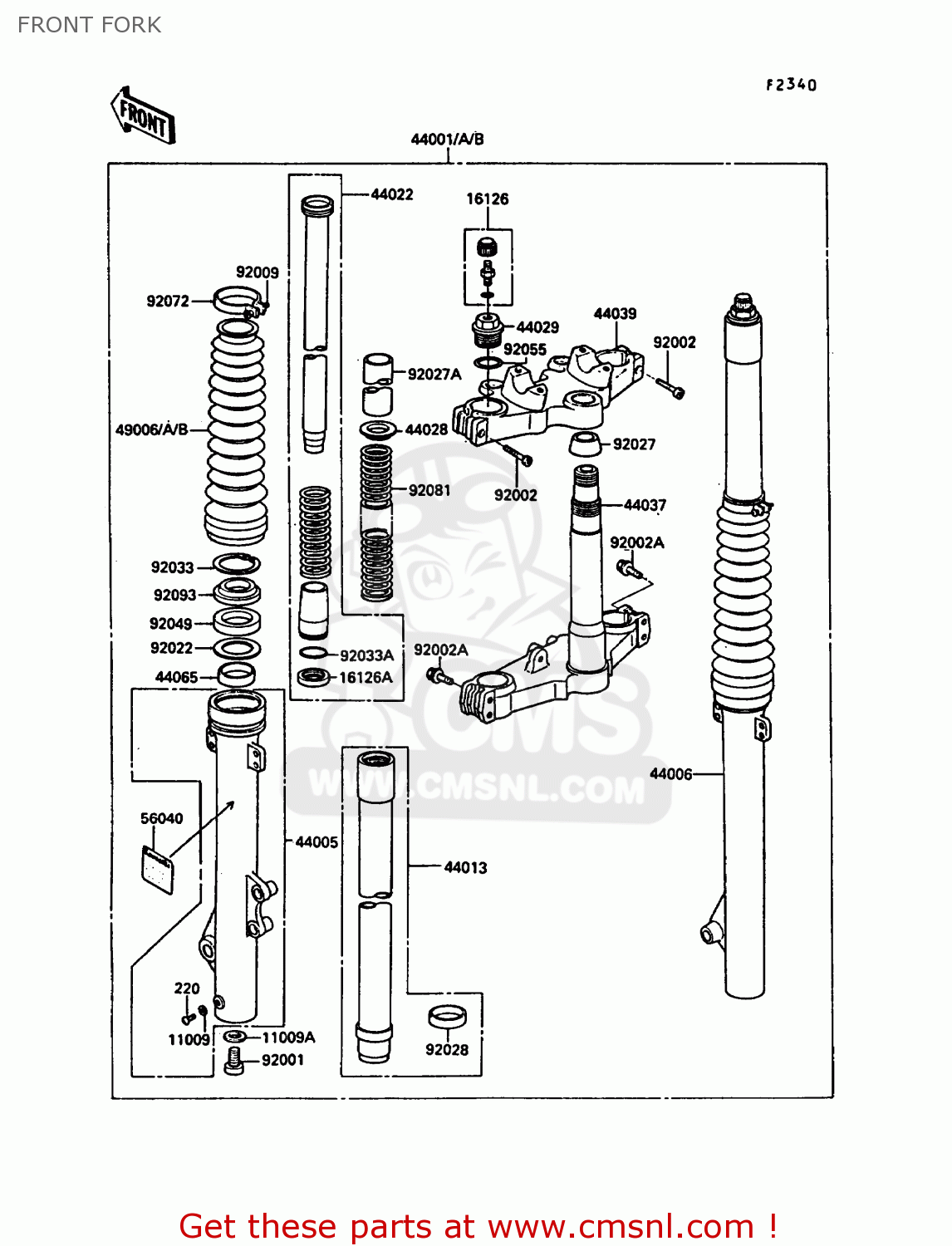

Front fork diagram KL250D5 KLR250 1988 EUROPE UK FG GR
FRONT FORK KL250D5 KLR250 1988 EUROPE UK FG GR
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16126A
161261123
ref: 16126A
VALVE,FORK CYLINDER
€ 24.50
44001A
440011552BC
ref: 44001A
EUFGUK
FORK-FRONT,BLUE
€ 1,481.50
44001B
440011552BL
ref: 44001B
EUFGGR
FORK-FRONT,RED
€ 1,487.00
44005
440051226
ref: 44005
PIPE-LEFT FORK OUTER
€ 305.50
44006
440061226
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131224
ref: 44013
PIPE-FORK INNER
€ 197.50
44022
440221175
ref: 44022
CYLINDER-FORK
€ 167.00
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291119
ref: 44029
SEAT-FORK SPRING
€ 52.50
44037
440371178
ref: 44037
HOLDER-FORK UNDER
€ 267.50
44039
440391121
ref: 44039
HOLDER-FORK UPPER
€ 199.50
44065
440651016
ref: 44065
BUSHING-FRONT FORK
€ 19.00
49006A
490061009BC
ref: 49006A
EUFGUK
BOOT,FORK,BLUE
€ 50.00
49006B
490061009BL
ref: 49006B
EUFGGR
BOOT,FORK,RED
€ 47.50
56040
560401120
ref: 56040
LABEL,FRONT FORK
€ 3.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92002
920021277
ref: 92002
BOLT,SOCKET,8X32
€ 7.50
92002A
920021476
ref: 92002A
BOLT,FLANGED,8X40
€ 6.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92027
920271791
ref: 92027
COLLAR,UPPER BRACKET
€ 46.00
92027A
920271872
ref: 92027A
COLLAR,L=165
€ 32.00
92028
920281354
ref: 92028
BUSHING,INNER PIPE
€ 13.00
92033
44044015
ref: 92033
CIRCLIP
€ 9.50
92033A
920331004
ref: 92033A
RING-SNAP,FORK CYLIND
€ 5.50
92049
920491216
ref: 92049
SEAL-OIL,FORK OUTER P
€ 16.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92072
920721008
ref: 92072
BAND,BOOTS
€ 7.50
92081
920811825
ref: 92081
SPRING,FRONT FORK
€ 44.00
92093
920931181
ref: 92093
SEAL,FORK OUTER PIPE
€ 14.00
