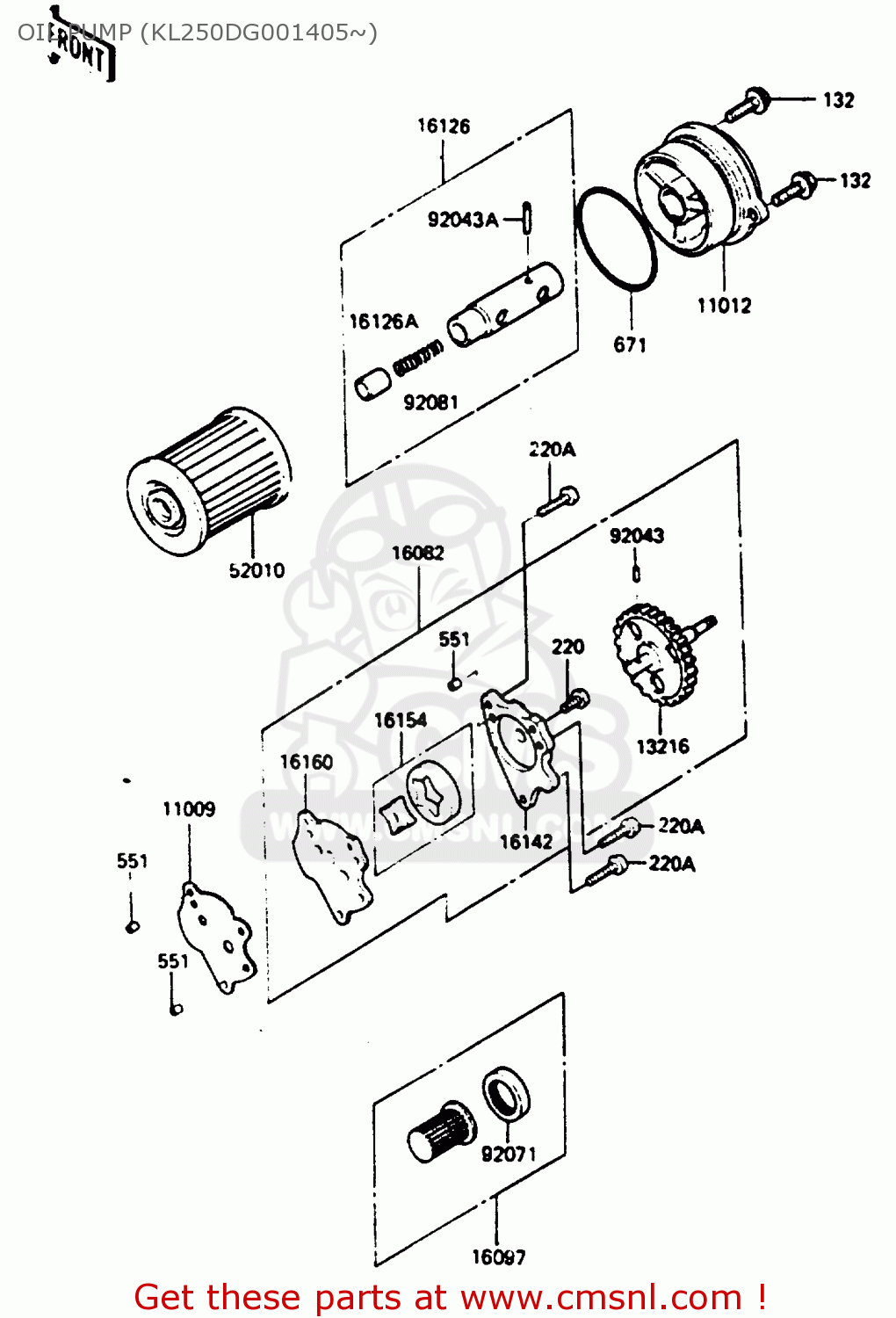

OIL PUMP (KL250DG001405~)

ref

part #

description

quantity

11009

110091438
ref: 11009

GASKET,OIL PUMP (MCA)

€ 4.00

11012

110121538
ref: 11012

CAP,OIL FILTER

€ 40.00

13216

132161092
ref: 13216

GEAR-COMP,OIL PUMP

€ 82.00

16082

160821080
ref: 16082

PUMP-ASSY-OIL

€ 144.50

16097

160971001
ref: 16097

STRAINER ASSY,OIL

€ 5.00

16126

16156002
ref: 16126

PISTON-ASSY,VALVE,BY-

€ 15.50

16126A

92136002
ref: 16126A

PISTON

€ 3.00

16142

161421056
ref: 16142

COVER-PUMP

€ 34.50

16154

161541008
ref: 16154

ROTOR-PUMP,OIL

€ 24.50

16169

161601069
ref: 16169

BODY,OIL PUMP

€ 22.00

52010

16099004
ref: 52010

FILTER, OIL

€ 5.50

92042

92042041
ref: 92042

PIN,DOWEL

€ 4.50

92043A

92043123
ref: 92043A

SPRING PIN

€ 3.00

92071

92071100
ref: 92071

GROMMET OIL STRAINER

€ 3.50

92081

92081043
ref: 92081

SPRING, PISTON

€ 3.50

132

132W0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

220

220B0614
ref: 220

SCREW-PAN HEAD,6X14

€ 2.00

220A

220B0625
ref: 220A

SCREW-PAN HEAD,6X25

€ 1.50

551

551A0608
ref: 551

PIN,DOWEL,6X8

€ 2.50

671

671B2555
ref: 671

O RING,55MM

€ 4.00

all assemblies
