FRAME FITTING

KL250D3 1986 EUROPE UK GR GU IT ST UR WG

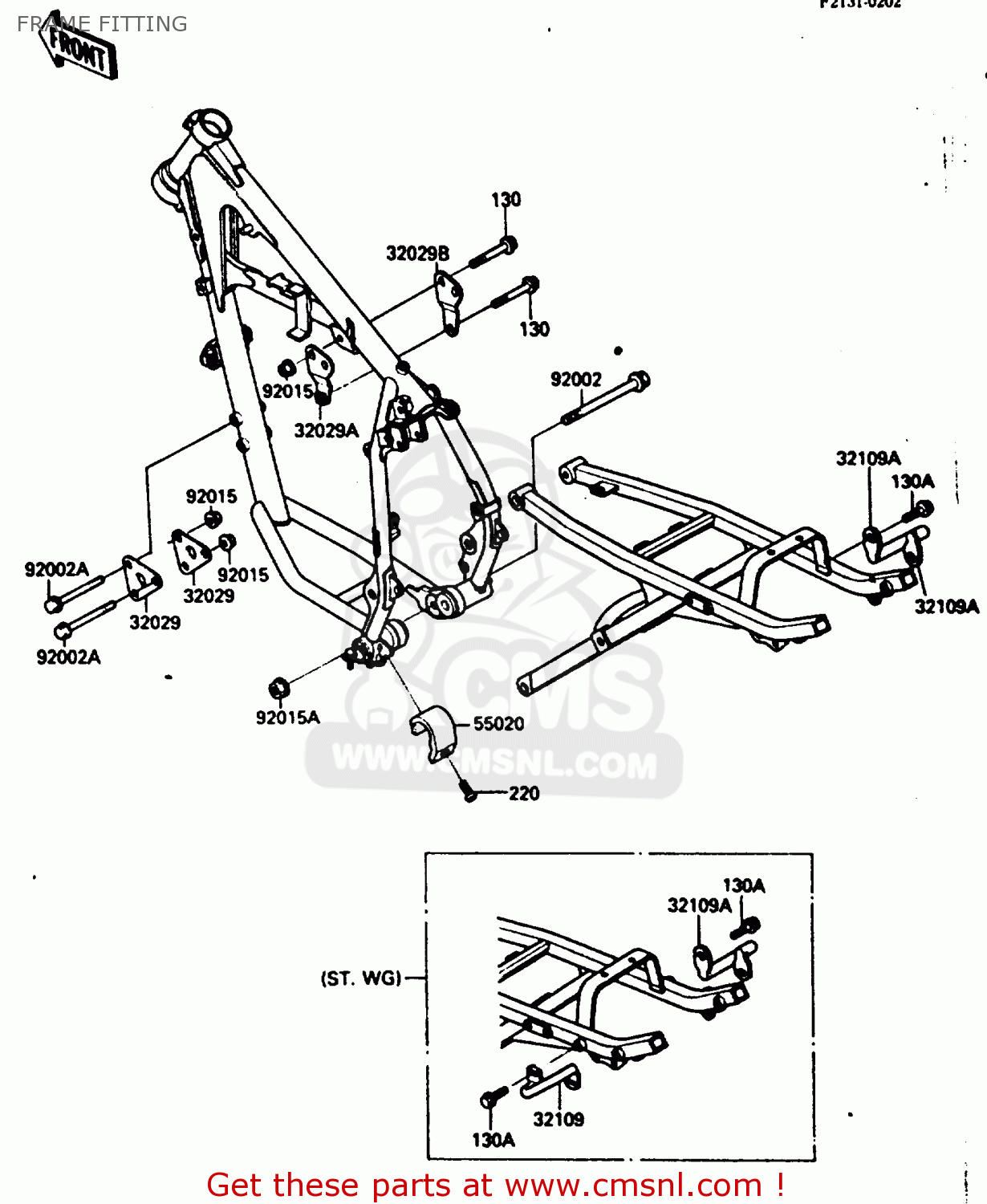

Frame fitting diagram KL250D3 1986 EUROPE UK GR GU IT ST UR WG

prices are in EUR

ref

part #

description

quantity

32029

320291352
ref: 32029

BRACKET-ENGINE,FR

€ 13.50

32029A

320291353
ref: 32029A

BRACKET-ENGINE,LH

€ 22.00

32029B

320291354
ref: 32029B

BRACKET-ENGINE,RH

€ 14.50

32109

321091120
ref: 32109
ST, WG

GRIP-FRAME,LH

€ 20.50

32109A

321091121
ref: 32109A

GRIP-FRAME,RH

€ 20.50

55020

550201174
ref: 55020

GUARD,CHAIN

€ 25.00

92002

920021347
ref: 92002

BOLT,FLANGED,12X135

€ 13.50

92002A

920021349
ref: 92002A

BOLT,FLANGED,8X70

€ 3.50

92015

920151406
ref: 92015

NUT,8MM

€ 3.00

92015A

920151426
ref: 92015A

NUT,12MM

€ 4.50

130

130H0845
ref: 130

BOLT-FLANGED

€ 1.00

130A

130N0812
ref: 130A
ST, WG

BOLT-FLANGED

€ 3.00

130A

130N0812
ref: 130A
EU, GR, IT, UK

BOLT-FLANGED

€ 3.00

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50
