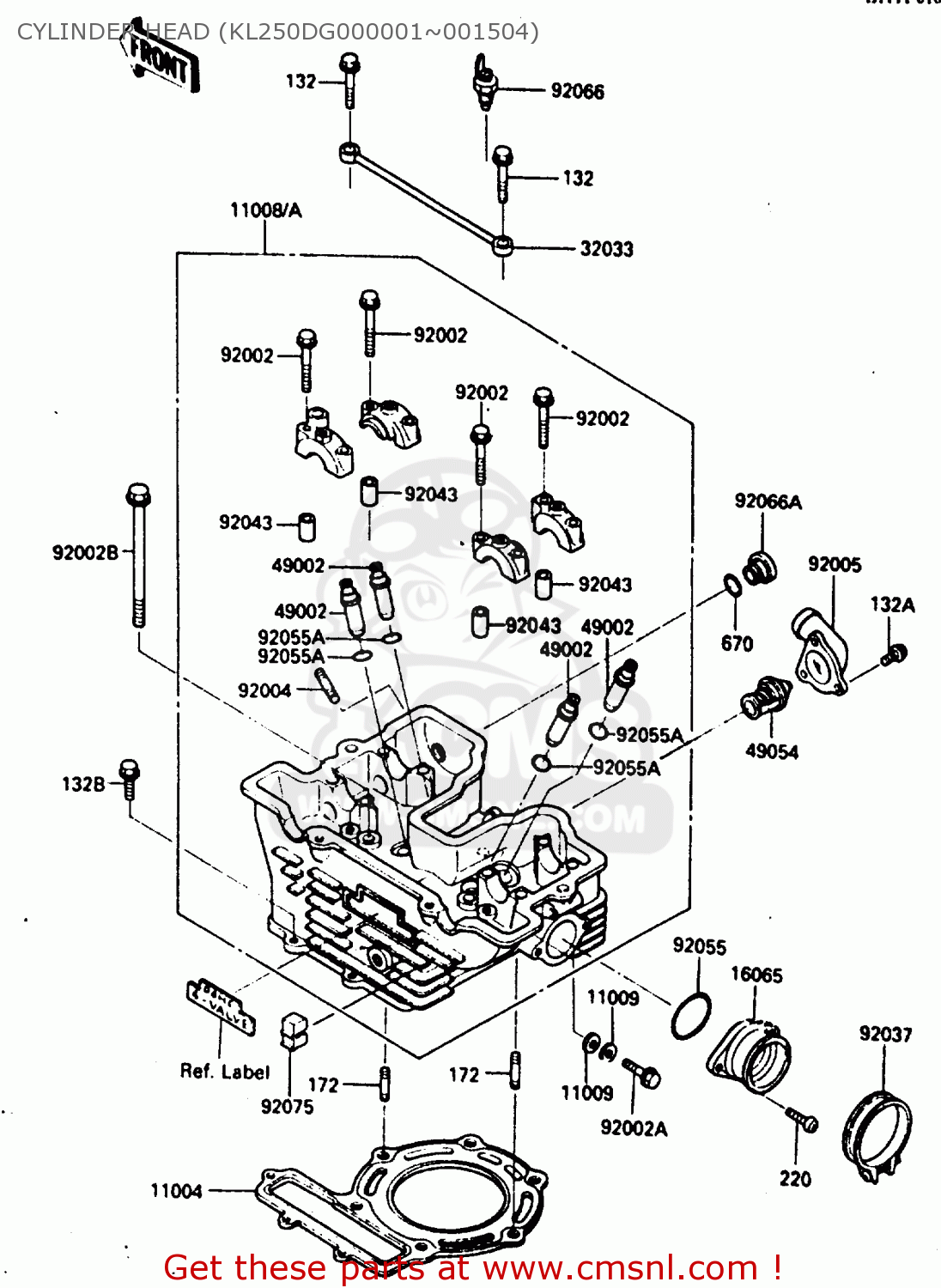

CYLINDER HEAD (KL250DG000001~001504)

ref

part #

description

quantity

11004

110041121
ref: 11004

GASKET-HEAD (NAS)

€ 29.00

11008

110081124
ref: 11008
( - KL250DC010293) (

HEAD-COMP-CYLINDER

€ 1,101.00

11008A

110081181
ref: 11008A
( KL250DK0T0294 - )

HEAD-COMP-CYLINDER

€ 573.50

11009

110091105
ref: 11009

GASKET,10X14.5X1.5 (NAS)

€ 4.00

16065

160651143
ref: 16065

HOLDER-CARBURETOR

€ 35.50

32033

320331402
ref: 32033

PIPE,OIL

€ 51.50

49002

490021092
ref: 49002

GUIDE-VALVE

€ 21.50

49054

490541003
ref: 49054

THERMOSTAT

€ 44.50

92002

920011872
ref: 92002

BOLT,6X46

€ 2.50

92002A

920021190
ref: 92002A

BOLT,SOCKET,5X10

€ 2.50

92002B

920021328
ref: 92002B

BOLT,L=162

€ 14.50

92004

920041008
ref: 92004

STUD, 8X25

€ 3.50

92005

920051121
ref: 92005

FITTING

€ 25.00

92037

920371304
ref: 92037

CLAMP,ID=53,BLACK

€ 7.00

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92055

920551255
ref: 92055

RING-O

€ 12.50

92055A

920551265
ref: 92055A

RING-O,11.7MM

€ 6.50

92066

920661118
ref: 92066

PLUG,SENSOR WATOR

€ 50.00

92066A

920661188
ref: 92066A

PLUG,ROCKER SHAFT

€ 12.00

92075

920751710
ref: 92075

DAMPER

€ 5.00

132

132G0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

132A

132J0612
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0685
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

172

172G0822
ref: 172

BOLT-STUD,8X22

€ 1.50

220

220C0616
ref: 220

SCREW-PAN-CROS,6X12,B

€ 2.50

670

670B2020
ref: 670

O RING,20MM

€ 1.00

all assemblies
