FRONT FORK
KL250D3 1986 EUROPE UK GR GU IT ST UR WG

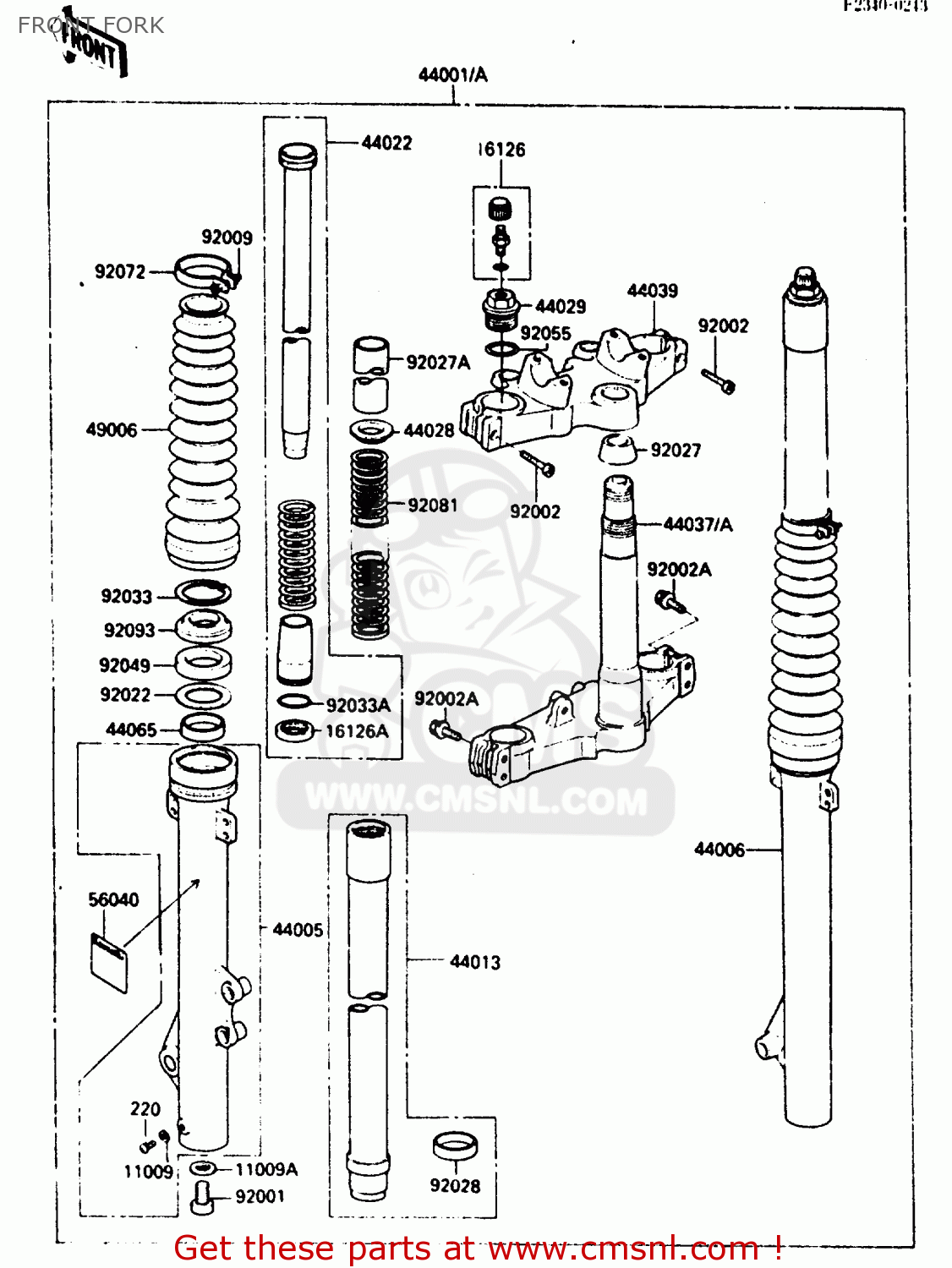

Front fork diagram KL250D3 1986 EUROPE UK GR GU IT ST UR WG
FRONT FORK KL250D3 1986 EUROPE UK GR GU IT ST UR WG
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045057
ref: 11009A
GASKET (NAS)
€ 3.00
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
16126A
161261123
ref: 16126A
VALVE,FORK CYLINDER
€ 24.50
44001
440011552BD
ref: 44001
FORK-FRONT,BLACK
€ 1,459.00
44005
440051226
ref: 44005
PIPE-LEFT FORK OUTER
€ 305.50
44006
440061226
ref: 44006
PIPE-RIGHT FORK OUTER
€ 277.00
44013
440131224
ref: 44013
PIPE-FORK INNER
€ 197.50
44022
440221175
ref: 44022
CYLINDER-FORK
€ 167.00
44028
440281004
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291119
ref: 44029
SEAT-FORK SPRING
€ 52.50
44037
440371178
ref: 44037
HOLDER-FORK UNDER
€ 267.50
44037
440371178
ref: 44037
EU, FR, GR, IT, ST,
HOLDER-FORK UNDER
€ 267.50
44039
440391121
ref: 44039
HOLDER-FORK UPPER
€ 199.50
44065
440651016
ref: 44065
BUSHING-FRONT FORK
€ 19.00
49006
490061009BD
ref: 49006
BOOT,FORK,BLACK
€ 49.00
56060
560401120
ref: 56060
LABEL,FRONT FORK
€ 3.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92002
920021277
ref: 92002
BOLT,SOCKET,8X32
€ 7.50
92002A
920021476
ref: 92002A
BOLT,FLANGED,8X40
€ 6.50
92009
920091348
ref: 92009
SCREW
€ 3.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92027
920271791
ref: 92027
COLLAR,UPPER BRACKET
€ 46.00
92027A
920271872
ref: 92027A
COLLAR,L=165
€ 32.00
92028
920281354
ref: 92028
BUSHING,INNER PIPE
€ 13.00
92033
44044015
ref: 92033
CIRCLIP
€ 9.50
92033A
920331004
ref: 92033A
RING-SNAP,FORK CYLIND
€ 5.50
92049
920491216
ref: 92049
SEAL-OIL,FORK OUTER P
€ 16.00
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92072
920721008
ref: 92072
BAND,BOOTS
€ 7.50
92081
920811825
ref: 92081
SPRING,FRONT FORK
€ 44.00
92093
920931181
ref: 92093
SEAL,FORK OUTER PIPE
€ 14.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
