BRAKE PEDAL

KL250D3 1986 EUROPE UK GR GU IT ST UR WG

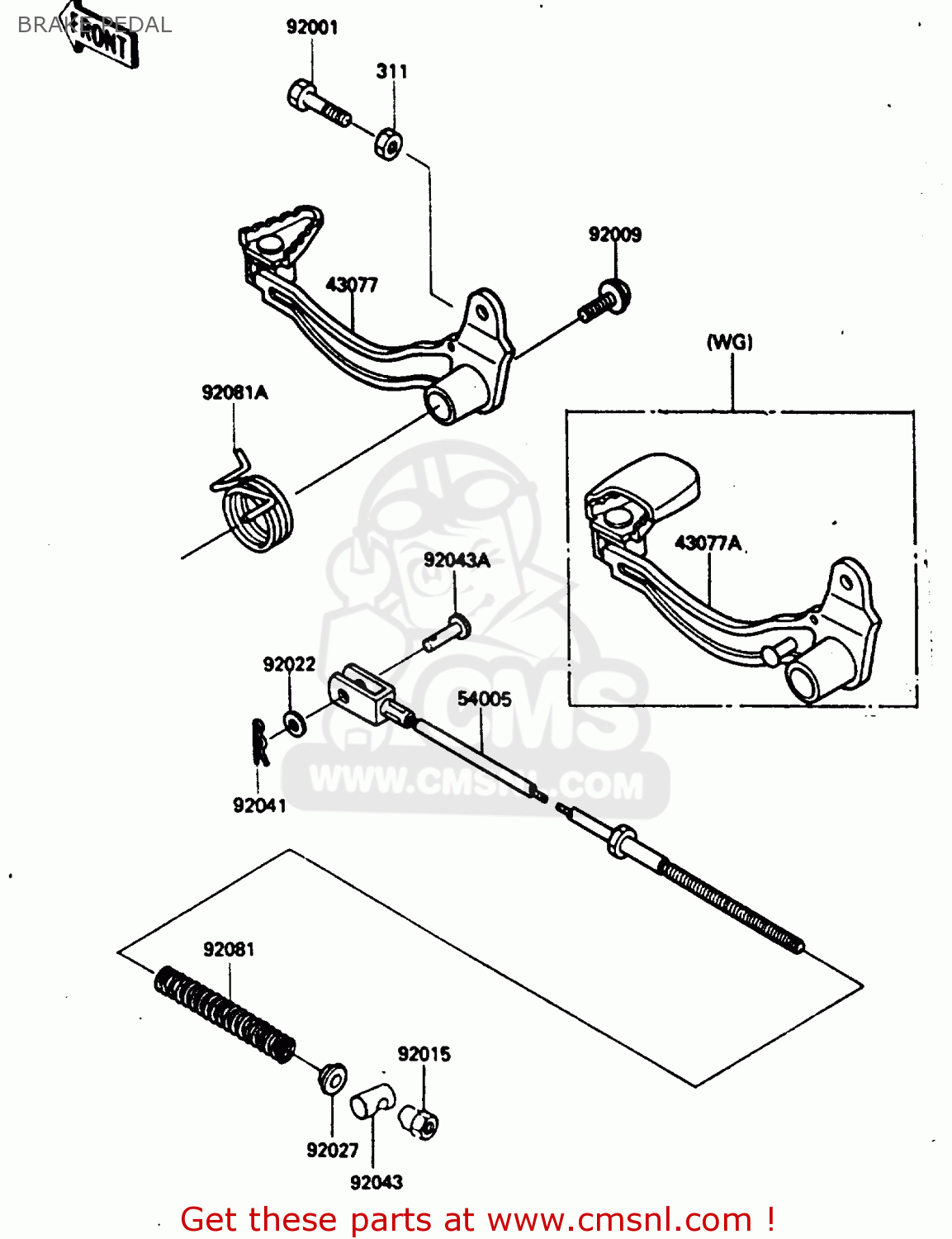

Brake pedal diagram KL250D3 1986 EUROPE UK GR GU IT ST UR WG

prices are in EUR

ref

part #

description

quantity

43077

430771055
ref: 43077
EU, GR, IT, ST, UK

LEVER-ASSY-BRAKE,PEDA

€ 52.00

43077A

430771056
ref: 43077A
WG

LEVER-ASSY-BRAKE,PEDA

€ 52.00

54005

540051108
ref: 54005

CABLE-BRAKE,RR

€ 38.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92027

92027122
ref: 92027

COLLAR,L=4.7

€ 5.50

92041

920411052
ref: 92041

COTTER

€ 1.00

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

92043125
ref: 92043A

PIN

€ 4.50

92081

920811610
ref: 92081

SPRING,REAR BRAKE CAB

€ 3.00

92081A

920811782
ref: 92081A

SPRING,BRAKE PEDAL RE

€ 7.00

311

311B0600
ref: 311

NUT,6MM

€ 0.50
