STEP

KL250C2 1984 USA

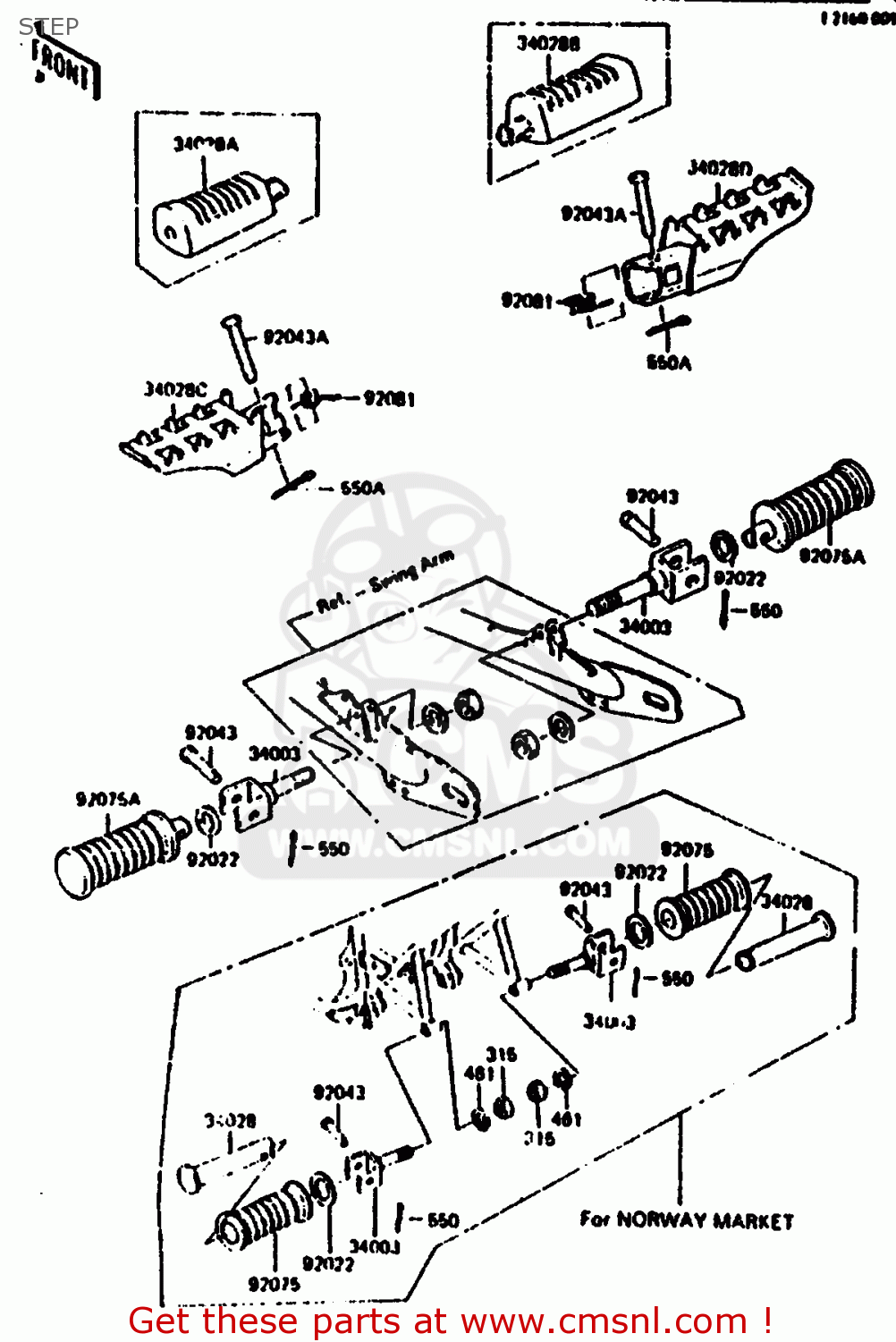

Step diagram KL250C2 1984 USA

prices are in EUR

ref

part #

description

quantity

34003

34029010
ref: 34003

BAR, FOOTREST, GERMAN

€ 11.50

34028C

340281013
ref: 34028C

STEP,FR,LH

€ 38.00

34028D

340281014
ref: 34028D

STEP,FR,RH

€ 36.00

92022

92022199
ref: 92022

WASHER,20X30X2.3

€ 5.00

92043

92043079
ref: 92043

PIN-REAR FOOTREST FIT

€ 5.50

92043A

92043080
ref: 92043A

PIN-FOOTREST BAR FIT

€ 3.50

92075A

92076027
ref: 92075A

DAMPER,STEP,RR

€ 19.00

92081

920811133
ref: 92081

SPRING,FOOTREST STEP

€ 4.00

550

550D2012
ref: 550

PIN,COTTER,2.0X12

€ 0.50

550A

550D2515
ref: 550A

PIN COTTER,295X15

€ 0.50
