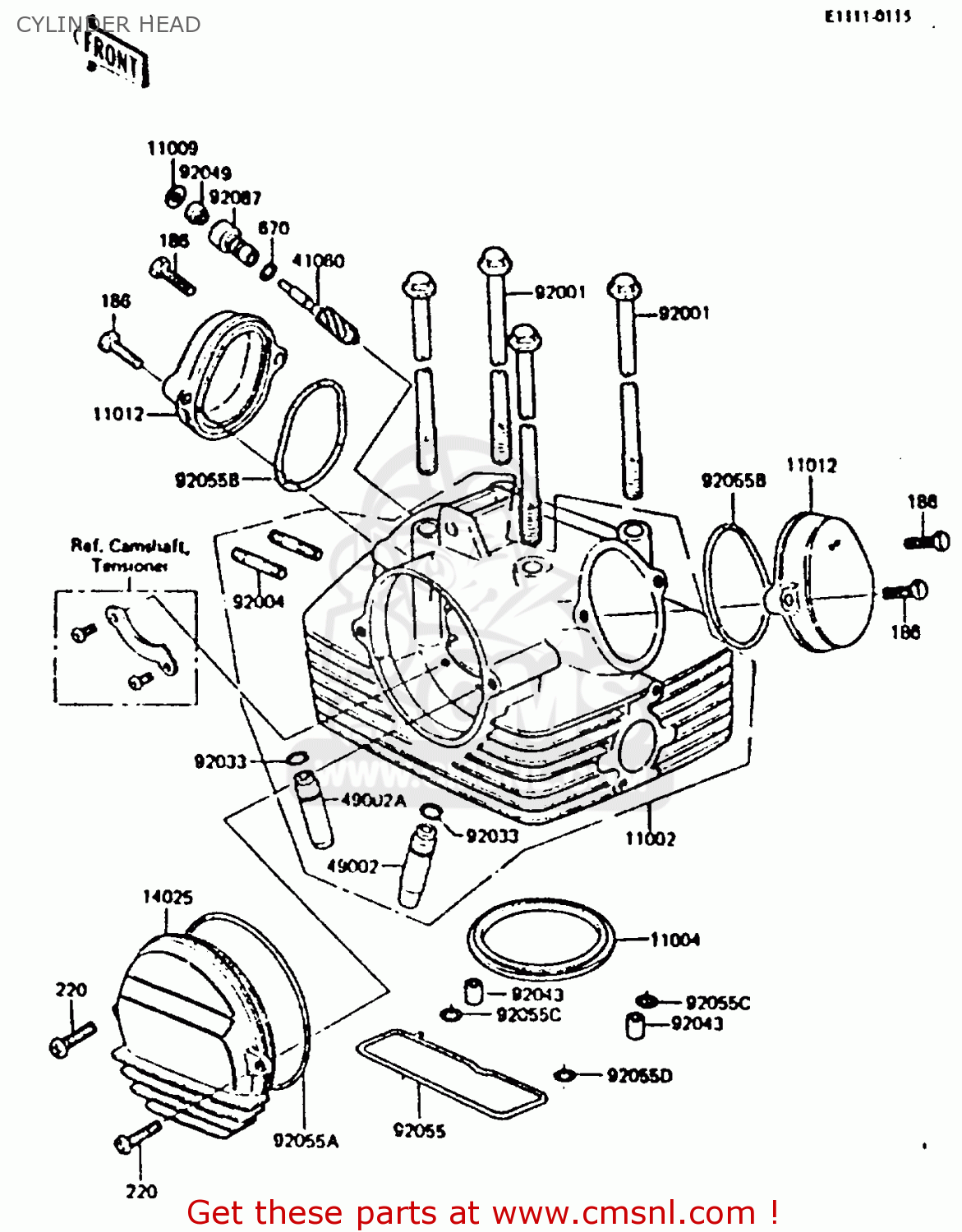

CYLINDER HEAD

ref

part #

description

quantity

11002

110025028
ref: 11002

HEAD-ASSY-CYLINDER

€ 582.00

11004

110041002
ref: 11004

GASKET,CYLINDER HEAD (MCA)

€ 30.00

11009

92065104
ref: 11009

GASKET,TACHO GEAR (NAS)

€ 3.50

11012

110121270
ref: 11012

CAP,ROCKER,F.BLACK

€ 14.50

14025

140251549
ref: 14025

COVER,CAMSHAFT,F.BLAC

€ 40.50

41060

13223012
ref: 41060

GEAR, TACHOMETER

€ 30.50

49002

12013009
ref: 49002

GUIDE-VALVE,INTAKE

€ 18.00

49002A

490021002
ref: 49002A

GUIDE,EXHAUST VALVE

€ 16.00

92001

92003220
ref: 92001

BOLT, 8X233

€ 12.00

92004

920041043
ref: 92004

STUD,8X30

€ 4.00

92033

92036023
ref: 92033

CIRCLIP,VALVE GUIDE

€ 0.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92049

92050075
ref: 92049

OIL SEAL,TACHOMETER

€ 7.50

92055

92055105
ref: 92055

RING-O,CHAIN TUNNEL

€ 23.50

92055A

92055107
ref: 92055A

O RING, 990

€ 7.00

92055B

92055112
ref: 92055B

O RING, 53.5 M/M

€ 4.00

92055C

920551149
ref: 92055C

RING-O,10MM

€ 4.00

92055D

920551150
ref: 92055D

O-RING, 10MM

€ 5.50

92087

92087011
ref: 92087

BUSHING-METER GEAR,TA

€ 12.50

186

186G0625
ref: 186

BOLT-UPSET-WP

€ 0.50

220

220B0616
ref: 220

SCREW-PAN HEAD,6X16

€ 2.50

670

670D1510
ref: 670

O RING,10MM

€ 3.00
