CLUTCH
KL250C2 1984 USA

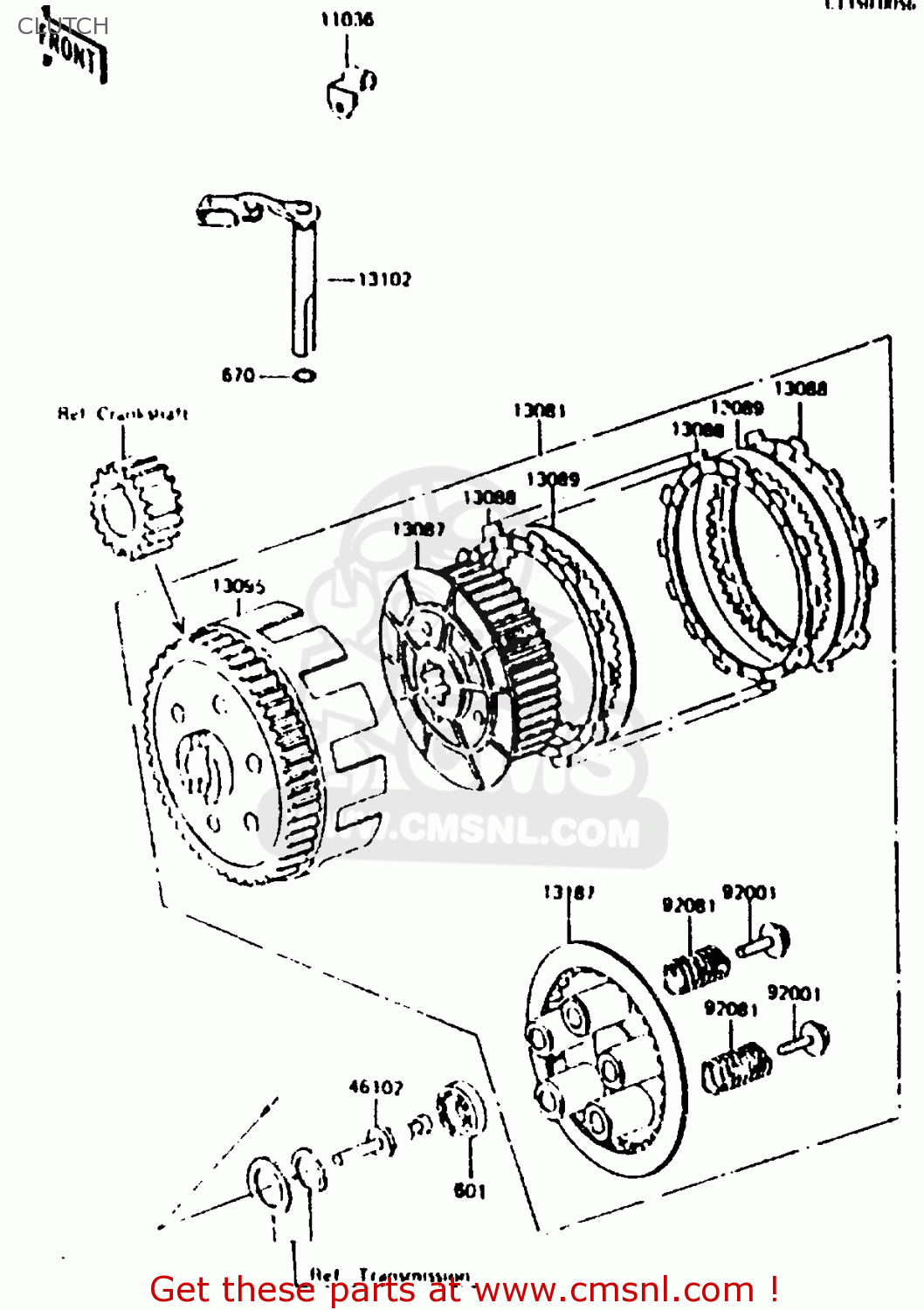

Clutch diagram KL250C2 1984 USA
CLUTCH KL250C2 1984 USA
×
prices are in EUR
ref
part #
description
quantity
11036
110361484
ref: 11036
BRACKET,CLUTCH CABLE
€ 7.50
13081
130811068
ref: 13081
CLUTCH-ASSY
€ 844.00
13087
130871001
ref: 13087
HUB-CLUTCH
€ 91.00
13088
130881008
ref: 13088
PLATE,CLUTCH FRICTION (MCA)
€ 11.50
13089
13089013
ref: 13089
PLATE-CLUTCH,T=1.6 (NAS)
€ 6.50
13095
130951015
ref: 13095
HOUSING-COMP-CLUTCH
€ 349.00
13102
131021011
ref: 13102
RELEASE-COMP-CLUTCH
€ 34.50
13187
131871008
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 50.00
46102
461021033
ref: 46102
ROD,CLUTCH PUSH
€ 16.00
92001
920011576
ref: 92001
BOLT,CLUTCH SPRING,6X
€ 1.00
92081
92081083
ref: 92081
SPRING-CLUTCH
€ 5.50
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
