FRAME

KL250C2 1984 USA

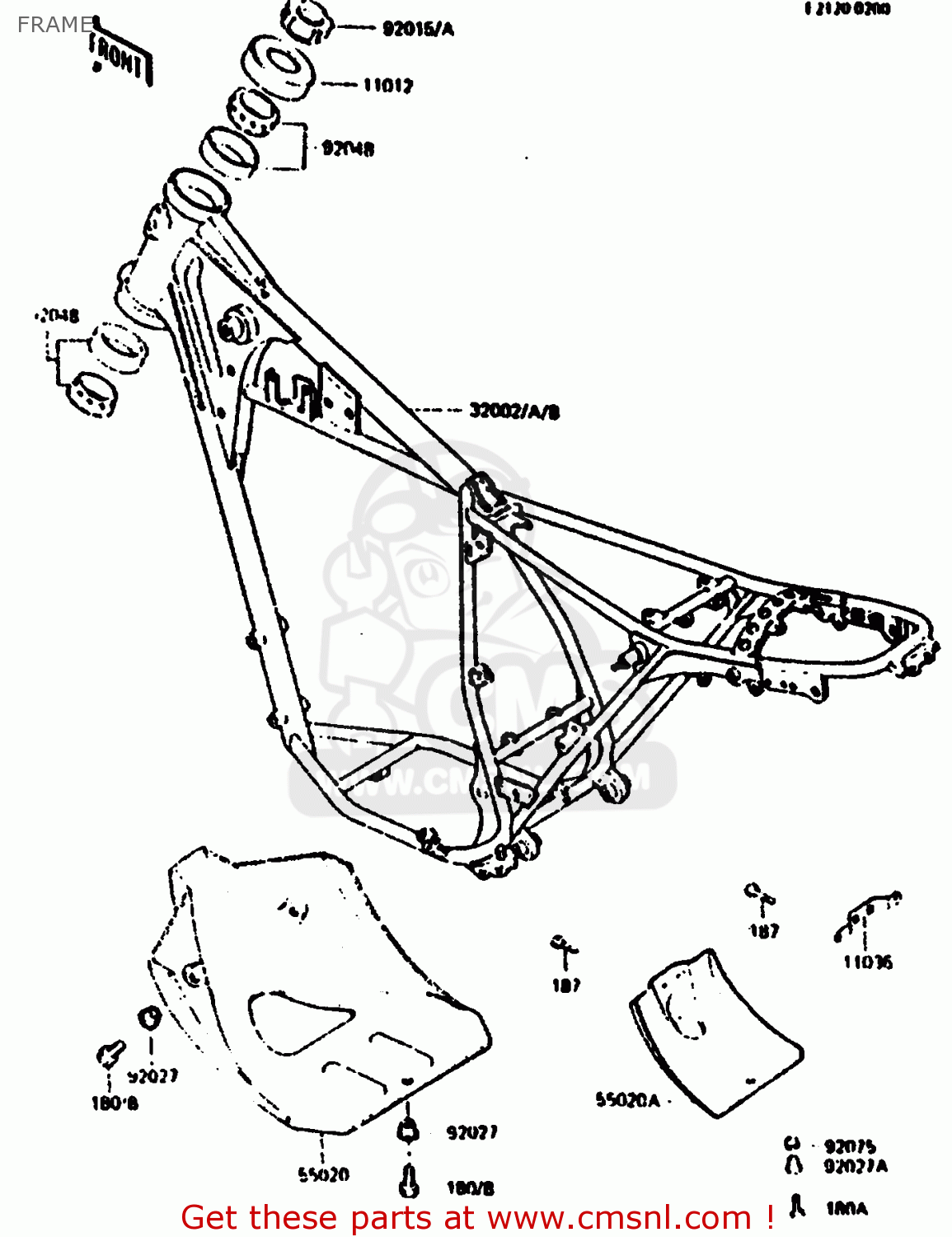

Frame diagram KL250C2 1984 USA

FRAME KL250C2 1984 USA

FRAME KL250C2 1984 USA

prices are in EUR

ref

part #

description

quantity

11012

46098017
ref: 11012

CAP,STEERING STEM

€ 4.00

11036

110361073
ref: 11036

BRACKET-A

€ 7.50

32002B

320021694
ref: 32002B

FRAME-COMP

€ 926.00

55020

550201023
ref: 55020

GUARD,ENGINE

€ 24.00

55020A

550201057
ref: 55020A

ENGINE GUARD OPTION

€ 83.00

92015

920151405
ref: 92015

NUT,25MM,T=12

€ 14.50

92027

92027122
ref: 92027

COLLAR,L=4.7

€ 5.50

92027A

92027153
ref: 92027A

COLLAR

€ 4.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92075

92075121
ref: 92075

DAMPER,FENDER

€ 2.50

180A

180B0620
ref: 180A

BOLT-UPSET-WS

€ 0.50

180B

180X0614
ref: 180B

BOLT-UPSET-WS

€ 1.50

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50
