CAMSHAFT/TENSIONER
KL250C2 1984 USA

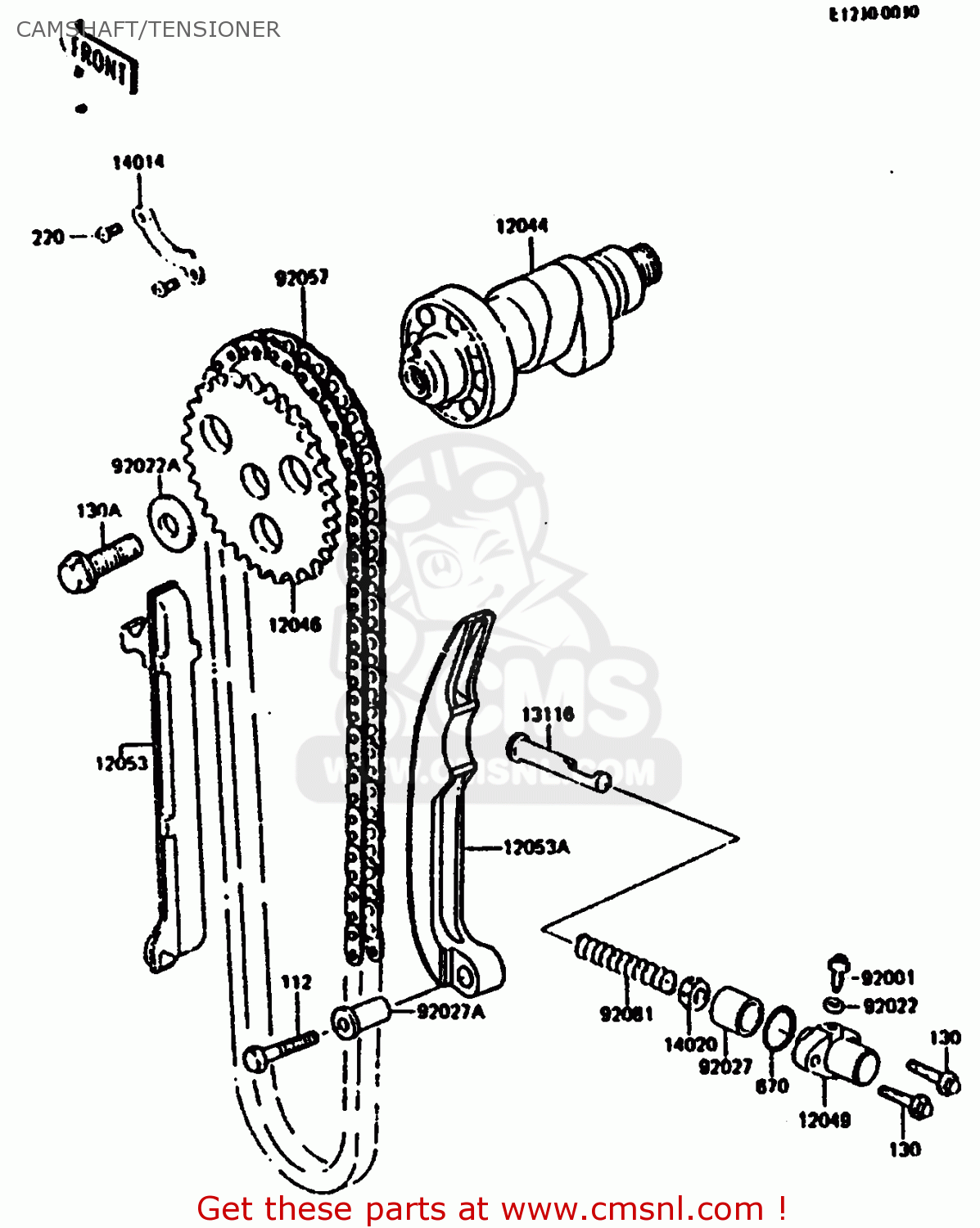

Camshaft/tensioner diagram KL250C2 1984 USA
CAMSHAFT/TENSIONER KL250C2 1984 USA
×
prices are in EUR
ref
part #
description
quantity
12044
120441053
ref: 12044
CAMSHAFT-VALVE
€ 212.50
12046
120461037
ref: 12046
SPROCKET CAM CHAIN 32
€ 52.00
12049
120491008
ref: 12049
TENSIONER,CAM CHAIN
€ 26.00
12053
12053023
ref: 12053
GUIDE-CHAIN,CAM
€ 22.00
12053A
12053024
ref: 12053A
GUIDE-CHAIN,CAM
€ 33.00
13116
131161019
ref: 13116
ROD-PUSH,TENSIONER
€ 10.00
14014
140141030
ref: 14014
PLATE-POSITION
€ 2.50
14020
140201002
ref: 14020
RETAINER,TENSIONER
€ 10.50
92001
920011155
ref: 92001
BOLT,TENSIONER ADJUST
€ 3.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221365
ref: 92022A
WASHER,10X22X3
€ 3.50
92027
920271273
ref: 92027
COLLAR,TENSIONER
€ 20.50
92027A
92027155
ref: 92027A
COLLAR,L=17.6
€ 4.50
92057
21070013
ref: 92057
CHAIN,CAMSHAFT,BF05TX
€ 118.50
92081
920811105
ref: 92081
SPRING,TENSIONER
€ 2.50
112
112G0630
ref: 112
BOLT-UPSET
€ 1.00
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
130A
130G1025
ref: 130A
BOLT-FLANGED 10X25
€ 3.00
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
€ 2.00
670
670B2021
ref: 670
O RING,21MM
€ 3.00
