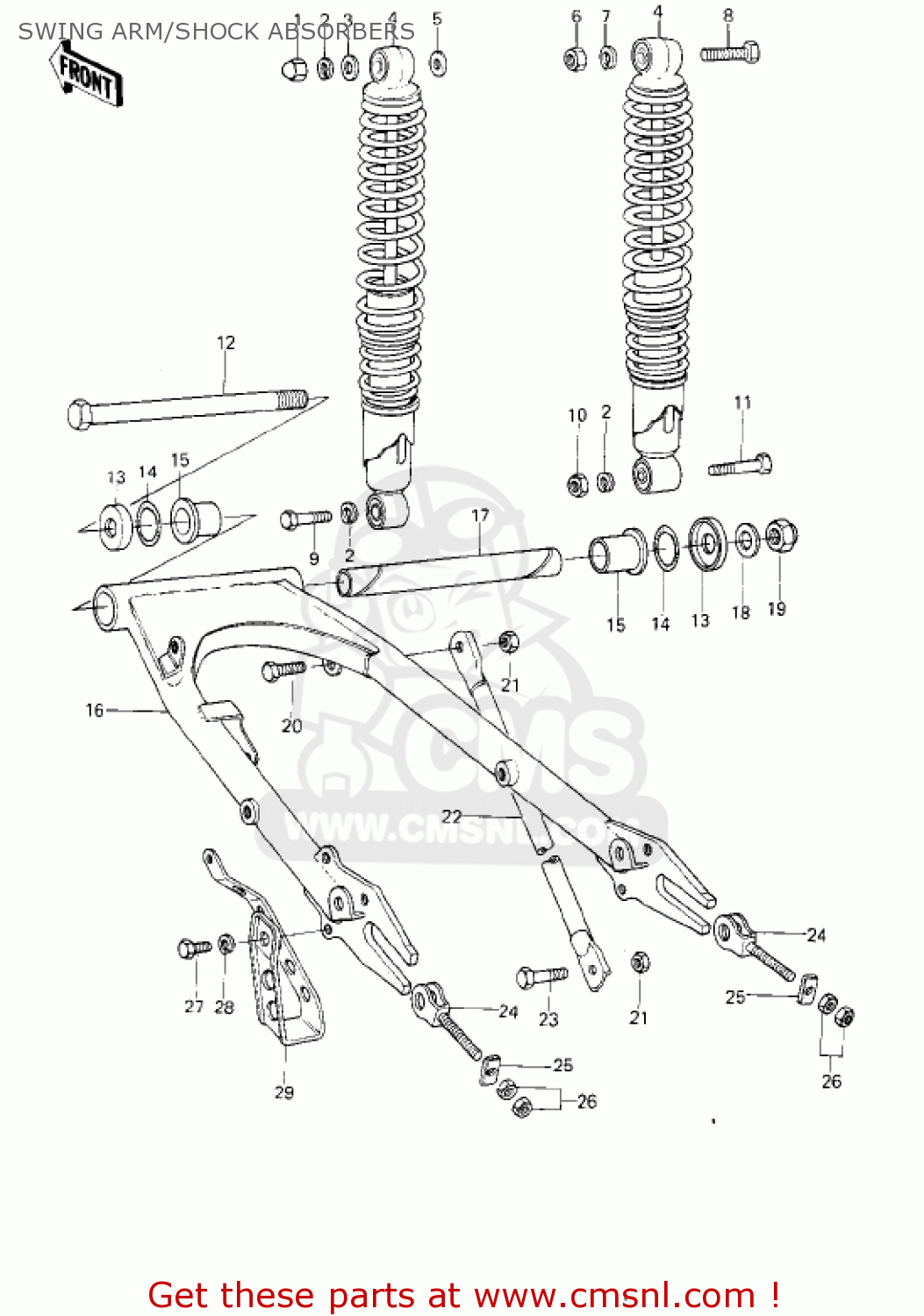

SWING ARM/SHOCK ABSORBERS

ref

part #

description

quantity

1

92020003
ref: 1

NUT-SHOCK ABSORBER

€ 4.00

2

461F1000
ref: 2

WASHER-SPRING,10MM

€ 0.50

3

411B1000
ref: 3

WASHER-PLAIN,10MM

€ 0.50

4

45014122
ref: 4
KE250-B1/B2

SHOCK ABSORBER,REAR

€ 330.00

4

450141016
ref: 4
KE250-B3

SHOCK ABSORBER,REAR

€ 86.00

5

411B1200
ref: 5

WASHER-PLAIN,12MM

€ 0.50

6

315B1200
ref: 6

NUT,12MM

€ 0.50

7

461F1200
ref: 7

WASHER-SPRING,12MM

€ 0.50

8

113B1240
ref: 8

BOLT-HEX HEAD, 12X40

€ 6.00

9

113N1035
ref: 9

BOLT-HEX HEAD,10X35

€ 6.00

10

314B1000
ref: 10

NUT,10MM

€ 0.50

11

113N1045
ref: 11

BOLT HEX HEAD 10X45

€ 6.00

12

33032035
ref: 12

SHAFT-SWING ARM PIVOT

€ 10.50

13

33035005
ref: 13

CAP,SWING ARM

€ 5.50

14

671B2530
ref: 14

O RING,30MM

€ 3.00

15

33033009
ref: 15

BUSHING,SWING ARM

€ 57.00

16

33001088
ref: 16

SWING ARM

€ 488.50

17

420361003
ref: 17

SLEEVE,SWING ARM

€ 30.50

18

410B1200
ref: 18

WASHER-PLAIN-SMALL,12

€ 0.50

19

92019009
ref: 19

NUT,LOCK,12MM

€ 5.00

20

113G1022
ref: 20

BOLT,HEX HEAD,10X22

€ 2.50

21

92019016
ref: 21

NUT,10MM

€ 3.00

22

43007048
ref: 22

ROD-TORQUE,RR

€ 15.50

23

113G1028
ref: 23

BOLT,HEX HEAD,10X28

€ 4.50

24

330401002
ref: 24

CHAIN ADJUSTER

€ 19.00

25

33041005
ref: 25

PLATE,CHAIN ADJUSTER

€ 6.00

26

311B0800
ref: 26

NUT,8MM

€ 0.50

27

110B0814B
ref: 27

BOLT, HEX HEAD 8 X 14

€ 0.00

28

461F0800
ref: 28

WASHER-SPRING,8MM

€ 0.50

29

55020021
ref: 29

CHAIN GUARD

€ 25.00
