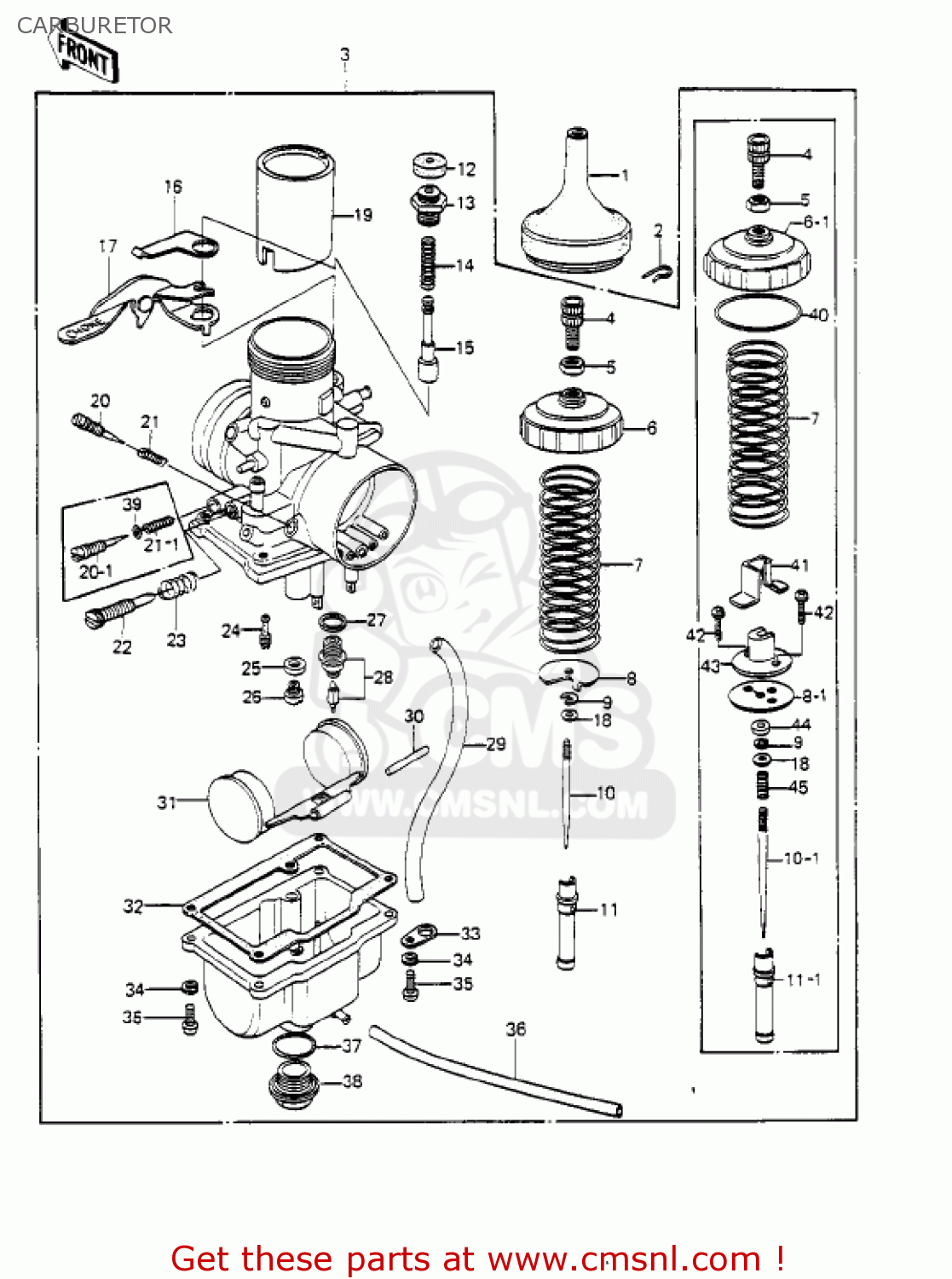

CARBURETOR

ref

part #

description

quantity

1

490061004
ref: 1
KE250-B1/B2

CABLE ADJUSTER BOOT

€ 4.50

1

490061019
ref: 1
KE250-B3

CARBURETOR BOOT

€ 7.00

2

92036018
ref: 2

CIRCLIP

€ 2.50

3

16001280
ref: 3
KE250-B1/B2

CARBURETOR ASSEMBLY

€ 586.50

3

160011087
ref: 3
KE250-B3

CARBURETOR ASSEMBLY

€ 236.50

4

16002014
ref: 4

ADJUSTER-CABLE

€ 8.00

5

16003006
ref: 5

NUT-CABLE ADJUST LOCK

€ 4.50

6

16004018
ref: 6
KE250-B1/B2

CAP-CHAMBER,MIXING

€ 15.00

6-1

160041006
ref: 6-1
KE250-B3

MIXING CHAMBER CAP

€ 16.50

7

920811041
ref: 7

THROTTLE VALVE SPRING

€ 8.50

8

16007021
ref: 8
KE250-B1/B2

SPRING SEAT,THRTL VL

€ 10.50

8-1

160071011
ref: 8-1
KE250-B3

THROTTLE VALVE PLATE

€ 9.00

9

16008010
ref: 9

CLAMP,E-TYPE

€ 5.00

10

160091006
ref: 10
KE250-B1/B2

JET,NEEDLE,5CN9-3

€ 9.00

10-1

160091028
ref: 10-1
KE250-B3

JET,NEEDLE,5CN22-2

€ 21.00

11

160171008
ref: 11
KE250-B1/B2

JET,NEEDLE,#P-2

€ 18.00

11-1

160171032
ref: 11-1
KE250-B3

JET,NEEDLE,#AP-0

€ 18.50

12

16039015
ref: 12

CAP,STARTER PLUNGER

€ 4.50

13

16012016
ref: 13

CAP-STARTER PLUNGER

€ 6.50

14

16013008
ref: 14

SPRING-STARTER PLUNG

€ 4.50

15

160161002
ref: 15

PLUNGER STARTER

€ 23.50

16

131691052
ref: 16

SPRING PLATE STARTER

€ 8.50

17

131681008
ref: 17

STARTER PLUNGER LEVER

€ 29.00

18

920221024
ref: 18

WASHER,THROTTLE VALVE

€ 4.50

19

160251005
ref: 19
KE250-B1/B2

THROTTLE VALVE,CA2.5

€ 41.50

19

160251024
ref: 19
KE250-B3

THROTTLE VALVE,CA2.5

€ 39.00

20

16014006
ref: 20
KE250-B1/B2

SCREW-PILOT AIR

€ 9.00

20-1

160141010
ref: 20-1
KE250-B3

PILOT SCREW

€ 4.00

21

16022007
ref: 21
KE250-B1/B2

SPRING-THR STOP SCREW

€ 5.50

21-1

16022016
ref: 21-1
KE250-B3

SPRING, PILOT SCREW

€ 6.00

22

160211005
ref: 22

SCREW,THROTTLE STOP

€ 12.50

23

16022005
ref: 23

SPRING-THR STOP SCREW

€ 5.50

24

92064023
ref: 24
KE250-B1/B2

JET-PILOT,#35

€ 13.00

24

920641021
ref: 24
KE250-B3

JET,PILOT,#A30

€ 7.00

25

16034001
ref: 25

WASHER-MAIN JET

€ 2.50

26

920631035
ref: 26
KE250-B1/B2

MAIN JET,#97.5R

€ 10.00

26

92063068
ref: 26
OFF-ROAD USE ONLY

MAIN JET,#92.5R

€ 15.50

26

920631031
ref: 26
OFF-ROAD USE ONLY

MAIN JET,#95R

€ 10.00

26

920631033
ref: 26
OFF-ROAD USE ONLY

JET-MAIN,#A100R

€ 17.00

26

920631028
ref: 26
OFF-ROAD USE ONLY

JET-MAIN,#A102.5R

€ 10.00

26

920631033
ref: 26
KE250-B3

JET-MAIN,#A100R

€ 17.00

27

16029004
ref: 27

WASHER-FLOAT VLV SEAT

€ 2.50

28

16030005
ref: 28

VALVE-FLOAT,2.5

€ 43.00

29

920591017
ref: 29

HOSE,OVERFLOW

€ 18.00

30

16032003
ref: 30

FLOAT PIN

€ 4.00

31

16031023
ref: 31

FLOAT

€ 22.50

32

110091031
ref: 32

FLOAT CHAMBER GASKET

€ 7.00

33

131691053
ref: 33

TUBE CLAMP PLATE

€ 2.00

34

461F0400
ref: 34

WASHER-SPRING,4MM

€ 0.50

35

220B0416
ref: 35

SCREW-PAN-CROS

€ 2.00

36

920591755
ref: 36

TUBE,3X5X300

€ 6.00

37

16038009
ref: 37

GASKET,MAIN JET COVER

€ 5.50

38

16049003
ref: 38

COVER-MAIN JET

€ 11.50

39

16038024
ref: 39
KE250-B3

O RING

€ 1.00

40

920551054
ref: 40
KE250-B3

MIXING CHAMBER O-RING

€ 3.50

41

140251113
ref: 41
KE250-B3

COVER,THROTTLE VALVE

€ 6.00

42

16033031
ref: 42
KE250-B3

SCREW, PAN HEAD, 3X14

€ 3.50

43

131591004
ref: 43
KE250-B3

CONNECTOR,THROTTLE

€ 9.00

44

920271103
ref: 44
KE250-B3

RING,JET NEEDLE

€ 4.50

45

920811072
ref: 45
KE250-B3

NEEDLE JET SPRING

€ 2.50
