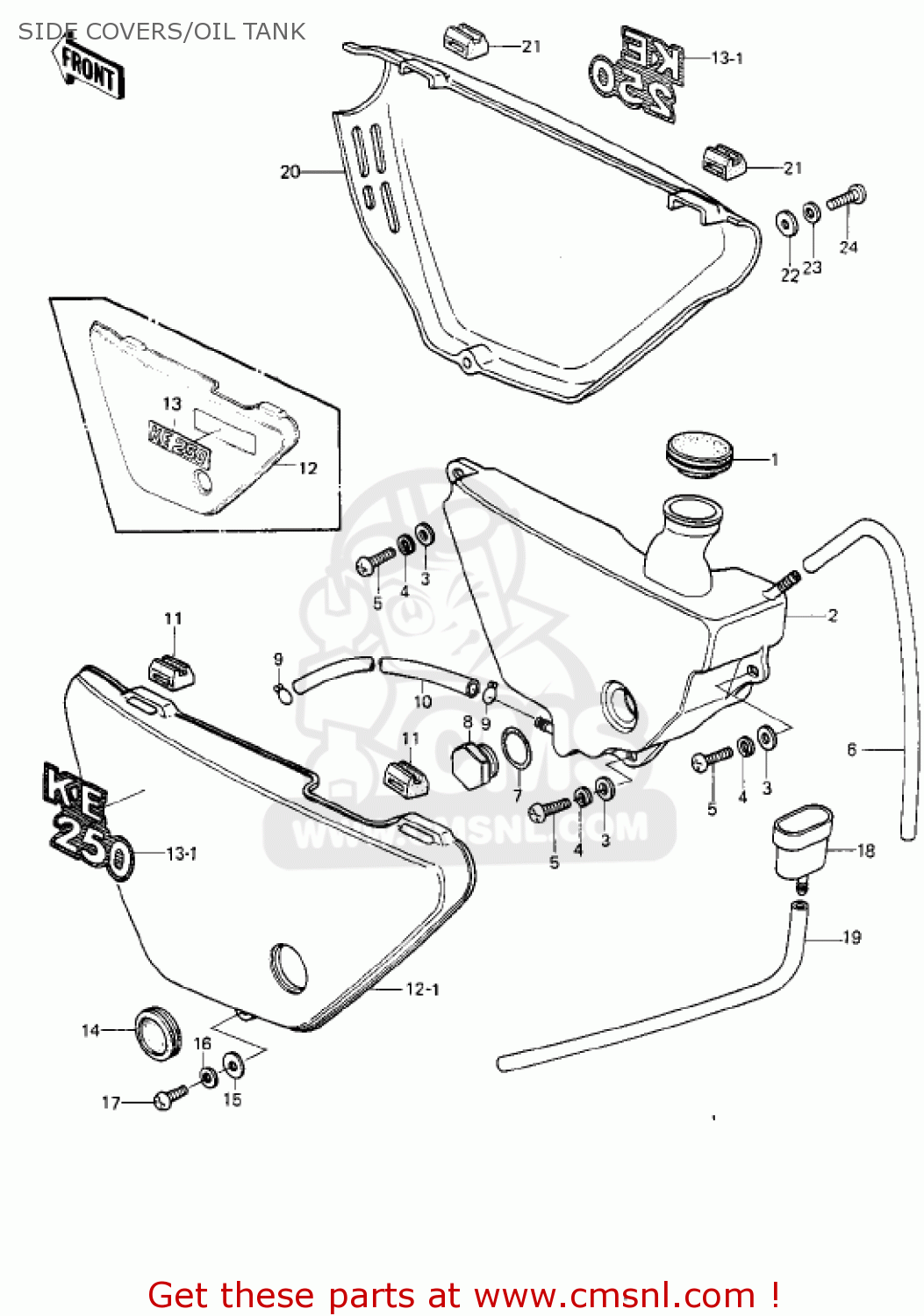

SIDE COVERS/OIL TANK

ref

part #

description

quantity

1

510491004
ref: 1

CAP-OIL,TANK

€ 10.00

2

52001048
ref: 2
KE250-B1/B2

OIL TANK

€ 110.50

2

520011004
ref: 2
KE250-B3

OIL TANK

€ 37.00

3

92022125
ref: 3

WASHER,6.5X20X1.6

€ 1.00

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

220B0616
ref: 5

SCREW-PAN HEAD,6X16

€ 2.50

6

700Q05600
ref: 6

TUBE-VINYL,5X600

€ 1.50

7

92055051
ref: 7

RING-O,20MM

€ 3.00

8

52015002
ref: 8

GAUGE,OIL LEVEL

€ 3.50

9

92037010
ref: 9

CLAMP-FUEL PIPE

€ 2.50

10

92059117
ref: 10

TUBE,VINYL,9X470

€ 5.50

11

92075313
ref: 11

DAMPER,SIDE STAND SW

€ 2.00

12

360010564U
ref: 12
KE250-B1/B2

SIDE COVER,LH,CANDY EMERALD GREEN

€ 179.50

12-1

3600110636L
ref: 12-1
KE250-B3

SIDE COVER,LH,FIRECRACKER RED

€ 55.00

13

56018226
ref: 13
KE250-B1/B2

SIDE COVER EMBLEM

€ 31.50

13-1

560181034
ref: 13-1
KE250-B3

SIDE COVER MARK

€ 7.50

14

92071080
ref: 14

GROMMET,SIDE COVER,RH

€ 3.50

15

92075251
ref: 15

DAMPER,COVER

€ 3.50

16

92022024
ref: 16

WASHER,7X16X1.2

€ 2.50

17

220E0620
ref: 17

SCREW-PAN HEAD,6X20

€ 2.00

18

92059101
ref: 18

TUBE,CONNECTOR

€ 6.00

19

700Q07480
ref: 19

TUBE,VINYL,7X480

€ 2.50

20

3600110646L
ref: 20
KE250-B3

SIDE COVER,RH,FIRECRACKER RED

€ 67.00

21

92075313
ref: 21
KE250-B3

DAMPER,SIDE STAND SW

€ 2.00

22

92075251
ref: 22
KE250-B3

DAMPER,COVER

€ 3.50

23

92022024
ref: 23
KE250-B3

WASHER,7X16X1.2

€ 2.50

24

220E0620
ref: 24
KE250-B3

SCREW-PAN HEAD,6X20

€ 2.00

all assemblies
