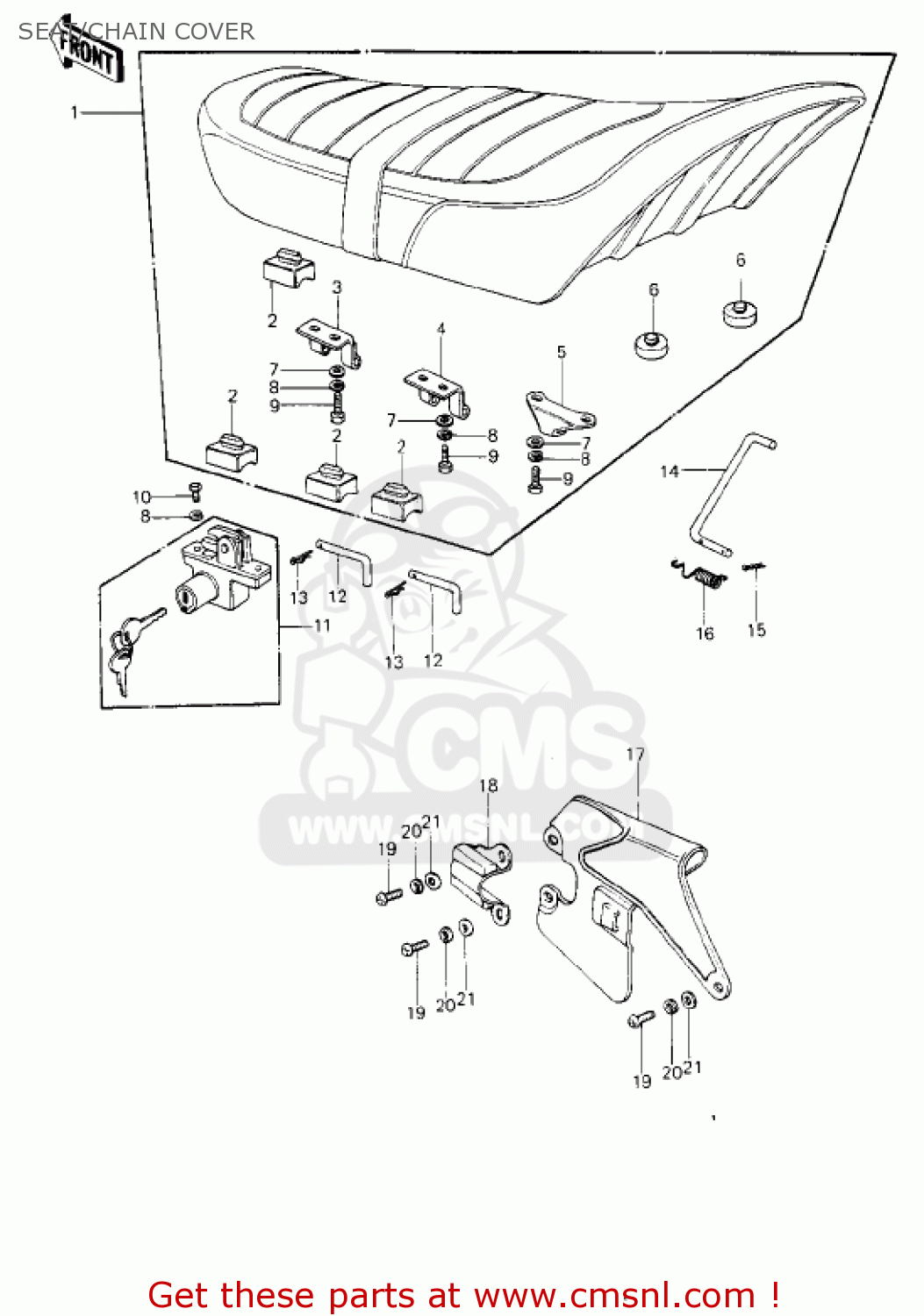

SEAT/CHAIN COVER

ref

part #

description

quantity

1

530021013
ref: 1
KE250-B1/B2

SEAT ASSY,DUAL

€ 280.00

1

530021013
ref: 1
KE250-B3

SEAT ASSY,DUAL

€ 280.00

2

92075216
ref: 2

DAMPER,SEAT

€ 3.00

3

5300901710
ref: 3

HINGE,BLACK

€ 3.50

4

53009018
ref: 4

HINGE,SEAT

€ 6.50

5

53008035
ref: 5

SEAT HOOK

€ 9.50

6

92075023
ref: 6
KE250-B1

DAMPER RUBB-DUAL SEAT

€ 3.00

6

920751043
ref: 6
KE250-B2/B3

SEAT DAMPER,11MM

€ 2.00

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

112B0614
ref: 9

BOLT-UPSET 6X14

€ 2.50

10

112G0616
ref: 10

BOLT UPSET,6X16

€ 1.00

11

270165024
ref: 11

LOCK-ASSY,SEAT

€ 66.50

12

920431007
ref: 12

DUAL SEAT PIVOT PIN

€ 2.00

13

92041003
ref: 13

COTTER

€ 0.50

14

53054009
ref: 14

STAND SEAT

€ 8.00

15

550D2015
ref: 15

PIN-COTTER,2.0X15

€ 1.00

16

53055001
ref: 16

SPRING-SEAT HOOK

€ 8.50

17

36014067
ref: 17

CHAIN CASE

€ 54.50

18

550201003
ref: 18

CHAIN GUARD

€ 12.00

19

220B0616
ref: 19

SCREW-PAN HEAD,6X16

€ 2.50

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

411B0600
ref: 21

WASHER-PLAIN,6MM

€ 0.50

all assemblies
