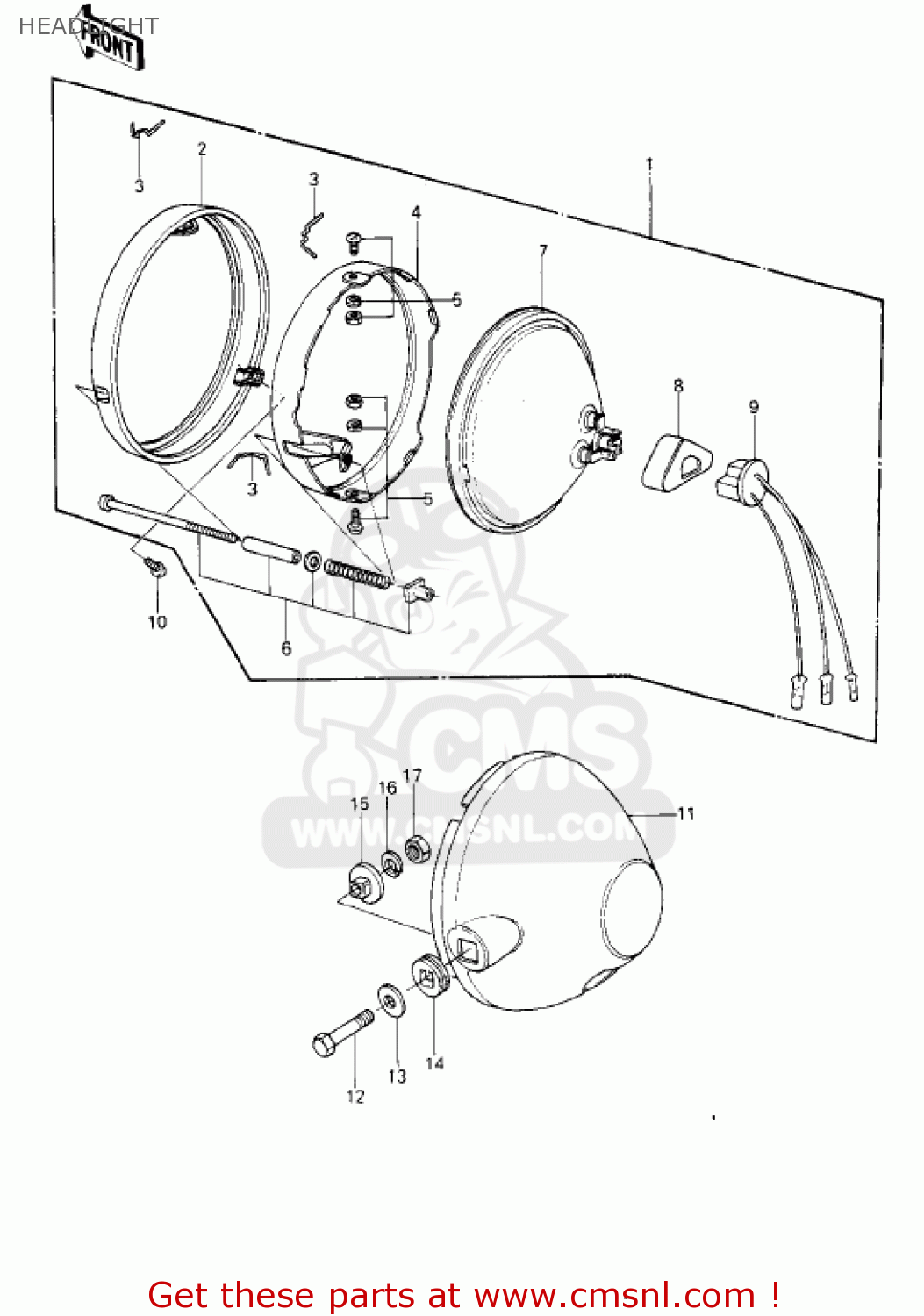

HEADLIGHT

ref

part #

description

quantity

1

23003026
ref: 1

HEADLAMP UNIT

€ 403.50

2

23006042
ref: 2

RIM,HEAD LAMP

€ 43.00

3

23009015
ref: 3

SPRING,HEAD LAMP LENS

€ 3.50

4

23072002
ref: 4

RETAINER,SEALED BEAM

€ 29.50

5

23013007
ref: 5

SCREW ASY,LENS UNIT

€ 3.50

6

230135001
ref: 6

SCREW ASSY,FOCUS AJST

€ 10.50

7

23007073
ref: 7
"6V 35/35W"

SEALED BEAM UNIT

€ 229.50

8

23081001
ref: 8

COVER,HD LAMP SOCKET

€ 6.50

9

23008044
ref: 9

SOCKET-ASSY,HEAD LAMP

€ 15.00

10

23019025
ref: 10

SCREW,PAN HEAD,5X14

€ 1.50

11

2300504921
ref: 11
FLAT BLACK

BODY,HEAD LAMP,BLACK

€ 56.00

12

92007041
ref: 12

BOLT,HEX HEAD,10X30

€ 7.00

13

411D1000
ref: 13

WASHER-PLAIN,10MM

€ 3.00

14

23066011
ref: 14

DAMPER

€ 3.50

15

23052005
ref: 15

COLLAR,L=9.6

€ 8.50

16

461F1000
ref: 16

WASHER-SPRING,10MM

€ 0.50

17

314B1000
ref: 17

NUT,10MM

€ 0.50

all assemblies
