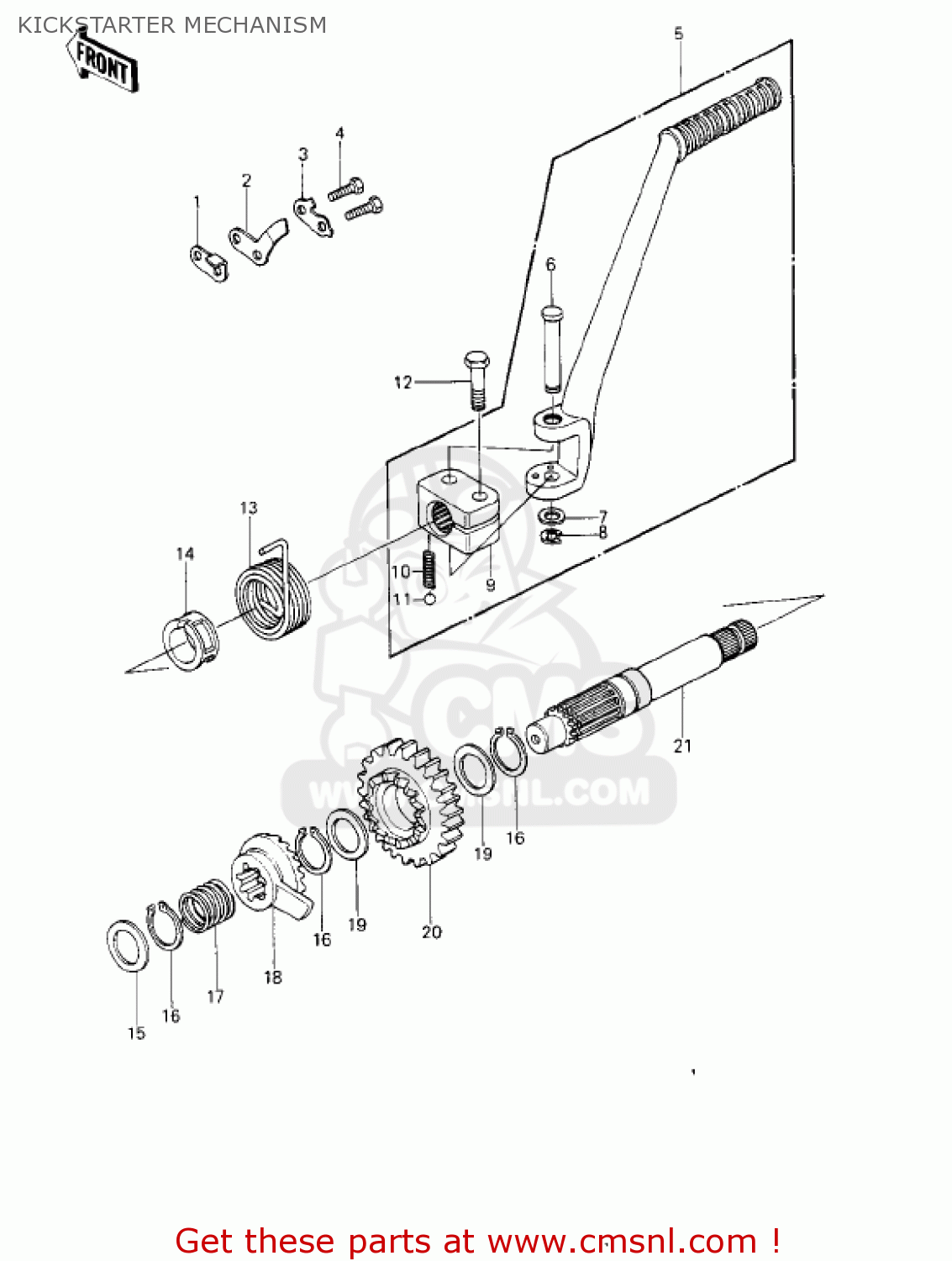

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

13072016
ref: 1

STOPPER,KICKSHAFT

€ 5.50

2

13206011
ref: 2

GUIDE,KICK STOPPER

€ 3.00

3

92031010
ref: 3

WASHER,KICK STOPPER

€ 2.50

4

112G0618
ref: 4

BOLT-UPSET

€ 0.50

5

13058064
ref: 5

KICK PEDAL ASSEMBLY

€ 192.50

6

92043075
ref: 6

PIN,8X41.3

€ 10.00

7

410B0800
ref: 7

WASHER-PLAIN-SMALL,8M

€ 0.50

8

482K5000
ref: 8

CIRCLIP,5MM

€ 2.00

9

13061028
ref: 9

KICK PEDAL BOSS

€ 100.50

10

92081157
ref: 10

SPRING,L=141

€ 15.50

11

600A0800
ref: 11

BALL-STEEL,1/4

€ 0.50

12

114G0828
ref: 12

BOLT-SMALL,8X28

€ 2.50

13

92082003
ref: 13

SPRING-KICKSTARTER

€ 19.00

14

13070007
ref: 14

GUIDE,KICK SPRING

€ 5.50

15

92022252
ref: 15
0.5 T

WASHER

€ 4.00

16

92033026
ref: 16

CIRCLIP

€ 6.00

17

92081097
ref: 17

SPRING

€ 7.50

18

13078007
ref: 18

RATCHET

€ 50.00

19

92022159
ref: 19
0.5 T

WASHER-THRUST,25MM

€ 5.50

20

13068036
ref: 20
29 T

KICK GEAR,29T

€ 67.50

21

130661002
ref: 21

KICK SHAFT

€ 47.50
