TRANSMISSION/CHANGE DRUM(KE100-A
KE100-A9 KE100 1980 CANADA

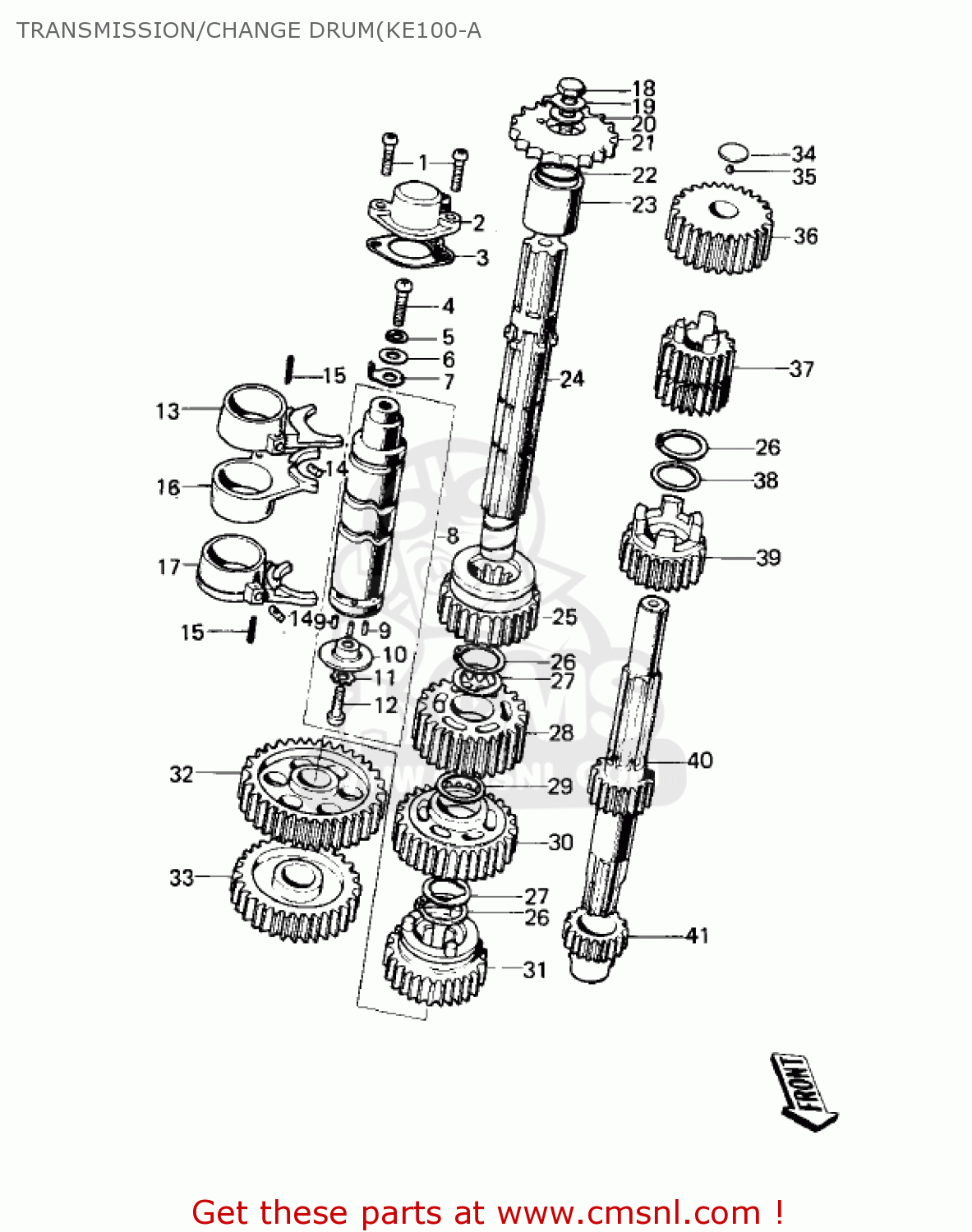

Transmission/change drum(ke100-a diagram KE100-A9 KE100 1980 CANADA
TRANSMISSION/CHANGE DRUM(KE100-A KE100-A9 KE100 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0616
ref: 1
SCREW-PAN HEAD,6X16
€ 2.50
2
131511002
ref: 2
KE100-A5/A6
SWITCH-COMP,NEUTRAL
€ 9.00
2
131511002
ref: 2
KE100-A7/A8
SWITCH-COMP,NEUTRAL
€ 9.00
3
13146002
ref: 3
GASKET,NEUTRAL SWITCH (NAS)
€ 2.50
4
220B0616
ref: 4
SCREW-PAN HEAD,6X16
€ 2.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
410B0600
ref: 6
WASHER-PLAIN-SMALL,6M
€ 0.50
7
210071003
ref: 7
KE100-A5/A6
ROTOR,TOP & NEUTRAL
€ 4.50
7
210071003
ref: 7
KE100-A7/A8
ROTOR,TOP & NEUTRAL
€ 4.50
8
13239005
ref: 8
KE100-A5/A6
DRUM ASSY-GEAR CHANGE
€ 165.00
8
132391002
ref: 8
KE100-A7/A8
DRUM ASSY,GEAR CHANGE
€ 66.00
9
92042014
ref: 9
KE100-A5/A6
PIN-GEAR CHANGE DRUM
€ 0.50
9
92042014
ref: 9
KE100-A7/A8
PIN-GEAR CHANGE DRUM
€ 0.50
10
13142008
ref: 10
PLATE-CHANGE DRUM PIN
€ 4.00
11
464H0600
ref: 11
WASHER-LOCK,6MM
€ 0.50
12
220B0614
ref: 12
SCREW-PAN HEAD,6X14
€ 2.00
13
13140009
ref: 13
FORK-SELECTOR,3RD
€ 46.50
14
92043005
ref: 14
PIN,DOWEL,8X15
€ 4.50
15
550D3020
ref: 15
PIN-COTTER,3.0X20
€ 2.00
16
13140017
ref: 16
FORK-SELECTOR,4TH-TOP
€ 120.00
17
13140010
ref: 17
FORK-SHIFT,LOW&2ND
€ 81.50
18
115G0816
ref: 18
BOLT-HEX,HEAD 8X16
€ 0.50
19
92030012
ref: 19
WASHER,CLAW,8X22X1.2
€ 3.50
20
92022266
ref: 20
WASHER,T=2.3
€ 3.50
21
13144054
ref: 21
STD
SPROCKET-OUTPUT,15T
€ 30.00
21
13144053
ref: 21
SPROCKET-OUTPUT,13T
€ 30.00
21
131441058
ref: 21
SPROCKET-OUTPUT,14T
€ 20.00
22
92055022
ref: 22
'O' RING
€ 4.00
23
92027179
ref: 23
COLLAR,ENG SPROCKET
€ 12.50
23
920271595
ref: 23
COLLAR,ENGINE SPROCKE
€ 12.50
24
13128021
ref: 24
SHAFT-OUTPUT
€ 160.50
25
13137012
ref: 25
TOP GEAR-OUTPUT SHAFT
€ 28.50
26
92033014
ref: 26
RING-SNAP,16MM
€ 3.50
27
92024030
ref: 27
WASHER,TOOTHED,18.5X2
€ 4.00
28
13133005
ref: 28
GEAR,OUTPUT 3RD,26T
€ 46.50
29
92022146
ref: 29
WASHER,THRUST,18.5X23
€ 4.50
30
13131008
ref: 30
GEAR,OUTPUT 2ND,30T
€ 40.50
31
131291708
ref: 31
GEAR,OUTPUT 4TH,24T
€ 70.00
32
13129010
ref: 32
GEAR,OUTPUT LOW,35T
€ 66.50
33
13073004
ref: 33
GEAR-SPUR,KICKSTARTER
€ 55.50
34
92022115
ref: 34
WASHER,THRUST
€ 2.50
35
600A0700
ref: 35
BALL-STEEL,7/32
€ 2.50
36
131291927
ref: 36
GEAR, INPUT TOP 24T
€ 25.00
37
131291052
ref: 37
KE100-A5/A6
GEAR,INPUT 2ND&3RD,17
€ 55.00
37
131291052
ref: 37
KE100-A7/A8
GEAR,INPUT 2ND&3RD,17
€ 55.00
38
92022118
ref: 38
WASHER,18.5X23X1.2
€ 3.00
39
131291053
ref: 39
KE100-A5/A6
GEAR,INPUT 4TH,16T
€ 23.50
39
131291053
ref: 39
KE100-A7/A8
GEAR,INPUT 4TH,16T
€ 23.50
40
13127032
ref: 40
SHAFT,DRIVE
€ 76.00
41
13075004
ref: 41
GEAR-SPUR,KICKSTARTER
€ 40.50
