MUFFLER
KE100-A9 KE100 1980 CANADA

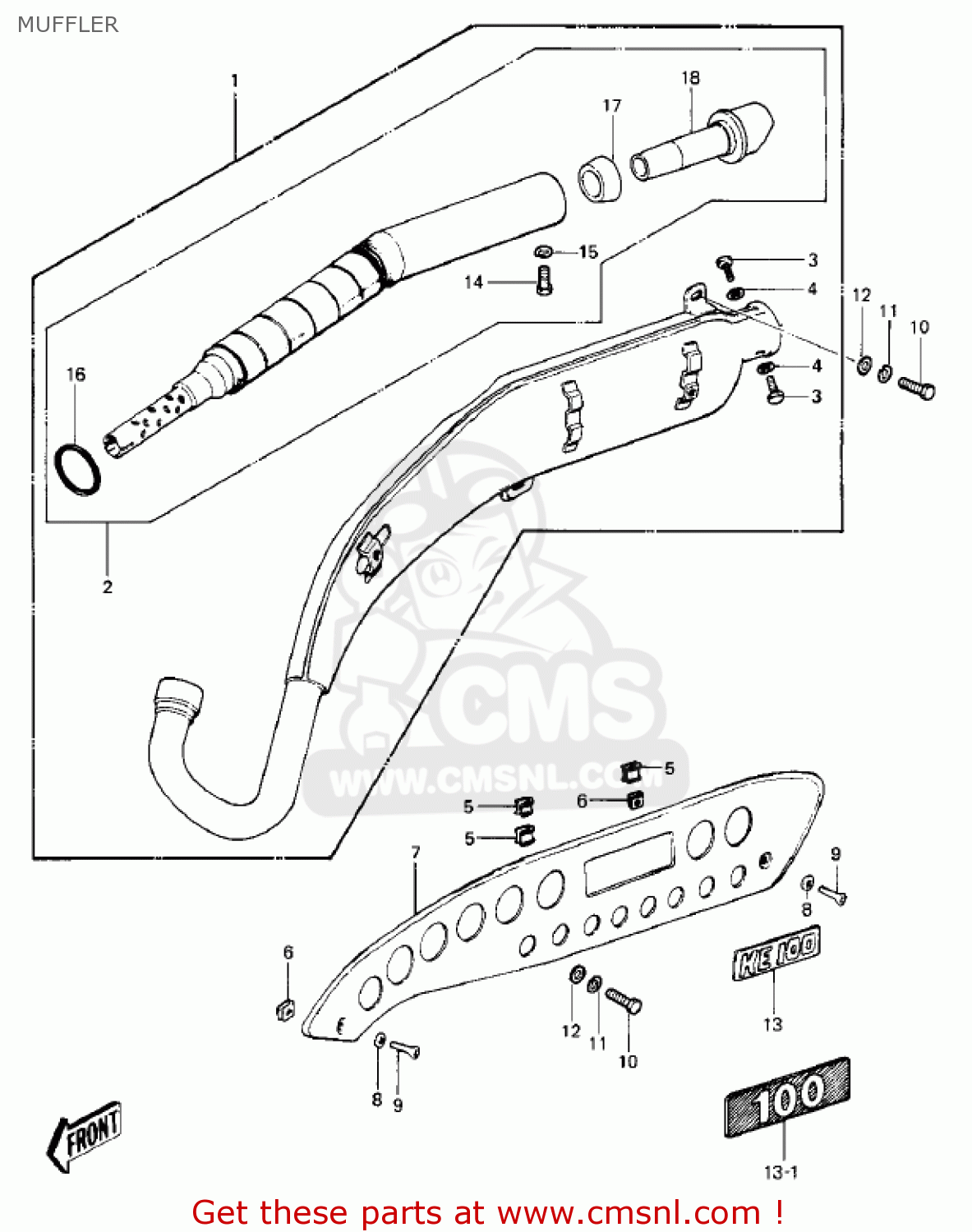

Muffler diagram KE100-A9 KE100 1980 CANADA
MUFFLER KE100-A9 KE100 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
180011603
ref: 1
KE100-A5/A6/A7/A8
MUFFLER
€ 472.50
1
180011603
ref: 1
KE100-A9/A10
MUFFLER
€ 472.50
2
18033070
ref: 2
BAFFLE-PIPE MUFFLER
€ 106.50
3
112B0614
ref: 3
BOLT-UPSET 6X14
€ 2.50
4
92022077
ref: 4
WASHER,6.1X12X1
€ 0.50
5
18065007
ref: 5
INSULATOR,HEAT
€ 3.00
6
18065009
ref: 6
INSULATOR,HEAT
€ 3.00
7
18057047
ref: 7
COVER,MUFFLER
€ 35.50
8
463H0600
ref: 8
WASHER-LOCK,6MM
€ 0.50
9
220E0612
ref: 9
SCREW-PAN HEAD,6X12
€ 3.00
10
115G0816
ref: 10
BOLT-HEX,HEAD 8X16
€ 0.50
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
411B0800
ref: 12
WASHER-PLAIN,8MM
€ 0.50
13
56018222
ref: 13
KE100-A5/A6/A7
EMBLEM,SIDE COVER
€ 9.00
13-1
560181039
ref: 13-1
KE100-A8/A9/A10
EMBLEM,MUFFLER COVER
€ 10.00
14
112B0614
ref: 14
BOLT-UPSET 6X14
€ 2.50
15
464H0600
ref: 15
WASHER-LOCK,6MM
€ 0.50
16
920931031
ref: 16
'0' RING
€ 5.50
17
920931009
ref: 17
BUSHING,RUBBER
€ 6.00
18
591561005
ref: 18
ARRESTOR CAP
€ 27.50
