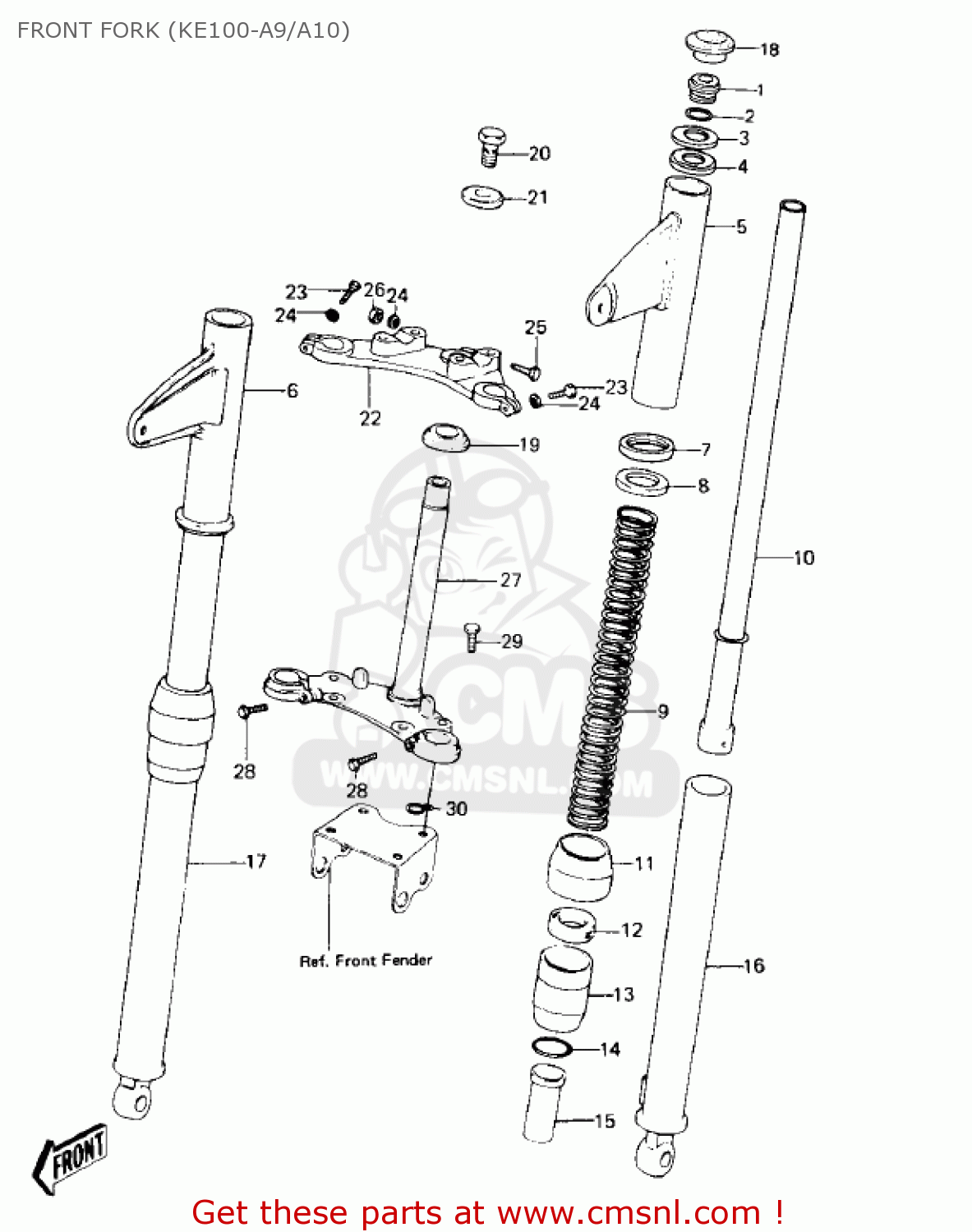

FRONT FORK (KE100-A9/A10)

ref

part #

description

quantity

?

440011159
ref: ?
Includes items 1 - 2

FRONT FORK

€ 380.00

1

110121126
ref: 1

CAP,SPRING

€ 13.00

2

920551087
ref: 2

RING-O

€ 4.00

3

44045037
ref: 3

GASKET FORK COVER (NAS)

€ 1.00

4

44043046
ref: 4

WASHER-FORK COVER

€ 7.00

5

4403307821
ref: 5

COVER,L.H FORK,BLACK

€ 23.50

6

4403407821
ref: 6

COVER,R.H FORK,BLACK

€ 26.00

7

920221197
ref: 7

GUIDE,FORK COVER

€ 3.00

8

44045012
ref: 8

GASKET,FORK COVER (NAS)

€ 3.00

9

440261057
ref: 9

SPRING,FORK

€ 14.50

10

390931026
ref: 10

TUBE,FORK INNER

€ 97.00

11

44010006
ref: 11

SEAL,FORK

€ 24.00

12

920491049
ref: 12

SEAL-OIL

€ 14.50

13

44007007
ref: 13

NUT-FORK OUTER TUBE

€ 41.50

14

44046012
ref: 14

RING-O,OUTER PIPE

€ 4.00

15

44015013
ref: 15

GUIDE-FORK INNER TUBE

€ 19.50

16

390931025
ref: 16

FORK OUTER TUBE,LH

€ 92.00

17

390931024
ref: 17

FORK OUTER TUBE,RH

€ 92.00

18

110121127
ref: 18

CAP,FORK

€ 4.50

19

92047004
ref: 19

CONE-LOWER BEARING

€ 13.00

20

44041007
ref: 20

BOLT-STRNG STEM HEAD

€ 11.50

21

44043016
ref: 21

WASHER,FORK UPPER HOL

€ 7.00

22

44039047
ref: 22

HOLDER-FORK UPPER

€ 142.50

23

114G0836
ref: 23

BOLT-SMALL,8X36

€ 3.00

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

114G0850
ref: 25

BOLT-HEX HEAD,8X50

€ 3.00

26

317B0800
ref: 26

NUT,8M/M

€ 0.50

27

44037052
ref: 27

HOLDER-FORK UNDER

€ 151.50

28

44041010
ref: 28

BOLT-PINCH

€ 5.00

29

112G0610
ref: 29

BOLT,6X10

€ 0.50

30

92037046
ref: 30

CLAMP,CABLE

€ 3.00
