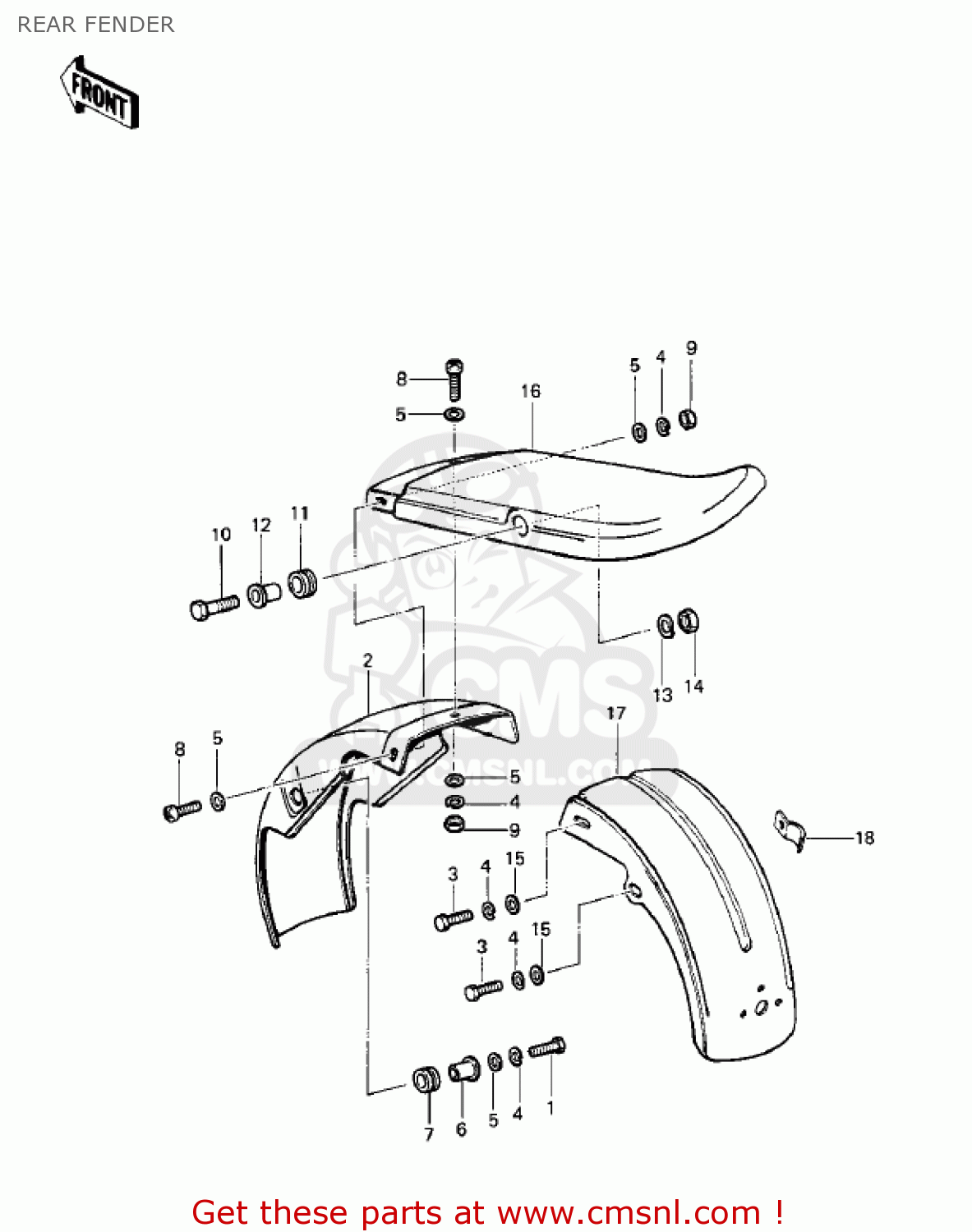

REAR FENDER

ref

part #

description

quantity

1

112G0616
ref: 1

BOLT UPSET,6X16

€ 1.00

2

35022064
ref: 2

FENDER-COMP-REAR,FR

€ 27.00

3

112B0614
ref: 3

BOLT-UPSET 6X14

€ 2.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

92022125
ref: 5

WASHER,6.5X20X1.6

€ 1.00

6

92027103
ref: 6

COLLAR

€ 2.50

7

92075105
ref: 7

DAMPER

€ 2.50

8

220B0614
ref: 8

SCREW-PAN HEAD,6X14

€ 2.00

9

312B0600
ref: 9

NUT,6MM

€ 0.50

10

92007029
ref: 10

BOLT-HEX HEAD,10X46

€ 6.00

11

92075104
ref: 11

DAMPER

€ 2.50

12

92027147
ref: 12

COLLAR

€ 9.00

13

461F1000
ref: 13

WASHER-SPRING,10MM

€ 0.50

14

314B1000
ref: 14

NUT,10MM

€ 0.50

15

411B0600
ref: 15

WASHER-PLAIN,6MM

€ 0.50

16

530430094C
ref: 16
KE100-A5

REAR FENDER COVER,CANDYTONE BLUE

€ 66.00

16

530430094D
ref: 16
KE100-A5

REAR FENDER COVER,CANDY COPPER

€ 54.50

16

530430096Y
ref: 16
KE100-A6

REAR FENDER COVER,GRAY

€ 56.50

16

530430096V
ref: 16
KE100-A7

COVER,RR FENDER,WHITE

€ 17.50

16

530430096P
ref: 16
KE100-A8

COVER,RR FEN,S.GREEN

€ 25.50

16

530430096R
ref: 16
KE100-A8

COVER,RR FEN,S.YELLOW

€ 20.50

16

530430096J
ref: 16
KE100-A9 (CANADA)

COVER,REAR FENDER,GRN

€ 23.50

16

530430096L
ref: 16
KE100-A9/A10

COVER,REAR FENDER,RED

€ 29.50

16

530430096K
ref: 16
KE100-A9/10

REAR FENDER COVER,BRILLIANT BLUE

€ 77.50

17

35022065
ref: 17

FENDER-REAR

€ 43.50

18

92037020
ref: 18

CLAMP-CABLE

€ 1.50

all assemblies
