CARBURETOR (KE100-A5/A6/A7/A8)
KE100-A9 KE100 1980 CANADA

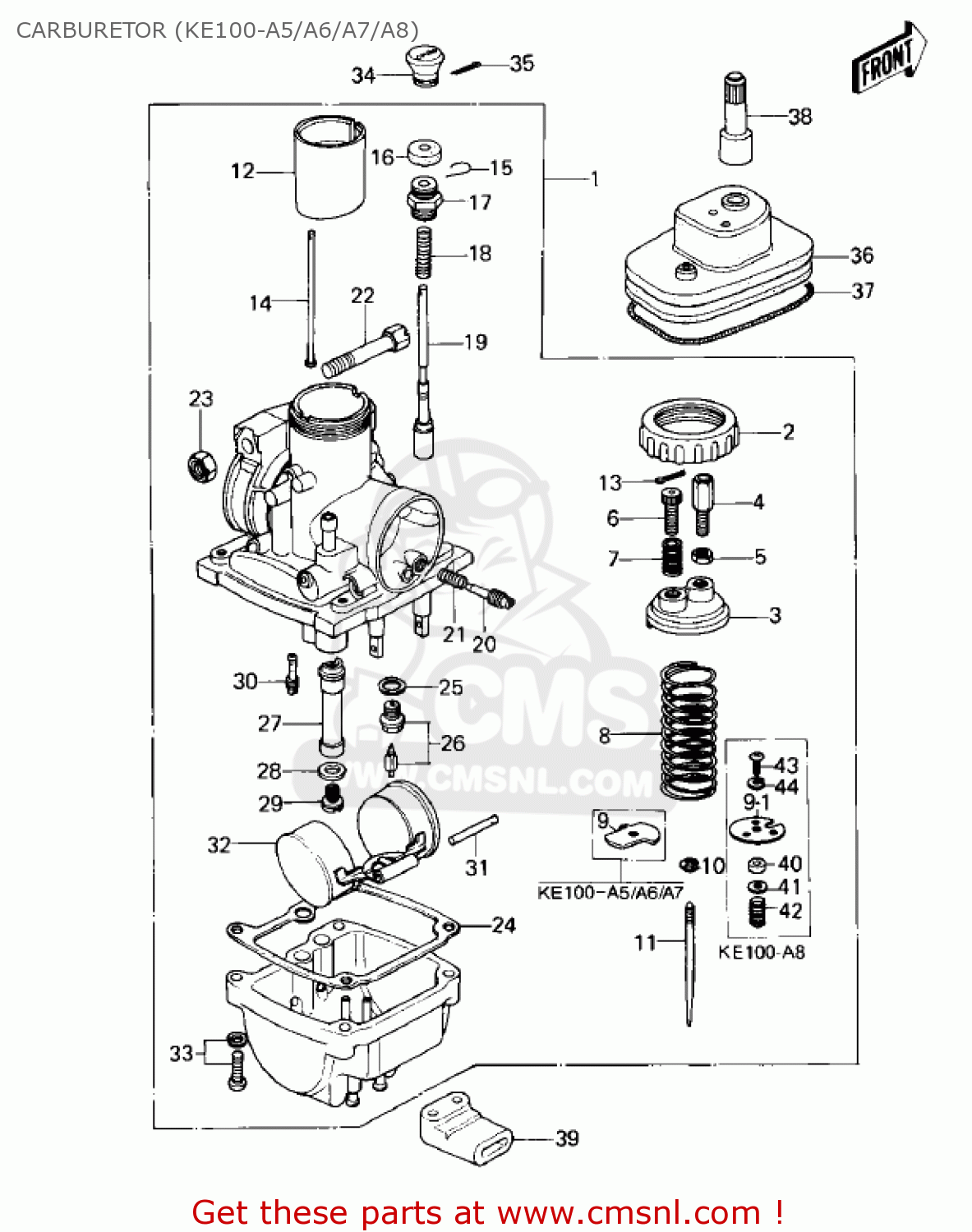

Carburetor (ke100-a5/a6/a7/a8) diagram KE100-A9 KE100 1980 CANADA
CARBURETOR (KE100-A5/A6/A7/A8) KE100-A9 KE100 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16001230
ref: 1
KE100-A5
CARBURETOR ASSY
€ 184.50
1
16001234
ref: 1
KE100-A6/A7
CARBURETOR ASSY
€ 144.50
1
160011042
ref: 1
KE100-A8
CARBURETOR ASSEMBLY
€ 145.50
2
16004010
ref: 2
CAP-CHAMBER,MIXING
€ 13.50
3
16005005
ref: 3
TOP-CHAMBER,MIXING
€ 12.50
4
16002017
ref: 4
ADJUSTER-CABLE
€ 8.00
5
16003004
ref: 5
NUT-CABLE ADJUST LOCK
€ 4.50
6
16021002
ref: 6
SCREW-THROTTLE STOP
€ 12.00
7
16022005
ref: 7
SPRING-THR STOP SCREW
€ 5.50
8
16006013
ref: 8
SPRING-THROTTLE VALVE
€ 10.00
9
16007020
ref: 9
KE100-A5/A6/A7
SEAT-SPRING,THROTTLE
€ 7.00
9-1
131691105
ref: 9-1
KE100-A8
THROTTLE VALVE SPRING SEAT
€ 3.00
10
16008010
ref: 10
CLAMP,E-TYPE
€ 5.00
11
16009059
ref: 11
KE100-A5/A6/A7
NEEDLE-JET,4EJ7
€ 26.50
11
160091012
ref: 11
KE100-A8
JET,NEEDLE,4EJ12
€ 9.50
12
16025057
ref: 12
KE100-A5/A6/A7
VALVE-THROTTLE,CA2.0
€ 80.50
12
160251013
ref: 12
KE100-A8
THROTTLE VALVE,CA2.0
€ 69.50
13
550D1210
ref: 13
PIN-COTTER,1.2X10
€ 1.50
14
16024012
ref: 14
ROD,THROTTLE VALVE ST
€ 5.50
15
920371077
ref: 15
KE100-A5/A6/A7
CLAMP
€ 3.00
15
920371077
ref: 15
KE100-A8
CLAMP
€ 3.00
16
16036012
ref: 16
BOOT,STARTER PLUNGER
€ 4.50
17
16012021
ref: 17
CAP-STARTER PLUNGER
€ 11.50
18
16013010
ref: 18
SPRING,STARTER PLUNGR
€ 3.50
19
16016012
ref: 19
PLUNGER,STARTER
€ 28.00
20
16014002
ref: 20
SCREW-PILOT AIR
€ 11.00
21
16022007
ref: 21
SPRING-THR STOP SCREW
€ 5.50
22
16010004
ref: 22
SCREW-CLAMP
€ 3.50
23
311B0600
ref: 23
KE100-A5/A6/A7
NUT,6MM
€ 0.50
23
920151026
ref: 23
KE100-A8
NUT, 6M/M
€ 4.00
24
16019021
ref: 24
GASKET,FLOAT CHAMBER (NAS)
€ 13.00
25
16029002
ref: 25
WASHER-VALVE SEAT
€ 2.50
26
16030001
ref: 26
VALVE-FLOAT,#2.0
€ 40.50
27
16017068
ref: 27
KE100-A5/A6/A7
JET-NEEDLE,O-2
€ 37.50
27
160171031
ref: 27
KE100-A8
JET,NEEDLE,#0-2
€ 15.50
28
16034001
ref: 28
WASHER-MAIN JET
€ 2.50
29
92063109
ref: 29
KE100-A5/A6/A7
JET-MAIN,#75R
€ 10.50
29
920631032
ref: 29
KE100-A8
JET-MAIN,#A77.5R
€ 10.00
29
920631012
ref: 29
JET-MAIN,#70R
€ 8.00
29
92063108
ref: 29
JET-MAIN,#72.5R
€ 9.00
29
920631030
ref: 29
JET-MAIN,#A80R
€ 11.00
30
92064020
ref: 30
KE100-A5/A6/A7
JET-PILOT,#17.5
€ 13.50
30
920641018
ref: 30
KE100-A8
JET-PILOT,#A15
€ 13.00
31
16032003
ref: 31
FLOAT PIN
€ 4.00
32
16031015
ref: 32
FLOAT
€ 40.50
33
16033012
ref: 33
SCREW-FLOAT CHAMBER
€ 1.00
34
92077022
ref: 34
KNOB,CARBURETOR
€ 7.00
35
550D1615
ref: 35
PIN-COTTER,1.6X15
€ 1.50
36
14038035
ref: 36
BOOT,CARBURETOR
€ 9.50
37
92081047
ref: 37
SPRING,COIL
€ 7.50
38
16147001
ref: 38
PLUG,12X40
€ 3.00
39
16136007
ref: 39
KE100-A8
GROMMET,OVERFLOW PIPE
€ 5.50
40
920271103
ref: 40
KE100-A8
RING,JET NEEDLE
€ 4.50
41
920221024
ref: 41
KE100-A8
WASHER,THROTTLE VALVE
€ 4.50
42
920811072
ref: 42
KE100-A8
NEEDLE JET SPRING
€ 2.50
43
220B0308
ref: 43
KE100-A8
SCREW-PAN-CROS
€ 0.50
44
461F0300
ref: 44
KE100-A8
WASHER-SPRING,3MM
€ 0.50
