IGNITION/GENERATOR/REGULATOR
KE100-A9 KE100 1980 CANADA

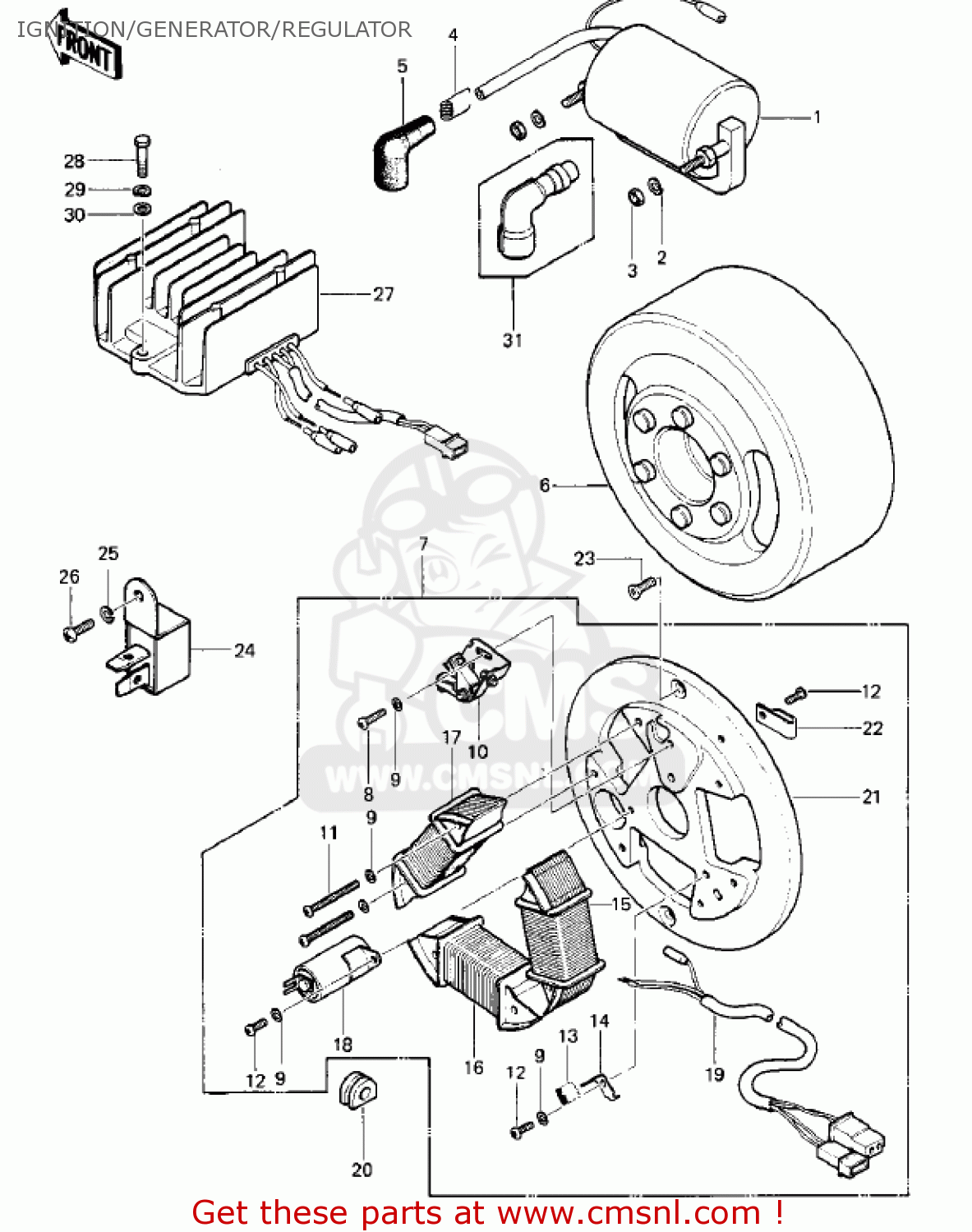

Ignition/generator/regulator diagram KE100-A9 KE100 1980 CANADA
IGNITION/GENERATOR/REGULATOR KE100-A9 KE100 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
211211047
ref: 1
COIL-IGNITION
€ 115.50
2
461F0600
ref: 2
KE100-A5/A6/A7
WASHER-SPRING,6MM
€ 0.50
3
311B0600
ref: 3
KE100-A5/A6/A7
NUT,6MM
€ 0.50
3
92019008
ref: 3
KE100-A8/A9
NUT-LOCK,6MM
€ 3.00
3
920151078
ref: 3
KE100-A10
NUT,6M/M
€ 1.50
4
92101001
ref: 4
SPRING-SPARK PLUG CAP
€ 1.50
5
21130009
ref: 5
CAP-SPARK PLUG
€ 15.00
6
21050016
ref: 6
KE100-A5/A6/A7
FLYWHEEL
€ 354.00
6
210501009
ref: 6
KE100-A8/A9/A10
MAGNETO FLYWHEEL
€ 224.00
7
21003025
ref: 7
KE100-A5/A6/A7
STATOR ASSY
€ 226.00
7
210031014
ref: 7
KE100-A8/A9/A10
STATOR
€ 203.50
8
220B0412
ref: 8
SCREW-PAN CROS 4X12
€ 0.50
9
461F0400
ref: 9
WASHER-SPRING,4MM
€ 0.50
10
21008006
ref: 10
BREAKER ASSY-CONTACT
€ 33.50
11
220E0430
ref: 11
SCREW-PAN-CROS
€ 2.50
12
220B0406
ref: 12
SCREW-PAN-CROS,4X6
€ 2.50
13
21019005
ref: 13
BRUSH,OIL
€ 3.00
14
21038002
ref: 14
HOLDER,OIL FELT
€ 2.00
15
210471007
ref: 15
KE100-A5/A6
COIL,LIGHTING
€ 58.00
15
210471007
ref: 15
KE100-A7
COIL,LIGHTING
€ 58.00
15
590311002
ref: 15
KE100-A8/A9/A10
COIL-CHARGING,B
€ 68.50
16
21047019
ref: 16
KE100-A5/A6/A7
COIL-LIGHTING
€ 109.50
16
590311001
ref: 16
KE100-A8/A9/A10
COIL-CHARGING,A
€ 65.00
17
210491004
ref: 17
KE100-A5/A6/A7
COIL-EXCITING
€ 73.50
17
210491004
ref: 17
KE100-A8/A9/A10
COIL-EXCITING
€ 73.50
18
21013006
ref: 18
CONDENSER
€ 21.00
19
21029028
ref: 19
KE100-A5/A6/A7
WIRING HARNESS,MAG
€ 31.50
19
260011077
ref: 19
KE100-A8/A9/A10
MAGNETO WIRING HARNESS
€ 40.00
20
21017002
ref: 20
GROMMET
€ 3.00
21
210481002
ref: 21
PLATE-COIL,MAGNETO
€ 46.50
22
21037002
ref: 22
CLAMP,WIRING HARNESS
€ 2.50
23
221B0614
ref: 23
SCREW-CNTSNK HD,6X14
€ 2.50
24
21061015
ref: 24
KE100-A5/A6/A7
RECTIFIER
€ 30.50
25
461F0500
ref: 25
KE100-A5/A6/A7
WASHER-SPRING,5MM
€ 0.50
26
220B0510
ref: 26
KE100-A5/A6/A7
SCREW-PAN-CROS,5X10
€ 0.50
27
210661012
ref: 27
KE100-A8/A9/A10
REGULATOR-VOLTAGE
€ 148.50
28
112G0625
ref: 28
KE100-A8/A9/A10
BOLT-UPSET,6X25
€ 4.00
29
461F0600
ref: 29
KE100-A8/A9/A10
WASHER-SPRING,6MM
€ 0.50
30
411B0600
ref: 30
KE100-A8/A9/A10
WASHER-PLAIN,6MM
€ 0.50
31
21160005
ref: 31
CANADA
CAP-ASSY-PLUG
€ 29.00
