TRANSMISSION
KDX50A6F KDX50 2006 USA CANADA

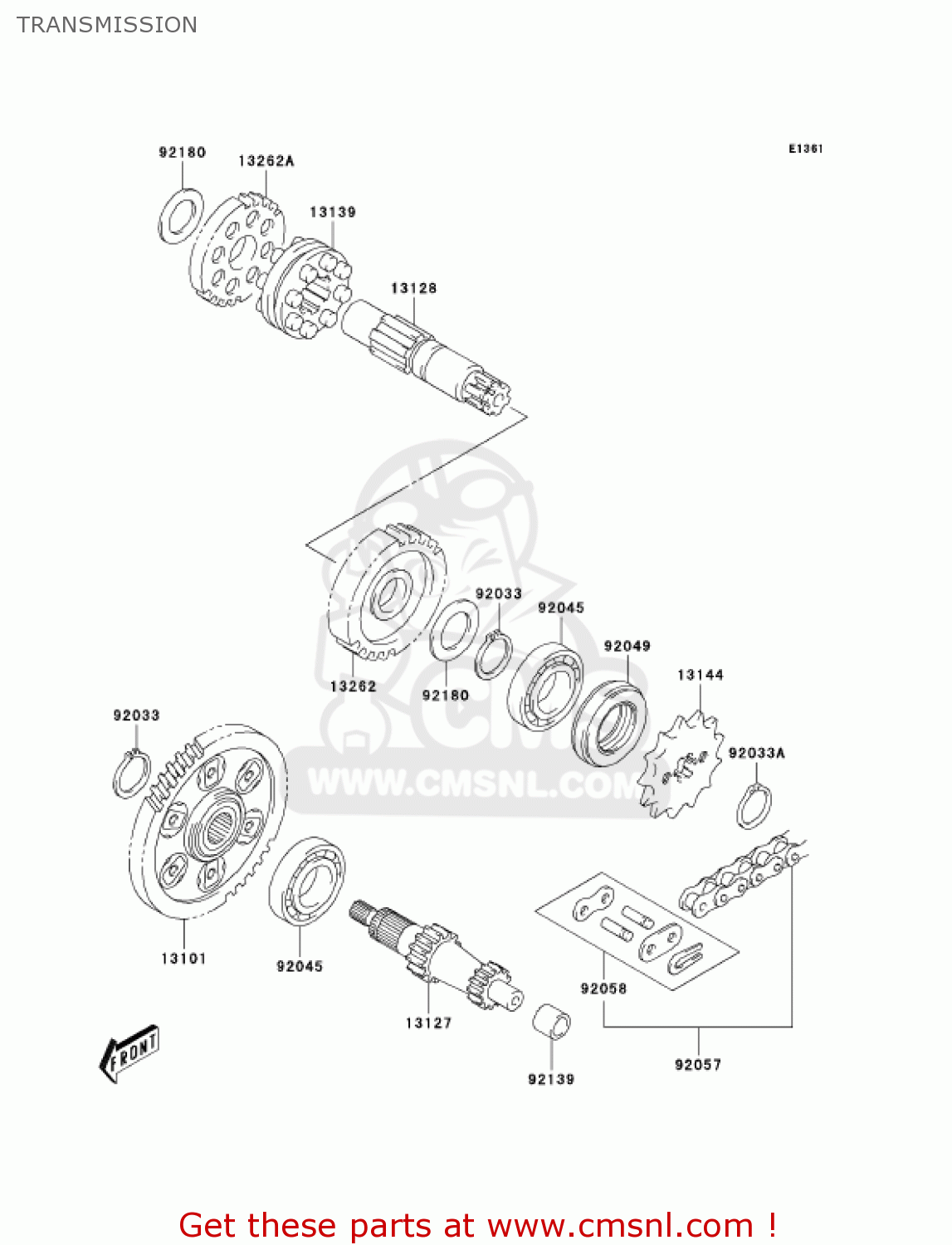

Transmission diagram KDX50A6F KDX50 2006 USA CANADA
TRANSMISSION KDX50A6F KDX50 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13101
13101S001
ref: 13101
GEAR-ASSY,PRIMARY DRI
€ 218.00
13127
13127S007
ref: 13127
SHAFT-TRANSMISSION IN
€ 58.50
13128
13128S009
ref: 13128
SHAFT-TRANSMISSION OU
€ 61.00
13139
13139S003
ref: 13139
SHIFTER
€ 30.50
13144
13144S007
ref: 13144
SPROCKET-OUTPUT,13T
€ 11.50
13262
13262S022
ref: 13262
GEAR,OUTPUT LOW,40T
€ 35.50
13262
13262S023
ref: 13262
GEAR,OUTPUT 2ND,29T
€ 35.50
92033
92033S026
ref: 92033
RING-SNAP,DRIVEN GEAR
€ 3.00
92033
92033S027
ref: 92033
RING-SNAP,ENGINE SPRO
€ 1.50
92045
92045S035
ref: 92045
BEARING-BALL,17X40X12
€ 17.00
92049
92049S028
ref: 92049
SEAL-OIL,CRANKSHAFT O
€ 8.50
92057
92057S008
ref: 92057
CHAIN,DRIVE 78LJ
€ 13.00
92058
92058S002
ref: 92058
JOINT-CHAIN
€ 3.00
92139
92139S009
ref: 92139
BUSHING,COUNTER SHAFT
€ 4.00
92180
92180S014
ref: 92180
SHIM,2ND GEAR
€ 3.00
