OIL PUMP

KDX50A6F KDX50 2006 USA CANADA

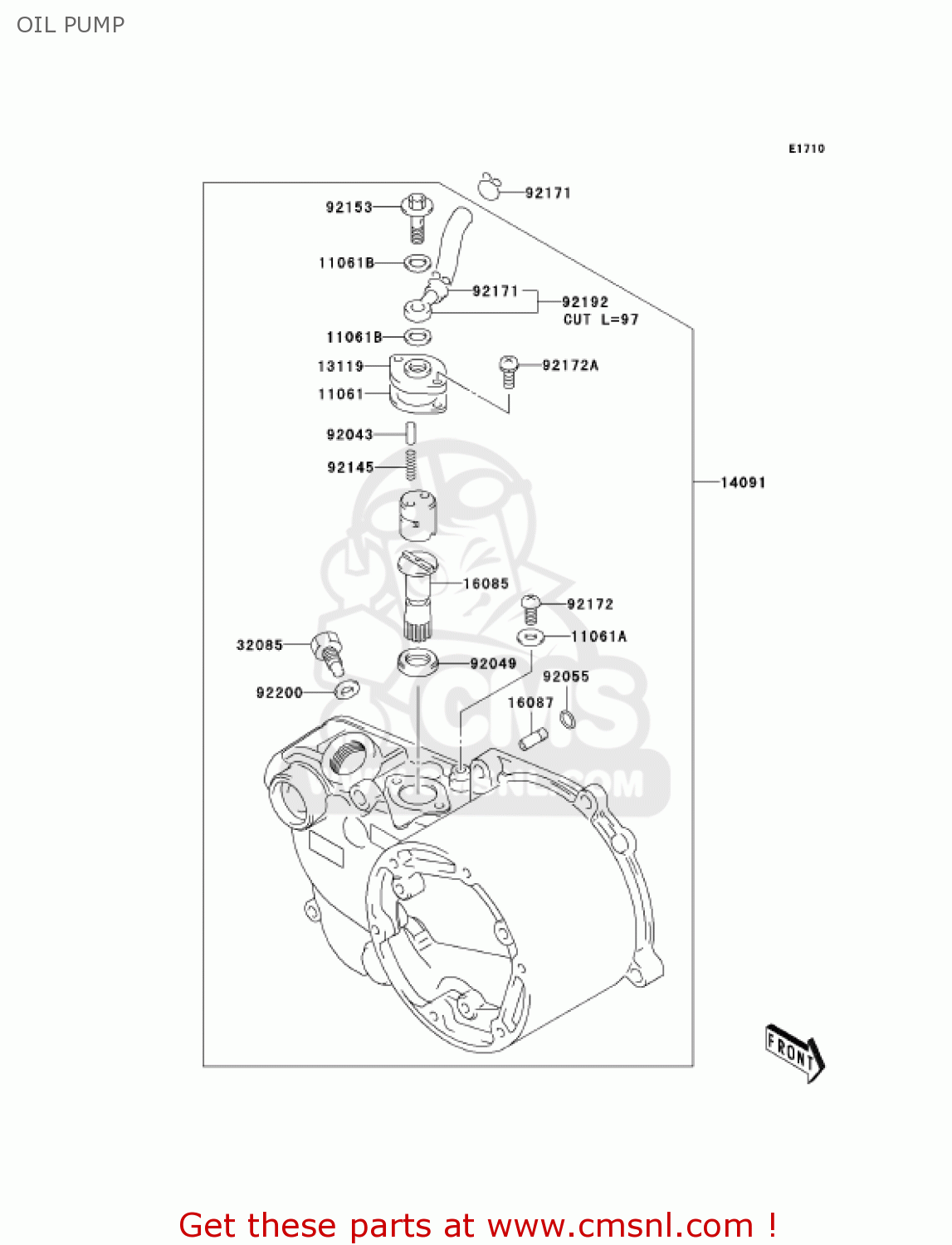

Oil pump diagram KDX50A6F KDX50 2006 USA CANADA

OIL PUMP KDX50A6F KDX50 2006 USA CANADA
OIL PUMP KDX50A6F KDX50 2006 USA CANADA
OIL PUMP KDX50A6F KDX50 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
11061
11061S043
ref: 11061
GASKET,OIL PUMP (NAS)
€ 2.50
11061A
11061S044
ref: 11061A
GASKET,AIR VENT SCREW (NAS)
€ 2.00
11061B
11061S045
ref: 11061B
GASKET,OIL HOSE (NAS)
11061S045
€ 2.00
13119
13119S001
ref: 13119
CAM-RELEASE
€ 8.50
14091
14091S119
ref: 14091
COVER,CLUTCH
€ 220.00
16085
16085S002
ref: 16085
GEAR
€ 24.50
16087
16087S002
ref: 16087
VALVE-CHECK,CRANK
€ 10.50
32085
32085S005
ref: 32085
STOPPER
€ 2.50
92043
92043S025
ref: 92043
PIN,SUB
€ 2.00
92049
92049S027
ref: 92049
SEAL-OIL,OIL PUMP
€ 3.50
92055
92055S038
ref: 92055
RING-O,CHECK VALVE
€ 3.50
92145
92145S058
ref: 92145
SPRING,OIL PUMP PLUNG
€ 2.00
92153
92153S192
ref: 92153
BOLT
€ 9.00
92171
92171S062
ref: 92171
CLAMP,OIL HOSE
€ 2.00
92172
92172S110
ref: 92172
SCREW
€ 1.50
92172A
92172S121
ref: 92172A
SCREW,OIL PUMP
€ 1.50
92192
92192S037
ref: 92192
TUBE
€ 6.50
92200
92200S084
ref: 92200
WASHER,PLUNGER
€ 1.50
