REAR HUB

KDX50A6F KDX50 2006 USA CANADA

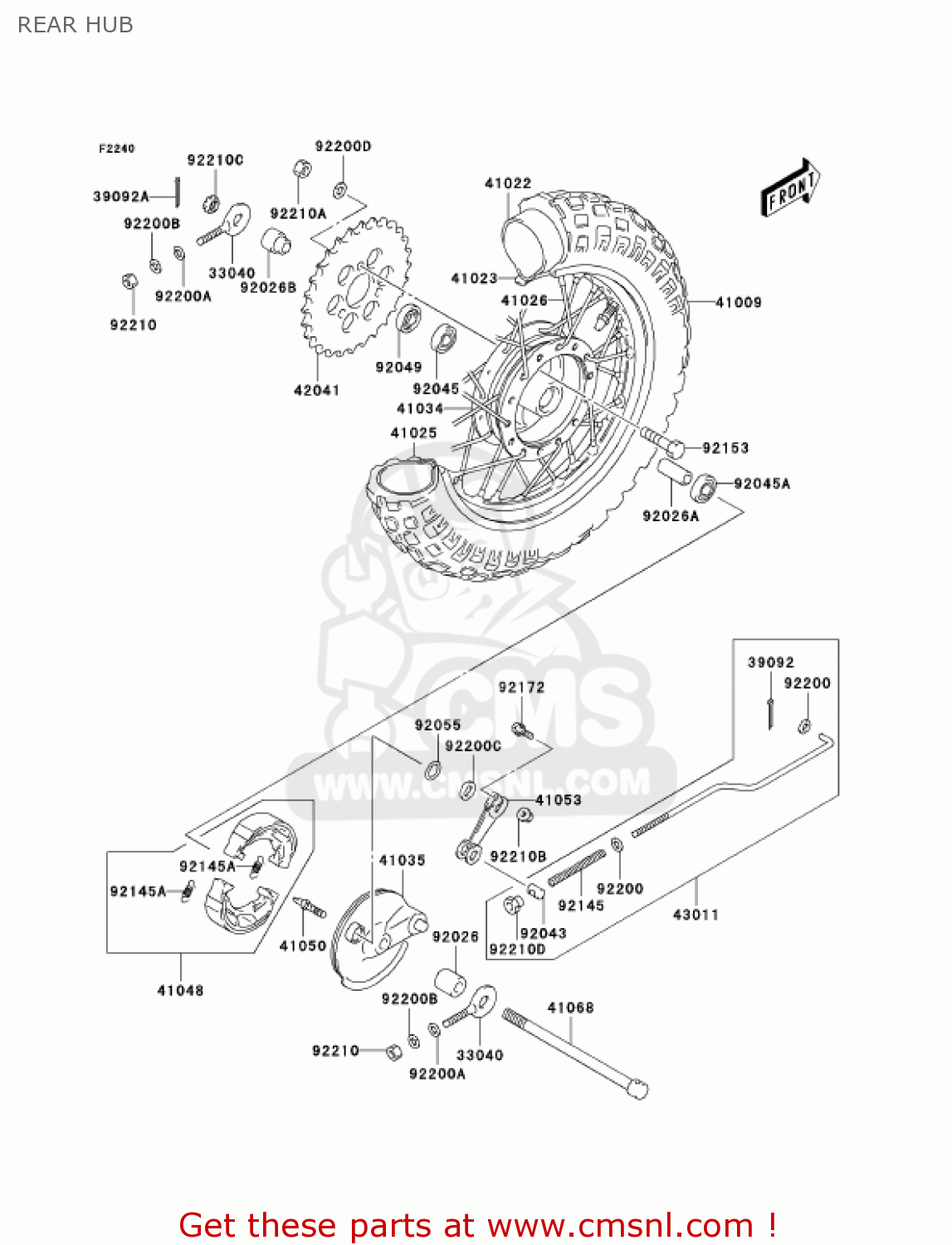

Rear hub diagram KDX50A6F KDX50 2006 USA CANADA

REAR HUB KDX50A6F KDX50 2006 USA CANADA
REAR HUB KDX50A6F KDX50 2006 USA CANADA
REAR HUB KDX50A6F KDX50 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
33040
33040S003
ref: 33040
ADJUSTER-CHAIN
€ 3.50
39092
39092S004
ref: 39092
PIN-HAIR,FR FOOTREST
€ 1.50
39092A
39092S005
ref: 39092A
PIN-HAIR,BRAKE PEDAL
€ 1.50
41009
41009S014
ref: 41009
TIRE,2.50-10
€ 23.00
41022
41022S005
ref: 41022
TUBE-TIRE
€ 9.00
41023
41023S005
ref: 41023
BAND-RIM
€ 1.50
41025
41025S010
ref: 41025
RIM,1.40X10
€ 34.50
41026
41026S005
ref: 41026
SPOKE-ASSY
€ 12.00
41034
41034S006
ref: 41034
DRUM-ASSY,REAR WHEEL
€ 52.50
41035
41035S005
ref: 41035
PANEL-ASSY-BRAKE
€ 35.00
41048
41048S008
ref: 41048
SHOE-BRAKE (NAS)
€ 22.00
41050
41050S007
ref: 41050
CAM-BRAKE
€ 8.50
41053
41053S010
ref: 41053
LEVER-BRAKE CAM
€ 5.50
41068
41068S010
ref: 41068
AXLE
€ 8.50
42041
42041S007
ref: 42041
SPROCKET-HUB,28T
€ 21.00
43011
43011S003
ref: 43011
ROD-BRAKE
€ 4.50
92026
92026S111
ref: 92026
SPACER
€ 3.00
92026A
92026S117
ref: 92026A
SPACER,WHEEL HUB BEAR
€ 3.50
92026B
92026S118
ref: 92026B
SPACER
€ 3.00
92043
92043S006
ref: 92043
PIN
€ 3.00
92045
92045S055
ref: 92045
BEARING-BALL,FRONT WH
€ 8.50
92045A
92045S056
ref: 92045A
BEARING-BALL,FRONT WH
€ 9.50
92049
92049S055
ref: 92049
SEAL-OIL,WHEEL HUB
92049S055
€ 2.50
92055
92055S091
ref: 92055
RING-O
€ 1.00
92145
92145S046
ref: 92145
SPRING,REAR BRAKE ROD
€ 1.50
92145A
92145S122
ref: 92145A
SPRING,BRAKE SHOE
€ 1.50
92153
92153S311
ref: 92153
BOLT,8X36
€ 1.50
92172
92172S192
ref: 92172
SCREW,FRONT BRAKE
€ 1.00
92200
92200S002
ref: 92200
WASHER
€ 1.50
92200A
92200S003
ref: 92200A
WASHER
€ 1.50
92200B
92200S102
ref: 92200B
WASHER,CHAIN ADJUSTER
€ 1.50
92200C
92200S177
ref: 92200C
WASHER,10.5X18X1
€ 1.50
92200D
92200S178
ref: 92200D
WASHER
€ 1.50
92210
92210S001
ref: 92210
NUT
€ 1.50
92210A
92210S051
ref: 92210A
NUT
€ 1.00
92210B
92210S067
ref: 92210B
NUT
€ 1.50
92210C
92210S119
ref: 92210C
NUT,FRONT AXLE
€ 2.00
92210D
92210S120
ref: 92210D
NUT
€ 2.00
