IGNITION SYSTEM

KDX50A6F KDX50 2006 USA CANADA

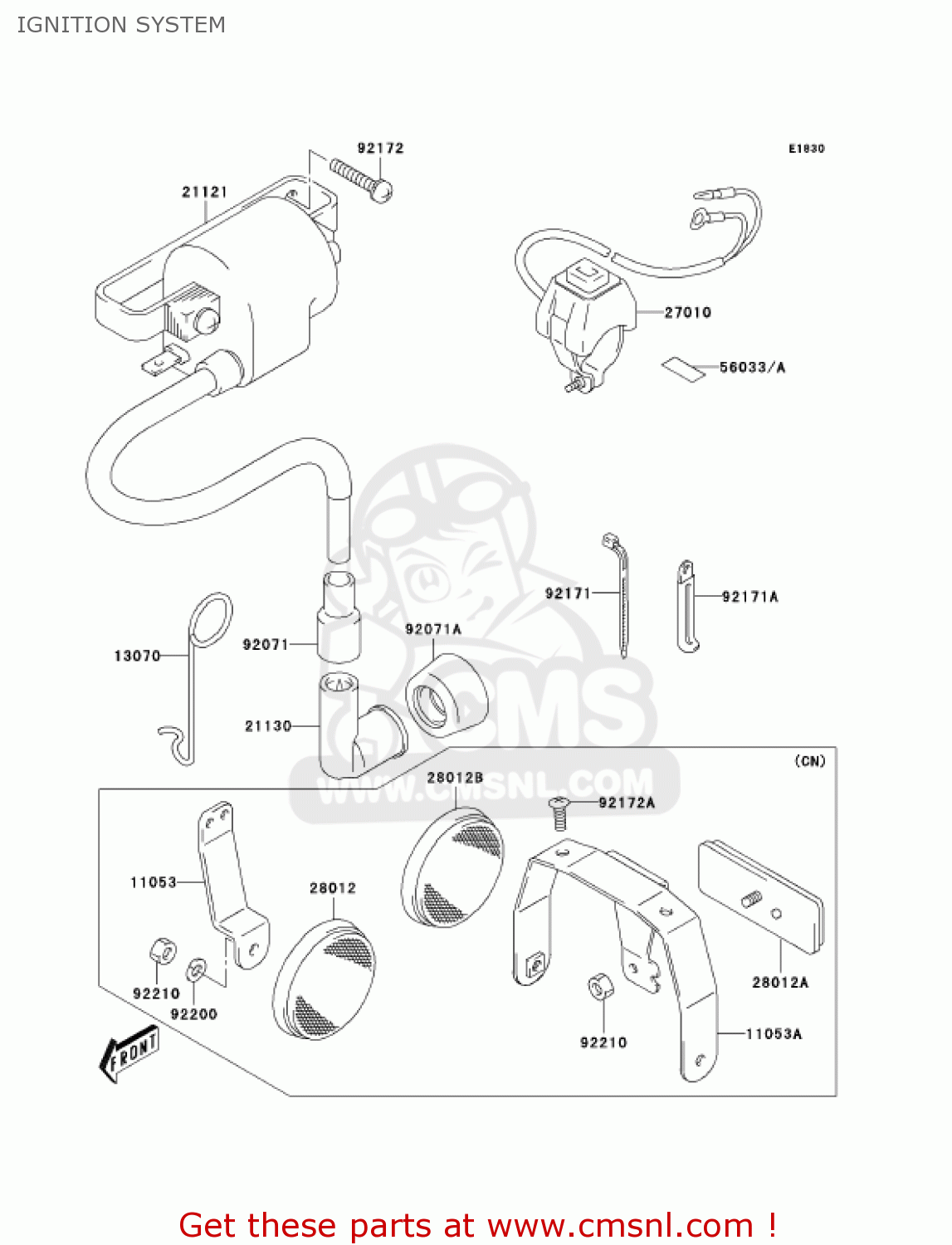

Ignition system diagram KDX50A6F KDX50 2006 USA CANADA

IGNITION SYSTEM KDX50A6F KDX50 2006 USA CANADA
IGNITION SYSTEM KDX50A6F KDX50 2006 USA CANADA
IGNITION SYSTEM KDX50A6F KDX50 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
11053
11053S027
ref: 11053
[CN]
BRACKET,RR
€ 0.00
11053
11053S028
ref: 11053
[CN]
BRACKET,RR
€ 0.00
13070
13070S015
ref: 13070
GUIDE,HIGHTENSION COR
€ 2.00
21121
21121S004
ref: 21121
COIL-IGNITION
€ 243.00
21130
21130S007
ref: 21130
CAP-SPARK PLUG
€ 15.00
27010
27010S027
ref: 27010
SWITCH,ENGINE STOP
€ 26.50
28012
28012S001
ref: 28012
[CN]
REFLECTOR-REFLEX,FR
€ 14.50
28012
28012S003
ref: 28012
[CN]
REFLECTOR-REFLEX,RR
€ 15.00
28012
28012S004
ref: 28012
[CN]
REFLECTOR-REFLEX,REAR
€ 17.00
56033
56033S014
ref: 56033
[US]
LABEL-MANUAL,ENGINE S
€ 2.00
56033
56033S016
ref: 56033
[CN]
LABEL-MANUAL,ENGINE STOP
€ 0.00
92071
92071S004
ref: 92071
GROMMET,HIGH TENSION
€ 2.50
92071
92071S008
ref: 92071
GROMMET,SPARK PLUG
€ 3.00
92171
92171S016
ref: 92171
CLAMP,L:165
€ 3.50
92171
92171S132
ref: 92171
CLAMP,OIL HOSE NO.2
€ 2.50
92172
92172S187
ref: 92172
SCREW,IGNITION COIL
€ 1.50
92172
92172S193
ref: 92172
[CN]
SCREW
€ 0.00
92200
92200S168
ref: 92200
[CN]
WASHER,BRAKE LEVER
€ 1.00
92210
92210S065
ref: 92210
[CN]
NUT
€ 1.50
