BRAKE PEDAL

KDX50A6F KDX50 2006 USA CANADA

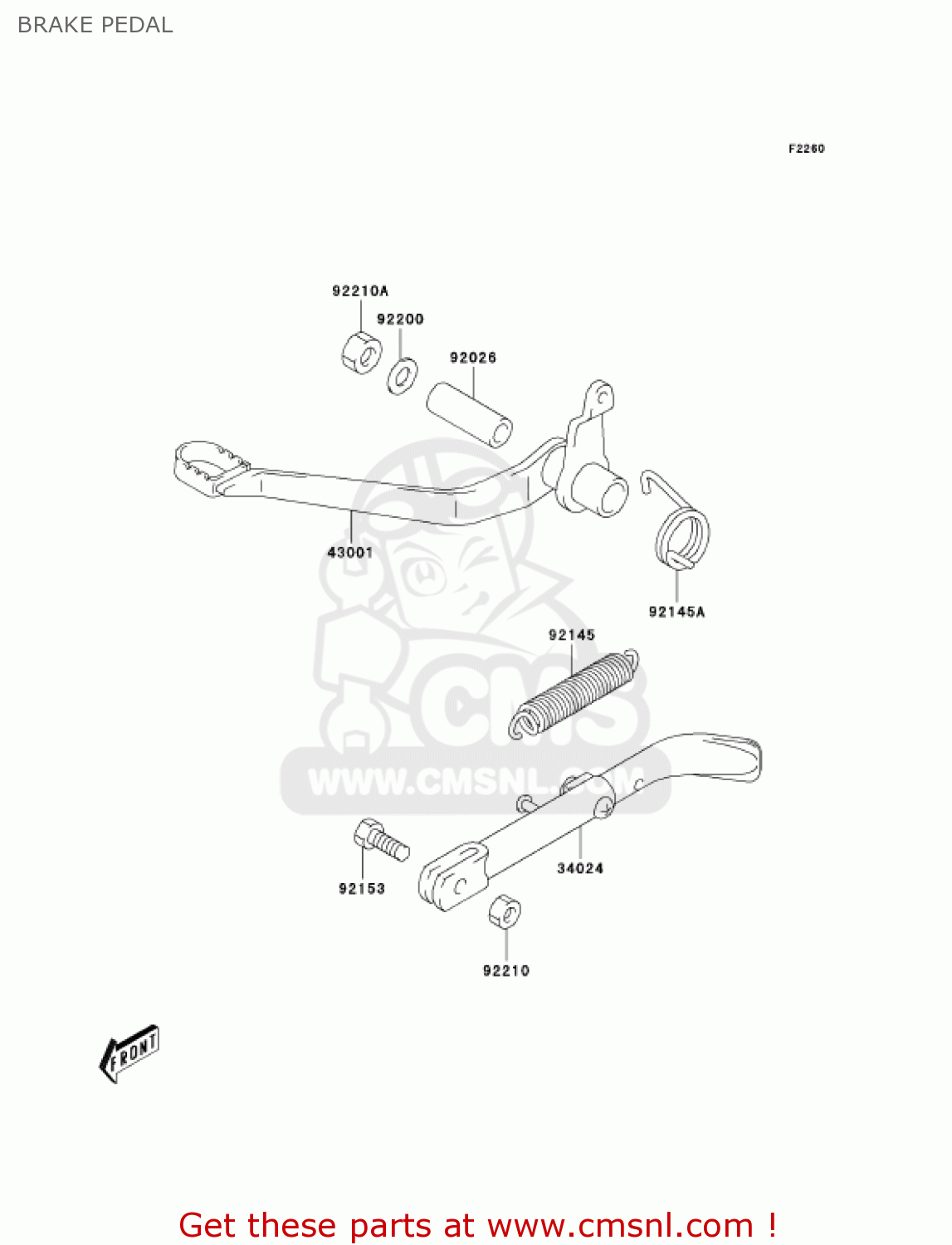

Brake pedal diagram KDX50A6F KDX50 2006 USA CANADA

BRAKE PEDAL KDX50A6F KDX50 2006 USA CANADA

BRAKE PEDAL KDX50A6F KDX50 2006 USA CANADA

prices are in EUR

ref

part #

description

quantity

34024

34024S005503
ref: 34024

STAND-SIDE,BLACK

€ 9.50

43001

43001S005
ref: 43001

LEVER-BRAKE

€ 15.00

92026

92026S109
ref: 92026

SPACER,BRAKE PEDAL

€ 2.50

92145

92145S119
ref: 92145

SPRING

€ 2.00

92145A

92145S120
ref: 92145A

SPRING,BRAKE PEDAL RE

€ 2.50

92153

92153S318
ref: 92153

BOLT,8X22

€ 2.00

92200

92200S173
ref: 92200

WASHER,10.5X22X1.6

€ 1.50

92210

92210S051
ref: 92210

NUT

€ 1.00

92210A

92210S117
ref: 92210A

NUT,BRAKE PEDAL

€ 4.00
