MUFFLER(S)

KDX50A6F KDX50 2006 USA CANADA

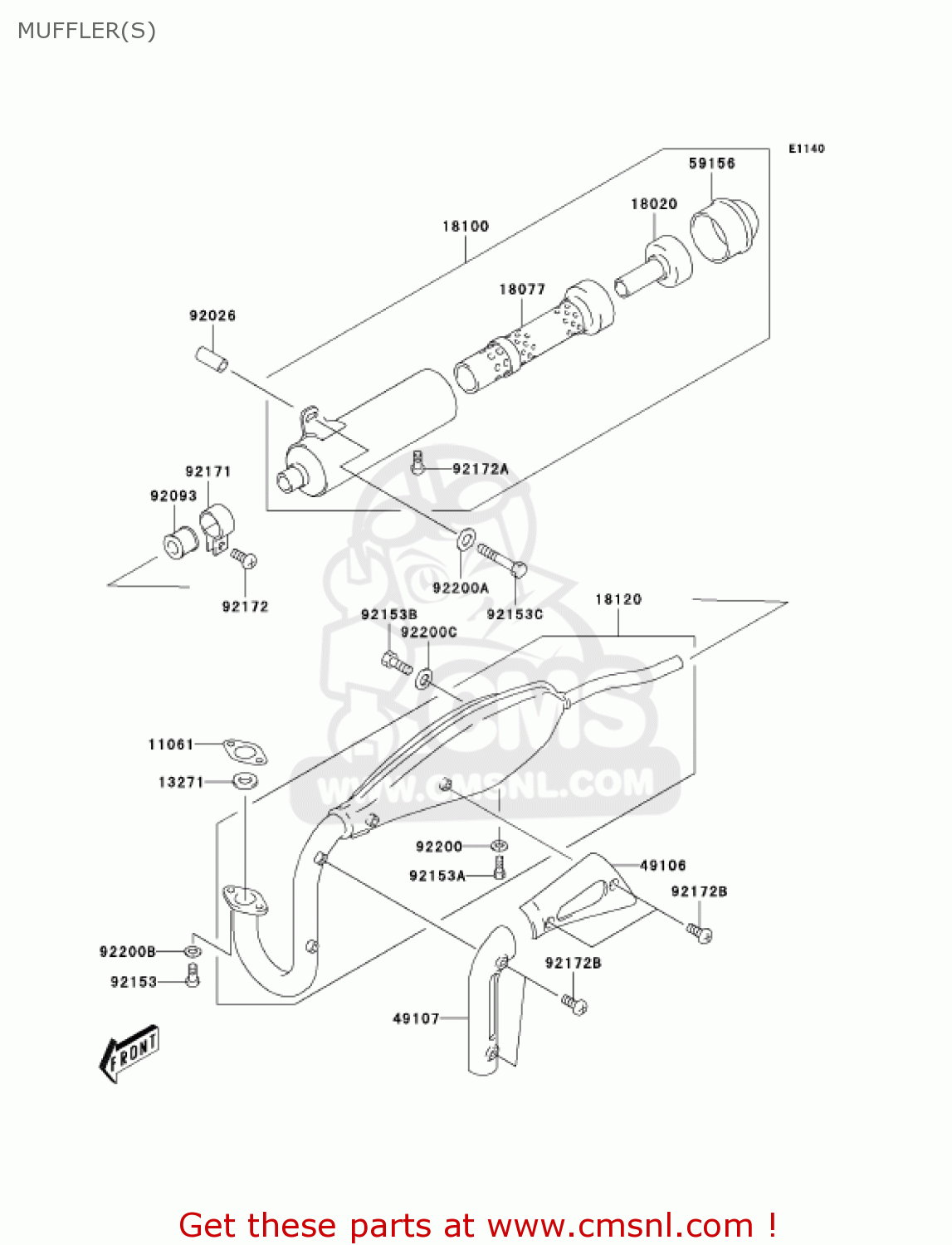

Muffler(s) diagram KDX50A6F KDX50 2006 USA CANADA

MUFFLER(S) KDX50A6F KDX50 2006 USA CANADA
MUFFLER(S) KDX50A6F KDX50 2006 USA CANADA
MUFFLER(S) KDX50A6F KDX50 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
11061
11061S081
ref: 11061
GASKET,EXHAUST PIPE (NAS)
€ 7.00
13271
13271S027
ref: 13271
PLATE,EXHAUST PIPE
€ 4.00
18020
18020S002
ref: 18020
BAFFLE
€ 12.50
18077
18077S001
ref: 18077
ARRESTER-SPARK
€ 19.50
18100
18100S003
ref: 18100
BODY-ASSY-MUFFLER
€ 76.00
18120
18120S001
ref: 18120
CHAMBER-EXHAUST
€ 135.50
49106
49106S005
ref: 49106
COVER-MUFFLER
€ 6.00
49107
49107S005
ref: 49107
COVER-EXHAUST PIPE
€ 4.50
59156
59156S002
ref: 59156
PIPE-TAIL
€ 9.00
92026
92026S108
ref: 92026
SPACER
€ 3.50
92093
92093S042
ref: 92093
SEAL,MUFFLER
€ 4.50
92153
92153S024
ref: 92153
BOLT
€ 1.50
92153A
92153S125
ref: 92153A
BOLT
€ 1.00
92153B
92153S314
ref: 92153B
BOLT
€ 1.50
92153C
92153S315
ref: 92153C
BOLT
€ 2.00
92171
92171S105
ref: 92171
CLAMP,CONNECTOR
€ 3.00
92172
92172S008
ref: 92172
SCREW
€ 1.00
92172A
92172S128
ref: 92172A
SCREW,STARTER
€ 1.50
92172B
92172S288
ref: 92172B
SCREW,5X6
€ 1.00
92200
92200S003
ref: 92200
WASHER
€ 1.50
92200A
92200S028
ref: 92200A
WASHER
€ 1.50
92200B
92200S102
ref: 92200B
WASHER,CHAIN ADJUSTER
€ 1.50
92200C
92200S169
ref: 92200C
WASHER
€ 1.50
