REAR MASTER CYLINDER

KDX250-E1 1991 EUROPE FR GR AS

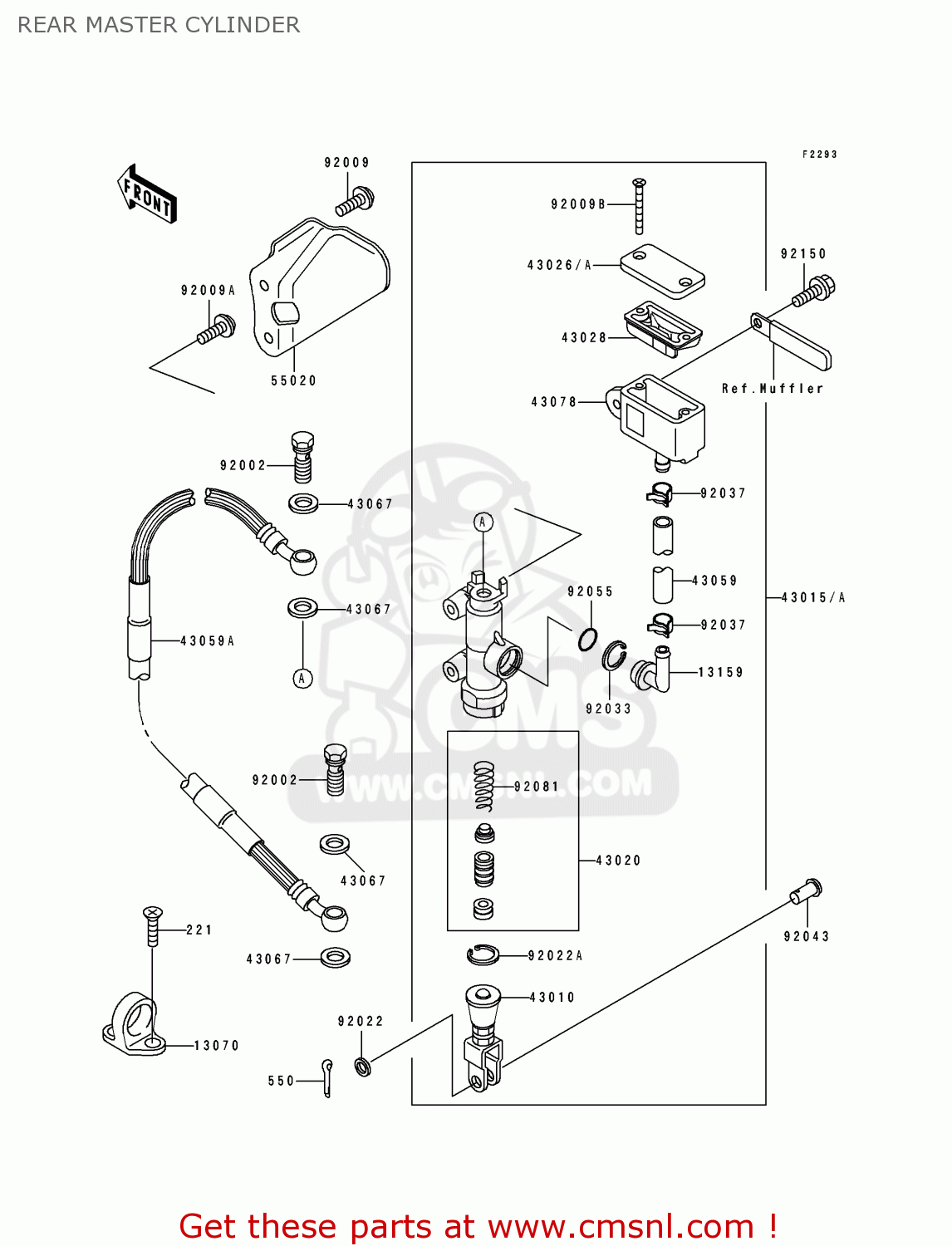

Rear master cylinder diagram KDX250-E1 1991 EUROPE FR GR AS

REAR MASTER CYLINDER KDX250-E1 1991 EUROPE FR GR AS
REAR MASTER CYLINDER KDX250-E1 1991 EUROPE FR GR AS
REAR MASTER CYLINDER KDX250-E1 1991 EUROPE FR GR AS
prices are in EUR
ref
part #
description
quantity
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
221B0610
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13070
130701144
ref: 13070
GUIDE,HOSE
130701144
€ 5.50
13159
131591056
ref: 13159
CONNECTOR
131591056
€ 9.50
43010
430101068
ref: 43010
ROD-ASSY-BRAKE
430101068
€ 38.50
43015
430151466
ref: 43015
EUFRGR
CYLINDER-ASSY-MASTER,
€ 202.00
43015A
430151469
ref: 43015A
AS
CYLINDER-ASSY-MASTER,
€ 202.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261073
ref: 43026
EUFRGR
CAP-BRAKE
430261073
€ 9.50
43026A
430261075
ref: 43026A
AS
CAP-BRAKE
430261075
€ 9.50
43028
430281067
ref: 43028
DIAPHRAGM
430281067
€ 12.50
43059
430591561
ref: 43059
HOSE-BRAKE
430591561
€ 12.00
43059A
430591570
ref: 43059A
HOSE-BRAKE,RR
€ 93.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781122
ref: 43078
RESERVOIR
430781122
€ 21.00
55020
550201385
ref: 55020
GUARD,RR MASTER CYLIN
€ 12.00
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92009A
920091287
ref: 92009A
SCREW,6X14
920091287
€ 1.50
92009B
920091596
ref: 92009B
SCREW
920091596
€ 2.00
92022
920221028
ref: 92022
WASHER,8.5X13X1
920221028
€ 2.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371710
ref: 92037
CLAMP
920371710
€ 6.50
92043
920431039
ref: 92043
PIN
920431039
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
92150
921501507
ref: 92150
BOLT
921501507
€ 3.00
