FRAME FITTING
KDX250-E1 1991 EUROPE FR GR AS

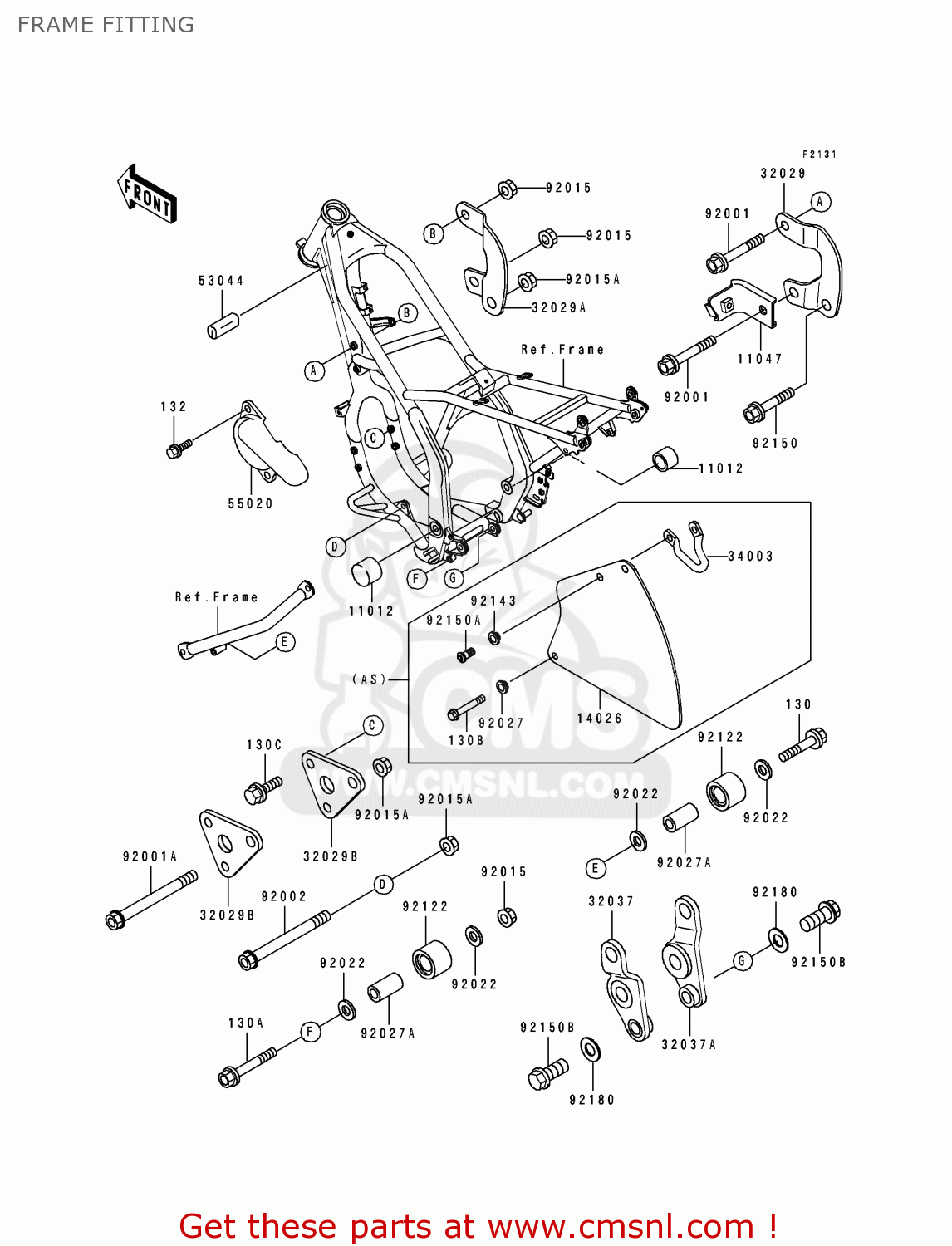

Frame fitting diagram KDX250-E1 1991 EUROPE FR GR AS
FRAME FITTING KDX250-E1 1991 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
130A
130G0855
ref: 130A
EUFRGR
BOLT-FLANGED,8X55
€ 1.50
130B
130G0860
ref: 130B
AS
BOLT-FLANGED,8X60
€ 1.00
130C
130P0825
ref: 130C
BOLT-FLANGED
€ 1.00
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
11012
110121591
ref: 11012
CAP,AXLE NUT
€ 3.00
11047
110471288
ref: 11047
BRACKET,HORN
€ 10.00
14026
140261170
ref: 14026
AS
COVER-CHAIN
€ 0.00
32029
320291755
ref: 32029
BRACKET-ENGINE,STAY H
€ 13.50
32029A
320291756
ref: 32029A
BRACKET-ENGINE,STAY H
€ 8.00
32029B
320291757
ref: 32029B
BRACKET-ENGINE,FR
€ 8.50
32037
320371495
ref: 32037
BRACKET-SHOCKABSORBER
€ 30.50
32037A
320371496
ref: 32037A
BRACKET-SHOCKABSORBER
€ 30.50
34003
340031354CC
ref: 34003
AS
HOLDER-STEP,LH,L.GREEN
€ 0.00
53044
530441251
ref: 53044
TRIM,L=20
€ 2.50
55020
5502013936W
ref: 55020
GUARD,MAIN SWITCH,L.G
€ 20.00
92001
920011583
ref: 92001
BOLT,FLANGED,8X70
€ 6.00
92001A
920011701
ref: 92001A
BOLT,FLANGED,10X92
€ 6.00
92002
920021491
ref: 92002
BOLT,FLANGED,10X105
€ 8.00
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
€ 7.00
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
€ 2.50
92027
920271354
ref: 92027
AS
COLLAR
€ 3.00
92027A
920271670
ref: 92027A
COLLAR,CHAIN ROLLER
€ 4.50
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
€ 7.00
92143
921431345
ref: 92143
AS
COLLAR
€ 2.50
92150
921501125
ref: 92150
BOLT
€ 4.50
92150A
921501221
ref: 92150A
AS
BOLT,SOCKET,10X23
€ 3.50
92150B
921501359
ref: 92150B
BOLT,FLANGED,12X30
€ 5.00
92180
921801060
ref: 92180
SHIM,12.5X24X0.5
€ 2.50
