FENDER
KDX250-E1 1991 EUROPE FR GR AS

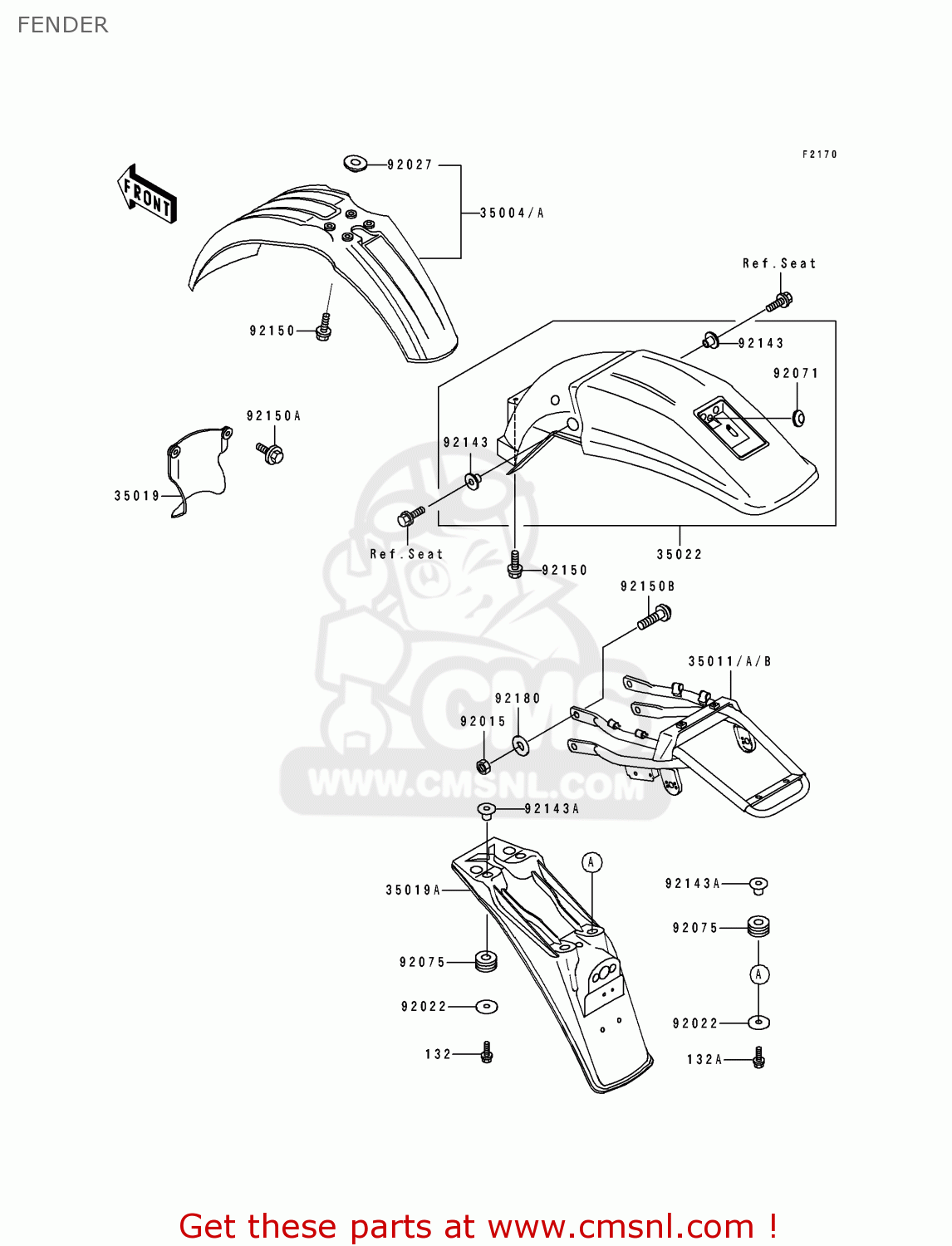

Fender diagram KDX250-E1 1991 EUROPE FR GR AS
FENDER KDX250-E1 1991 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
35004
3500412626W
ref: 35004
FENDER-FRONT,L.GREEN
€ 52.50
35011
350111573CC
ref: 35011
EUFRGR
STAY,REAR FRAME,L.GRE
€ 230.00
35011A
350111589CC
ref: 35011A
AS
STAY,REAR FRAME,L.GREEN
€ 230.00
35019
350191264
ref: 35019
FLAP,RR FENDER,FR
€ 13.00
35019A
350191277
ref: 35019A
FLAP,RR FENDER
€ 45.50
35022
3502212716W
ref: 35022
FENDER-COMP-REAR,L.GR
€ 66.50
92015
920151429
ref: 92015
NUT,10MM
€ 4.50
92022
920221690
ref: 92022
WASHER
€ 2.50
92027
920271936
ref: 92027
COLLAR,FRONT FENDER
€ 4.00
92071
92071019
ref: 92071
GROMMET,10MM
€ 2.50
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92143
921431345
ref: 92143
COLLAR
€ 2.50
92143A
921431353
ref: 92143A
COLLAR
€ 5.50
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
92150B
921501517
ref: 92150B
BOLT,SOCKET,10X30
€ 5.50
92180
921801109
ref: 92180
SHIM,10.5X24X0.5
€ 2.50
