RADIATOR
KDX250-E1 1991 EUROPE FR GR AS

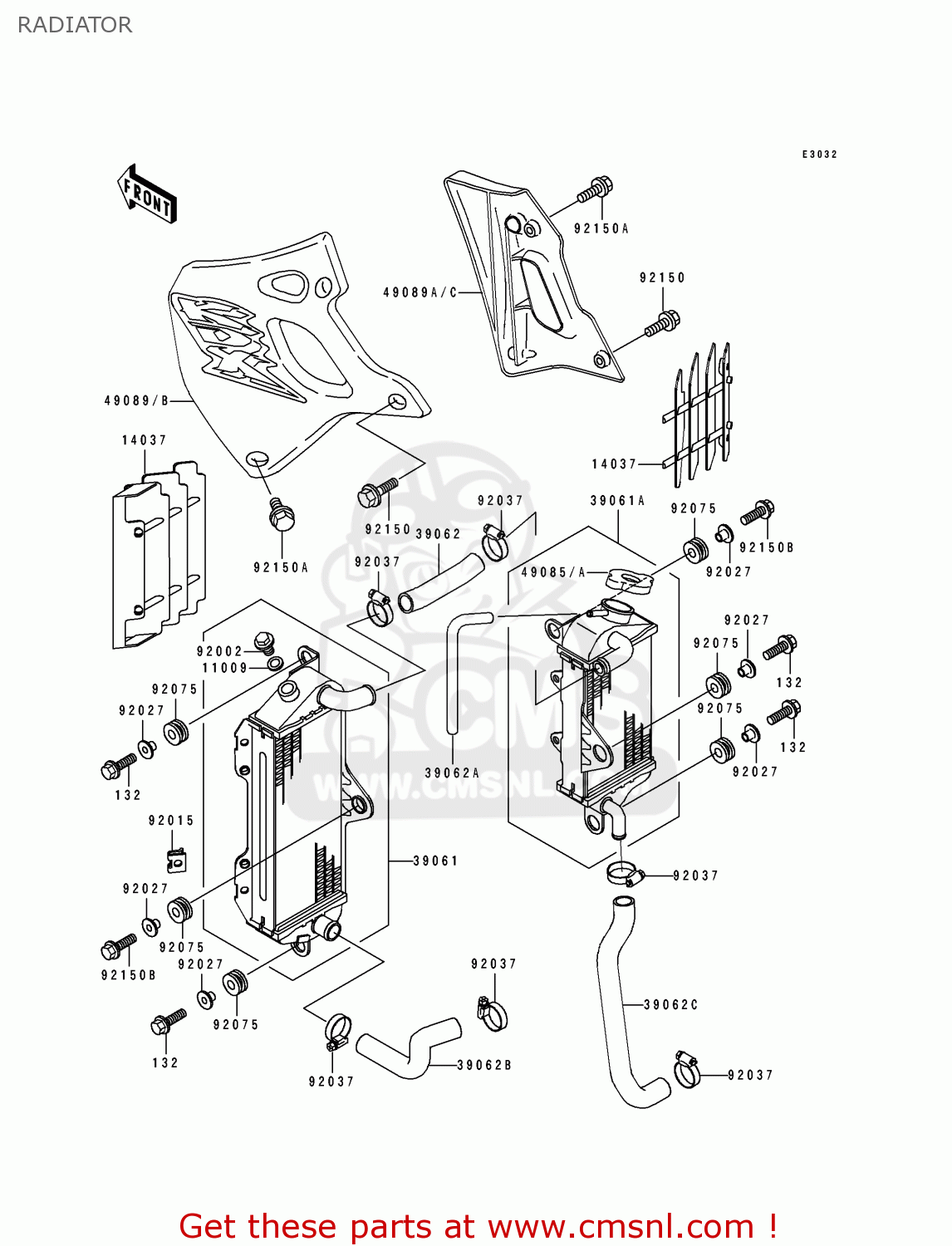

Radiator diagram KDX250-E1 1991 EUROPE FR GR AS
RADIATOR KDX250-E1 1991 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
11009
110091152
ref: 11009
GASKET,DRAIN BOLT (NAS)
€ 4.50
14037
1403710996W
ref: 14037
SCREEN,L.GREEN
€ 16.50
39061
390611127
ref: 39061
RADIATOR-ASSY,LH
€ 291.00
39061A
390611172
ref: 39061A
RADIATOR-ASSY,RH
€ 311.00
39062
390621302
ref: 39062
HOSE-COOLING,RADIATOR
€ 9.50
39062A
390621423
ref: 39062A
HOSE-COOLING,5X9X700
€ 22.50
39062B
390621435
ref: 39062B
HOSE-COOLING,HEAD-RAD
€ 18.00
39062C
390621471
ref: 39062C
HOSE-COOLING,RADIATOR
€ 17.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49085A
490851059
ref: 49085A
CAP-ASSY-PRESSURE
€ 39.50
49089
4908951296W
ref: 49089
SHROUD-ENGINE,LH,L.GR
€ 79.50
49089A
4908951306W
ref: 49089A
SHROUD-ENGINE,RH,L.GR
€ 79.50
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92150
921501392
ref: 92150
BOLT
€ 3.00
92150A
921501435
ref: 92150A
BOLT
€ 2.50
92150B
921501507
ref: 92150B
BOLT
€ 3.00
