FRONT MASTER CYLINDER
KDX250-E1 1991 EUROPE FR GR AS

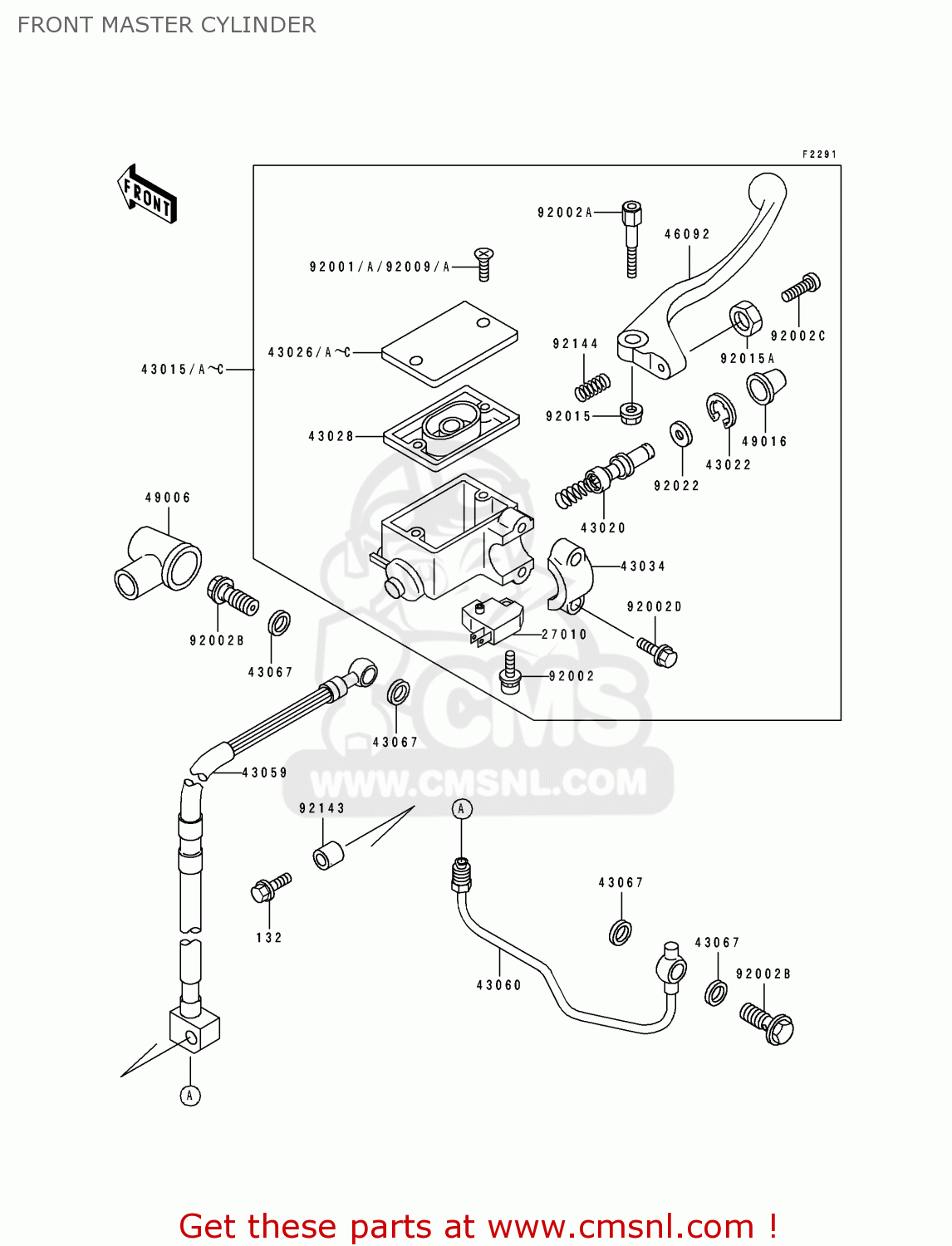

Front master cylinder diagram KDX250-E1 1991 EUROPE FR GR AS
FRONT MASTER CYLINDER KDX250-E1 1991 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
27010
270101170
ref: 27010
SWITCH,BRAKE
€ 26.00
43015
430151403
ref: 43015
EUFRGR
CYLINDER-ASSY-MASTER
€ 193.00
43015A
430151410
ref: 43015A
AS
CYLINDER-ASSY-MASTER,FR
€ 193.00
43015C
430151474
ref: 43015C
AS
CYLINDER-ASSY-MASTER,
€ 193.00
43020
430201065
ref: 43020
PISTON-COMP-BRAKE
€ 38.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.00
43026
430261021
ref: 43026
EUFRGR
CAP-BRAKE,MASTER CYLI
€ 19.50
43026A
430261022
ref: 43026A
AS
CAP-BRAKE
€ 36.00
43026C
430261074
ref: 43026C
AS
CAP-BRAKE
€ 17.50
43028
430281061
ref: 43028
DIAPHRAGM
€ 11.00
43034
430341016
ref: 43034
HOLDER-BRAKE,MASTER C
€ 13.50
43059
430591703
ref: 43059
HOSE-BRAKE,FR
€ 169.50
43060
430601079
ref: 43060
PIPE-BRAKE,FR
€ 38.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
46092
460921155
ref: 46092
LEVER-GRIP,FRONT BRAK
€ 12.00
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92001
920011727
ref: 92001
EUFRGR
BOLT,MASTER CYLINDER
€ 2.50
92001A
920011727
ref: 92001A
AS
BOLT,MASTER CYLINDER
€ 2.50
92002
920021323
ref: 92002
BOLT
€ 2.50
92002A
920021879
ref: 92002A
BOLT,LEVER SET
€ 13.00
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
€ 3.50
92002C
920021893
ref: 92002C
BOLT,ADJUST
€ 5.00
92002D
920021894
ref: 92002D
BOLT
€ 3.50
132
132G0630
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
92009
920091458
ref: 92009
AS
SCREW,4MM
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92015A
920151642
ref: 92015A
NUT,ADJUST
€ 2.50
92022
920221814
ref: 92022
WASHER
€ 3.00
92143
921431408
ref: 92143
COLLAR,6.5X9.5X17
€ 3.00
92144
921441103
ref: 92144
SPRING,RETURN
€ 6.50
