GENERATOR
KDX250-E1 1991 EUROPE FR GR AS

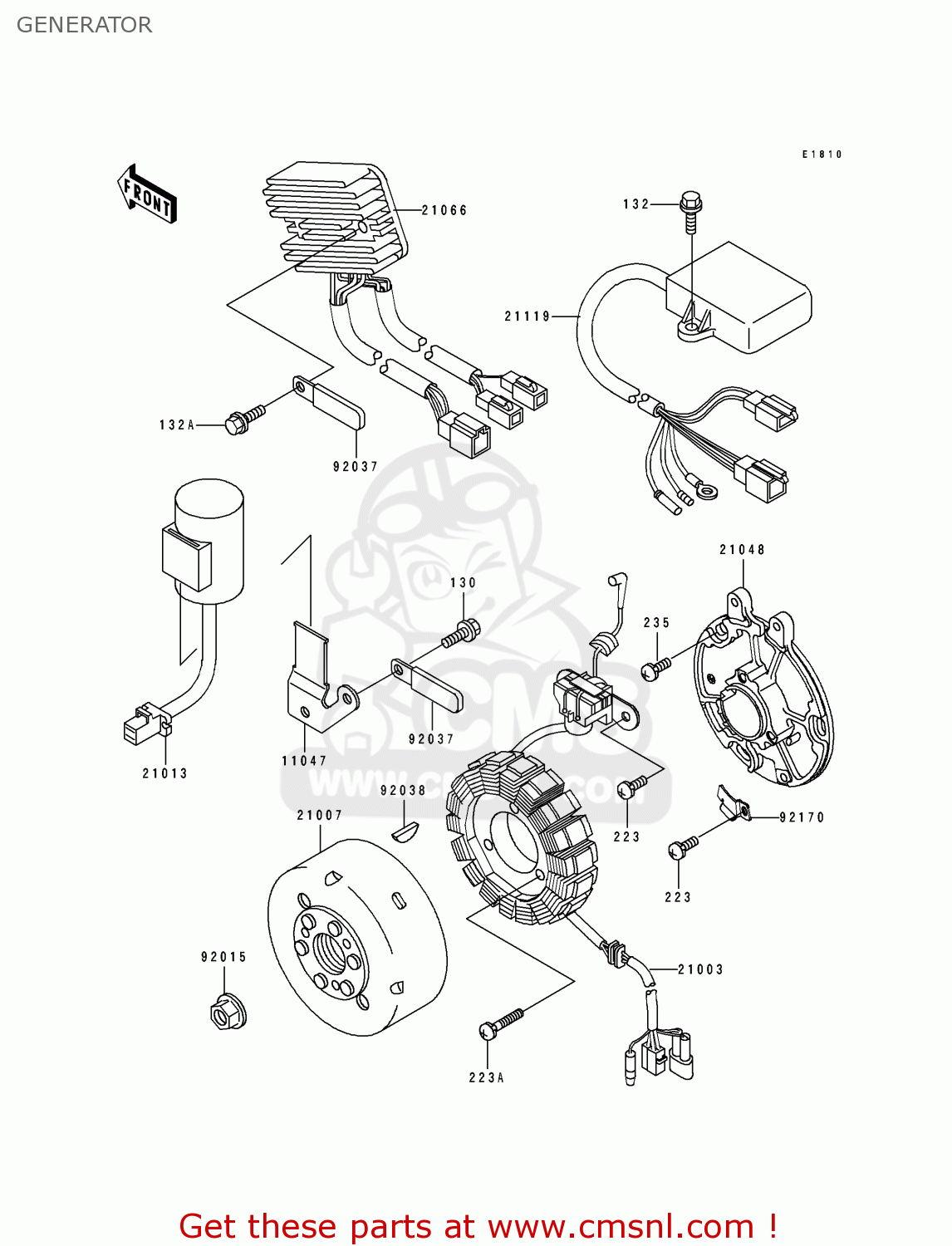

Generator diagram KDX250-E1 1991 EUROPE FR GR AS
GENERATOR KDX250-E1 1991 EUROPE FR GR AS
×
prices are in EUR
ref
part #
description
quantity
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
132
132G0614
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
223
223B0512
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223B0530
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
235
235B0616
ref: 235
SCREW-PAN-WP-CROS
€ 3.00
11047
110471372
ref: 11047
BRACKET,CONDENSOR
€ 5.50
21003
210031227
ref: 21003
STATOR
€ 353.50
21007
210071226
ref: 21007
ROTOR,MAGNETO
€ 391.00
21013
210132064
ref: 21013
CONDENSER
€ 88.00
21048
210481053
ref: 21048
PLATE-COIL
€ 40.50
21066
210661075
ref: 21066
REGULATOR-VOLTAGE
€ 132.00
21119
211191321
ref: 21119
IGNITER
€ 421.50
92015
920151821
ref: 92015
NUT
€ 4.50
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92038
92038001
ref: 92038
WOODRUFF KEY
€ 3.00
92170
921701247
ref: 92170
CLAMP
€ 2.50
