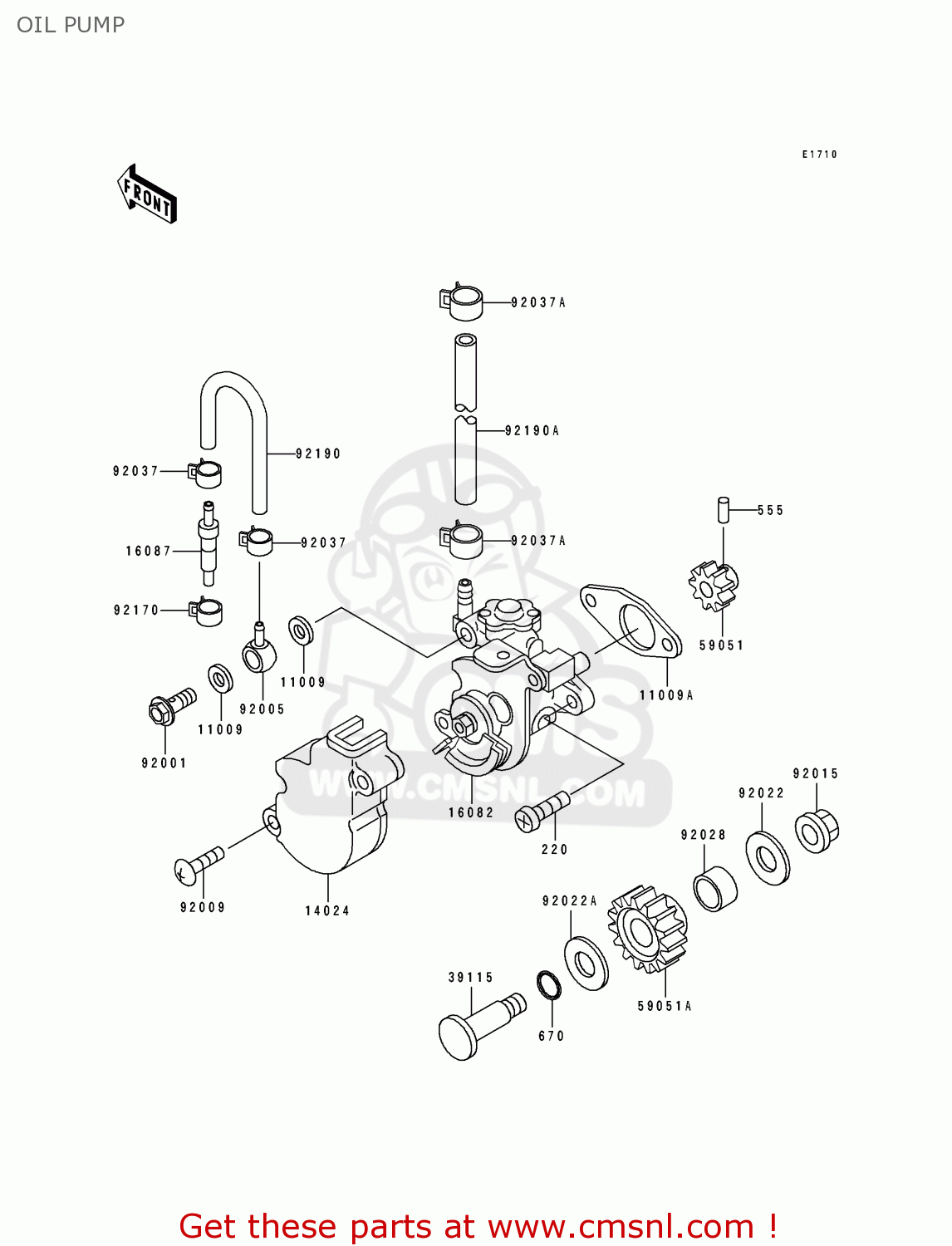

OIL PUMP

ref

part #

description

quantity

220

220B0516
ref: 220

SCREW-PAN-CROS

€ 2.50

555

555A0312
ref: 555

PIN-SPRING

€ 1.00

670

670B1507
ref: 670

O RING,7MM

€ 1.00

11009

110091298
ref: 11009

GASKET,6X12X10 (NAS)

€ 3.00

11009A

110091937
ref: 11009A

GASKET,OIL PUMP (NAS)

€ 3.00

14024

140241910
ref: 14024

COVER,OIL PUMP

€ 14.00

16082

160821107
ref: 16082

PUMP-ASSY-OIL

€ 232.00

16087

160871001
ref: 16087

VALVE-CHECK

€ 18.50

39115

391151064
ref: 39115

SHAFT-IDLER

€ 5.00

59051

590511226
ref: 59051

GEAR-SPUR,OIL PUMP,9T

€ 23.50

59051A

590511227
ref: 59051A

GEAR-SPUR,PUMP IDLE,1

€ 23.50

92001

92060013
ref: 92001

BOLT-BANJO,6MM

€ 4.00

92005

920051146
ref: 92005

FITTING

€ 10.00

92009

920091491
ref: 92009

SCREW,5X20,WHITE

€ 2.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

920221369
ref: 92022

WASHER,6.2X18X1.2

€ 0.50

92022A

920221475
ref: 92022A

WASHER,8.5X16X0.5

€ 2.50

92028

920281589
ref: 92028

BUSHING,8X12X8.8

€ 5.00

92037

920371260
ref: 92037

CLAMP,OIL PUMP

€ 2.50

92037A

920371601
ref: 92037A

CLAMP

€ 9.00

92170

921702043
ref: 92170

CLAMP

€ 1.00

92190

921901191
ref: 92190

TUBE, 3X6X120

€ 17.00

92190A

921901210
ref: 92190A

TUBE

€ 7.50
