FRAME

KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

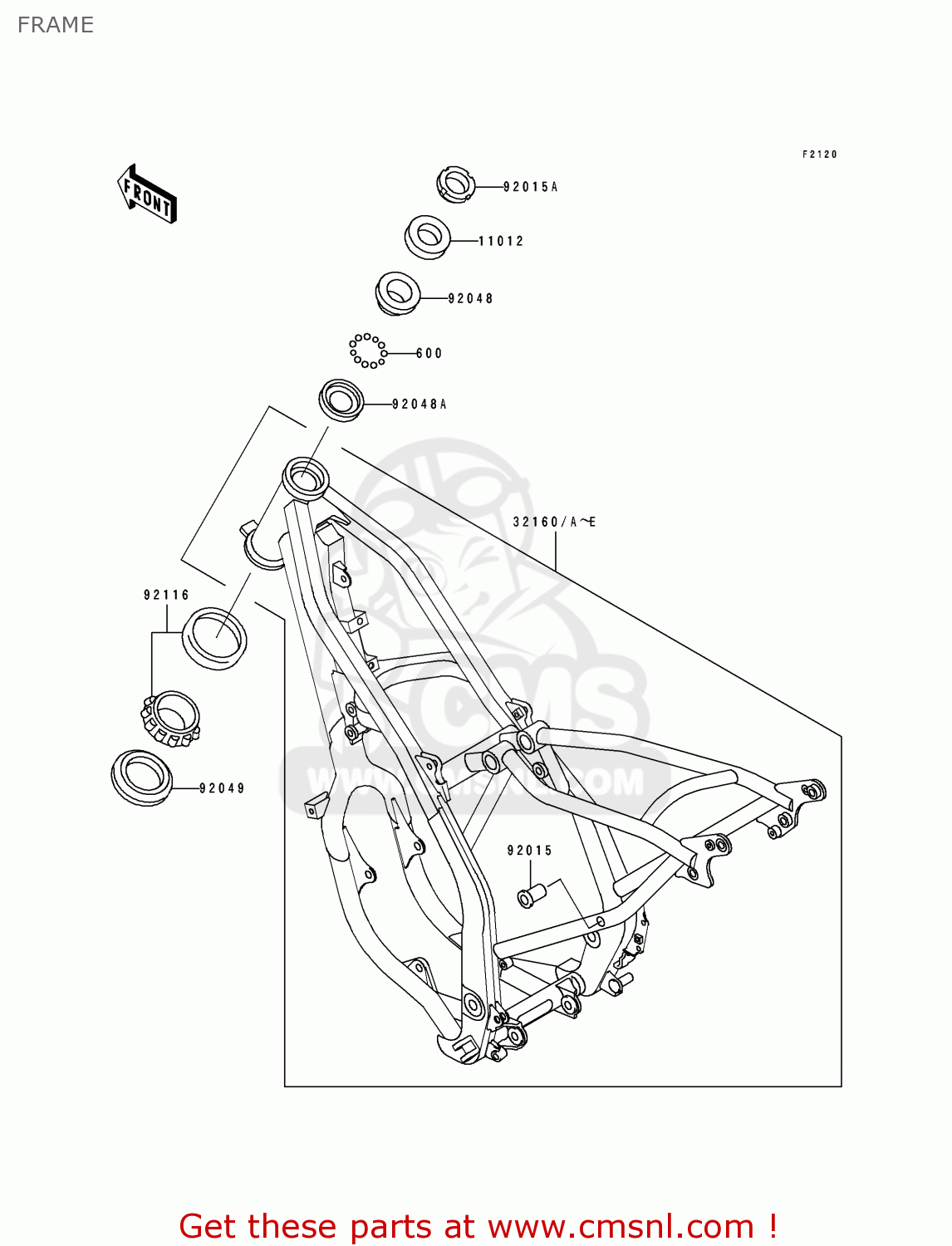

Frame diagram KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

prices are in EUR

ref

part #

description

quantity

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

11012

46098018
ref: 11012

CAP,STEERING STEM

€ 4.00

32160B

321601200CC
ref: 32160B
FRUK

FRAME-COMP,L.GREEN

€ 837.50

32160C

321601200W1
ref: 32160C
FRUK

FRAME-COMP,BLUE NO.1

€ 837.50

32160D

321601209CC
ref: 32160D
SD

FRAME-COMP,L.GREEN

€ 591.50

32160E

321601209W1
ref: 32160E
SD

FRAME-COMP,BLUE NO.1

€ 837.50

92015

920151759
ref: 92015

NUT,POP,6MM

€ 3.00

92015A

92090022
ref: 92015A

NUT,STEERING LOCK,25M

€ 18.50

92048

92047014
ref: 92048

RACE,STEERING STEM BE

€ 12.50

92048A

92048009
ref: 92048A

RACE,STRG STM

€ 14.00

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00
