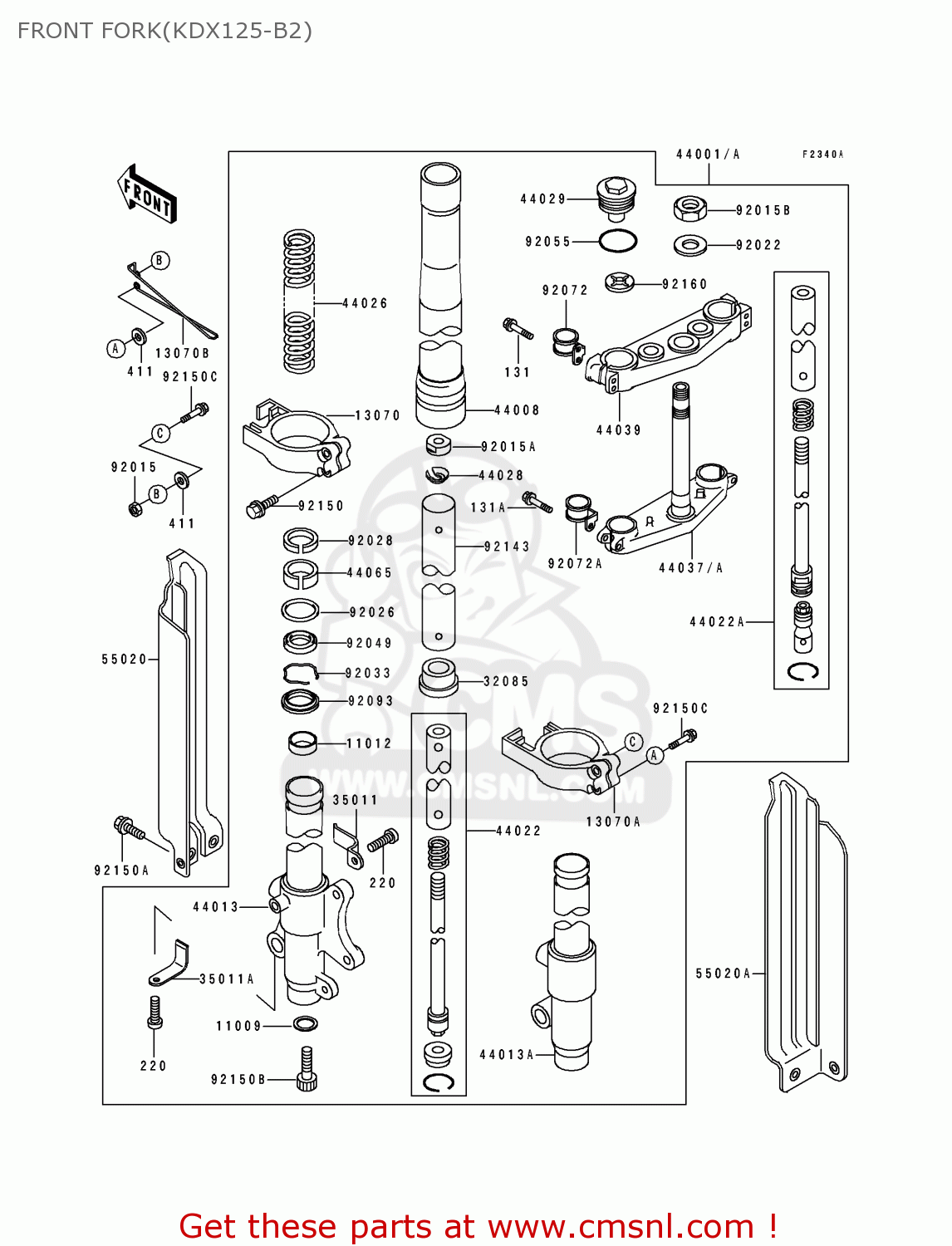

FRONT FORK(KDX125-B2)

KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

Front fork(kdx125-b2) diagram KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

FRONT FORK(KDX125-B2) KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
FRONT FORK(KDX125-B2) KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
FRONT FORK(KDX125-B2) KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
prices are in EUR
ref
part #
description
quantity
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
11012
110121761
ref: 11012
CAP
110121761
€ 26.00
13070
130701222
ref: 13070
GUIDE,FORK,LH
€ 18.00
13070A
130701223
ref: 13070A
GUIDE,FORK,RH
130701223
€ 18.50
13070B
130701226
ref: 13070B
GUIDE,CABLE
€ 8.50
32085
320851327
ref: 32085
STOPPER
320851327
€ 14.50
35011
350111546
ref: 35011
STAY
€ 11.50
35011A
350111547
ref: 35011A
STAY
€ 11.50
44001
440011790
ref: 44001
FRUK
FORK-FRONT
€ 3,873.00
44001A
440011805
ref: 44001A
SD
FORK-FRONT
€ 3,873.00
44008
440081010
ref: 44008
PIPE-FORK OUTER
440081010
€ 491.50
44013
440131329
ref: 44013
PIPE-FORK INNER,LH
440131329
€ 336.00
44013A
440131330
ref: 44013A
PIPE-FORK INNER,RH
€ 320.50
44022
440221259
ref: 44022
CYLINDER-FORK,LH
440221259
€ 328.50
44022A
440221260
ref: 44022A
CYLINDER-FORK,RH
440221260
€ 328.50
44026
440261472
ref: 44026
SPRING-FRONT FORK
440261472
€ 45.50
44028
440281076
ref: 44028
GUIDE-FORK SPRING
€ 8.00
44029
440291145
ref: 44029
SEAT-FORK SPRING
€ 52.50
44037
440371279
ref: 44037
FRUK
HOLDER-FORK UNDER
€ 450.50
44037A
440371287
ref: 44037A
SD
HOLDER-FORK UNDER
€ 450.50
44039
440391210
ref: 44039
HOLDER-FORK UPPER
440391210
€ 258.00
44065
440651100
ref: 44065
BUSHING-FRONT FORK
440651100
€ 33.00
55020
550201368
ref: 55020
GUARD,FORK,LH
€ 40.00
55020A
550201369
ref: 55020A
GUARD,FORK,RH
550201369
€ 38.50
92015
920151752
ref: 92015
NUT,LOCK,FLANGED,5MM
920151752
€ 2.50
92015A
920151832
ref: 92015A
NUT
920151832
€ 17.00
92015B
920151833
ref: 92015B
NUT
920151833
€ 12.50
92022
920221385
ref: 92022
WASHER,FORK TOP
920221385
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92028
920281614
ref: 92028
BUSHING
€ 19.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92049
920491370
ref: 92049
SEAL-OIL
€ 17.50
92055
920551485
ref: 92055
RING-O
€ 3.00
92072
920721271
ref: 92072
BAND
920721271
€ 13.00
92072A
920721278
ref: 92072A
BAND
920721278
€ 17.00
92093
920931312
ref: 92093
SEAL,FORK OUTER TUBE
920931312
€ 19.00
131
131G0850
ref: 131
BOLT-FLANGED
131G0850
€ 1.00
131A
131G1045
ref: 131A
BOLT-FLANGED
€ 5.50
220
220B0506
ref: 220
SCREW-PAN-CROS
€ 1.50
411
411B0500
ref: 411
WASHER-PLAIN,5MM
411B0500
€ 0.50
92143
921431447
ref: 92143
COLLAR
921431447
€ 139.50
92150
921501270
ref: 92150
BOLT,5X35
921501270
€ 3.50
92150A
921501340
ref: 92150A
BOLT,6X14
921501340
€ 3.00
92150B
921501432
ref: 92150B
BOLT
921501432
€ 6.50
92150C
921501434
ref: 92150C
BOLT,5X40
921501434
€ 3.00
92160
921601243
ref: 92160
DAMPER
€ 8.00
