IGNITION SWITCH

KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

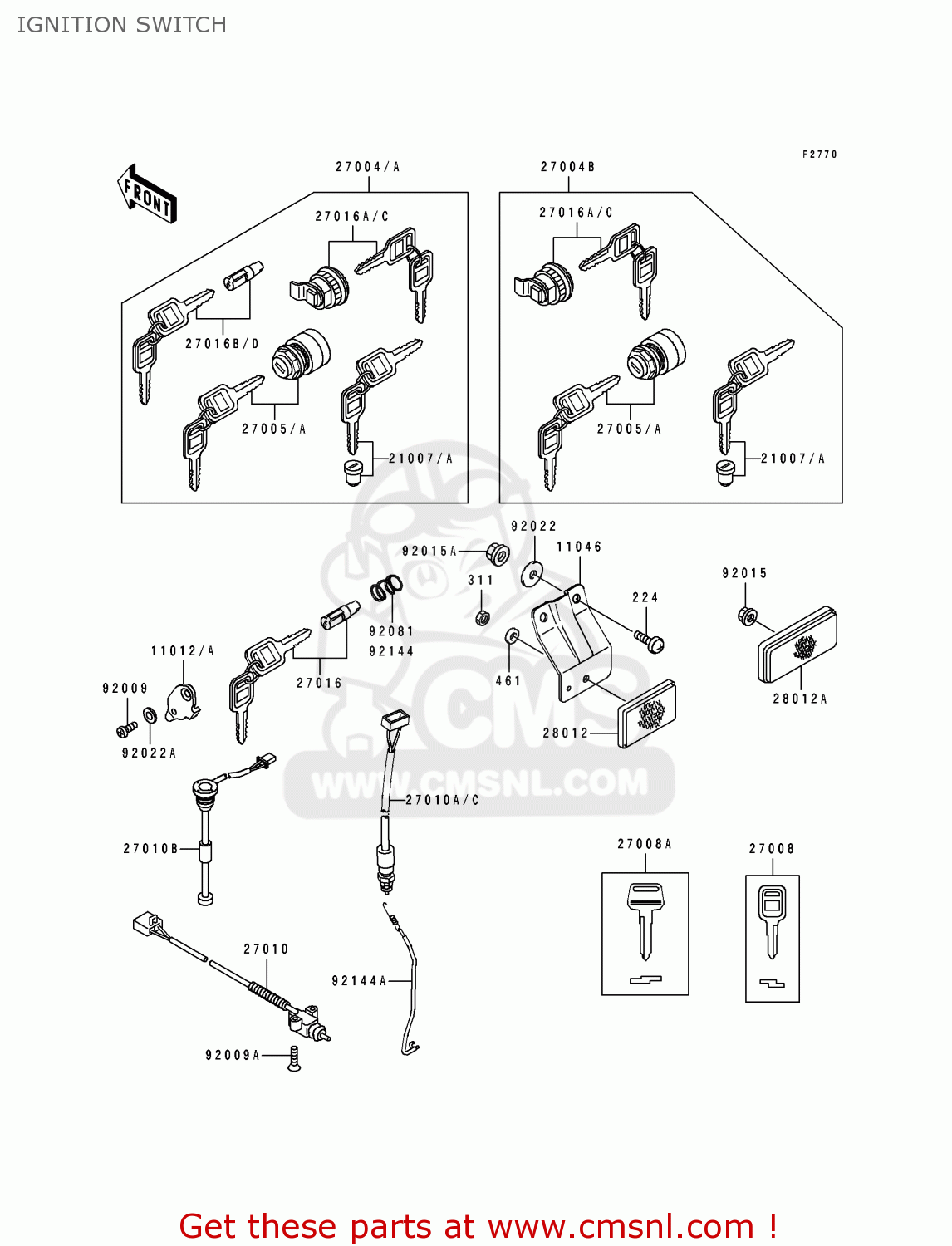

Ignition switch diagram KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

IGNITION SWITCH KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
IGNITION SWITCH KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
IGNITION SWITCH KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
SD
CAP,STEERING LOCK
110121134
€ 4.50
11012A
110121736
ref: 11012A
FRUK
CAP,STEERING LOCK
110121736
€ 4.50
11046
110461285
ref: 11046
BRACKET,REFLECTOR
110461285
€ 8.50
21007A
210075032
ref: 21007A
ROTOR,LOCK,TANK CAP
€ 50.50
27004A
270045418
ref: 27004A
FRUK
SWITCH-ASSY
€ 155.50
27004B
270045419
ref: 27004B
SD
SWITCH-ASSY
€ 150.00
27005A
270051163
ref: 27005A
SWITCH-ASSY-IGNITION
270051163
€ 98.50
27008A
270081164
ref: 27008A
KEY-LOCK,BLANK,G
270081164
€ 15.00
27010
270101247
ref: 27010
SWITCH,SIDE STAND
€ 51.00
27010B
270101280
ref: 27010B
SWITCH,OIL LEVEL
€ 37.50
27010C
270101301
ref: 27010C
SWITCH,BRAKE LAMP
270101301
€ 36.50
27016
270161005
ref: 27016
SD
LOCK-ASSY,STEERING
270161005
€ 65.00
27016C
270165177
ref: 27016C
LOCK-ASSY,TOOL BOX
€ 50.00
27016D
270165178
ref: 27016D
FRUK
LOCK-ASSY,STEERING
270165178
€ 66.50
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
280121054
€ 15.00
92009
92008007
ref: 92009
SCREW-TAPPING
92008007
€ 2.50
92009A
920091359
ref: 92009A
SCREW
920091359
€ 2.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
920221557
€ 1.00
92022A
92097003
ref: 92022A
WASHER
92097003
€ 2.50
92081
27032001
ref: 92081
SD
SPRING-STEERING LOCK
27032001
€ 3.50
92144
921441222
ref: 92144
FRUK
SPRING,STEERING LOCK
921441222
€ 2.50
224
224C0614
ref: 224
SCREW-PAN-WP-CROS
224C0614
€ 2.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
92144A
921441474
ref: 92144A
SPRING,BRAKE LAMP SWI
921441474
€ 14.50
