BRAKE PEDAL

KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

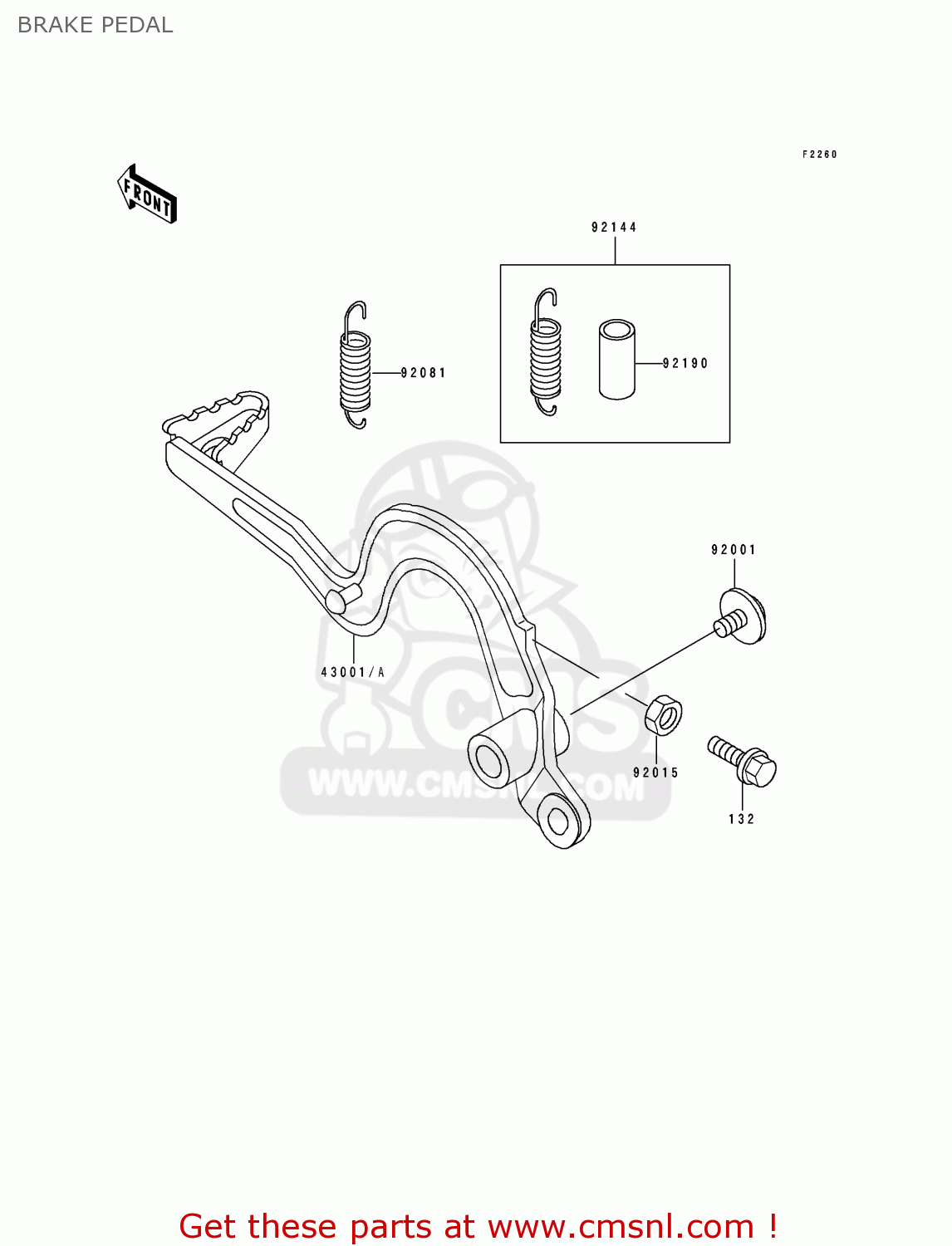

Brake pedal diagram KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

BRAKE PEDAL KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

BRAKE PEDAL KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

prices are in EUR

ref

part #

description

quantity

43001A

430011300
ref: 43001A

LEVER-BRAKE,PEDAL

€ 47.00

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92144

921441587
ref: 92144

SPRING,BRAKE PEDAL RE

€ 3.50

92190

921901217
ref: 92190

TUBE,12X15X25

€ 2.00
