METER

KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

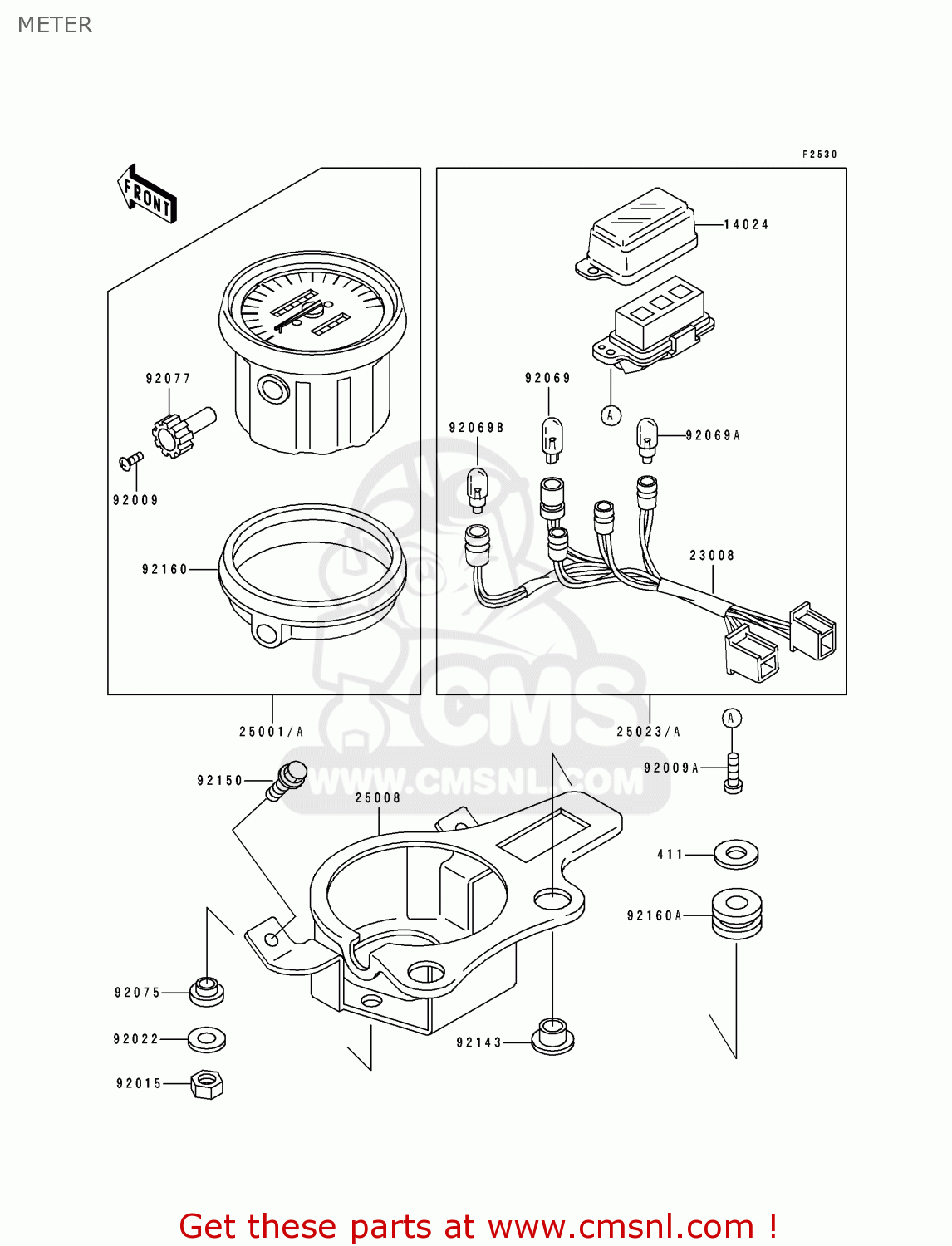

Meter diagram KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD

METER KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
METER KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
METER KDX125-B2 KDX125SR 1991 UNITED KINGDOM FR SD
prices are in EUR
ref
part #
description
quantity
411
411B0800
ref: 411
WASHER-PLAIN,8MM
411B0800
€ 0.50
14024
140241505
ref: 14024
COVER,PILOT BOX,UPP
140241505
€ 7.50
23008
230081449
ref: 23008
SOCKET-ASSY,PILOT BOX
€ 47.50
25001
250011800
ref: 25001
UK
METER-ASSY,MPH
€ 445.00
25001A
250011818
ref: 25001A
FRSD
METER-ASSY,KPH
€ 635.00
25008
250081161
ref: 25008
BRACKET-METER
250081161
€ 68.50
25023
250231174
ref: 25023
FRSD
COVER-METER CASE,PILO
€ 55.50
25023A
250231183
ref: 25023A
UK
COVER-METER CASE,PILO
€ 55.50
92009
920091172
ref: 92009
SCREW,2X6,BLACK
920091172
€ 2.00
92009A
920091628
ref: 92009A
SCREW,TAPPING,4X12
€ 2.00
92015
920151221
ref: 92015
NUT,LOCK,5MM
920151221
€ 4.00
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
920691059
ref: 92069
BULB,12V 1.7W
920691059
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
920691068
€ 2.50
92069B
920691070
ref: 92069B
BULB,12V 1.7W
920691070
€ 3.00
92075
25019023
ref: 92075
DAMPER RUBBER,METER
25019023
€ 2.50
92077
920771073
ref: 92077
KNOB,METER
920771073
€ 4.00
92143
921431422
ref: 92143
COLLAR
921431422
€ 7.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92160
921601064
ref: 92160
DAMPER,SPEEDOMETER
921601064
€ 18.50
92160A
921601230
ref: 92160A
DAMPER
921601230
€ 3.00
