Genuine KDX Kawasaki Parts delivered quickly!


TAIL LAMP

KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

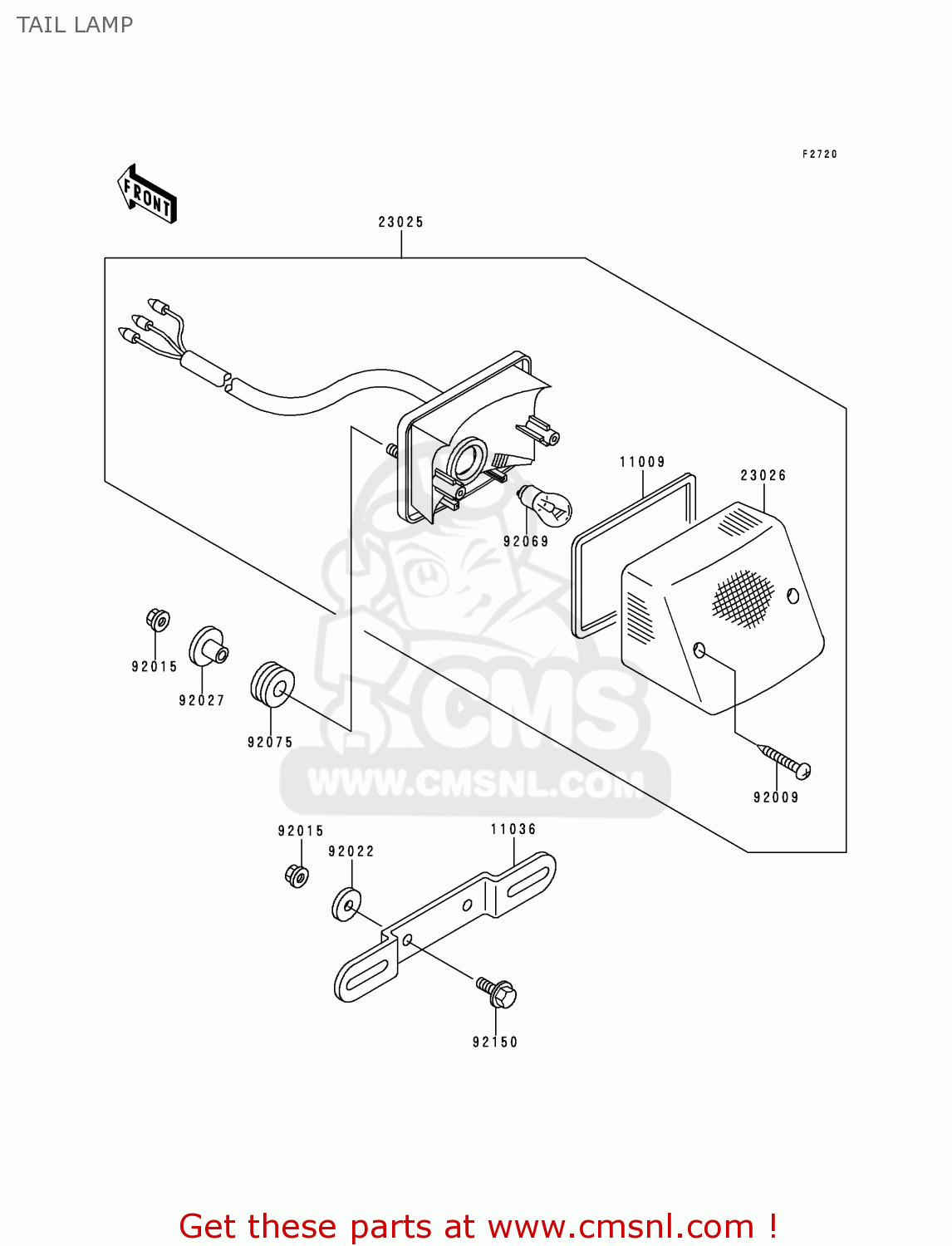

Tail lamp diagram KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

TAIL LAMP KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
TAIL LAMP KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
TAIL LAMP KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
prices are in EUR
ref
part #
description
quantity
11009
110091078
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
110091078
€ 4.50
11036
110361040
ref: 11036
BRACKET-A,LICENSE PLT
110361040
€ 13.00
23025
230251198
ref: 23025
LAMP-TAIL
230251198
€ 85.50
23026
230261113
ref: 23026
LENS,TAIL LAMP
230261113
€ 51.50
92009
920091056
ref: 92009
SCREW,TAPPING
920091056
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
92022125
€ 1.00
92027
92027251
ref: 92027
COLLAR,L=13.1
92027251
€ 1.00
92069
920691084
ref: 92069
BULB,12V 21/5W
920691084
€ 6.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
