STEP
KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

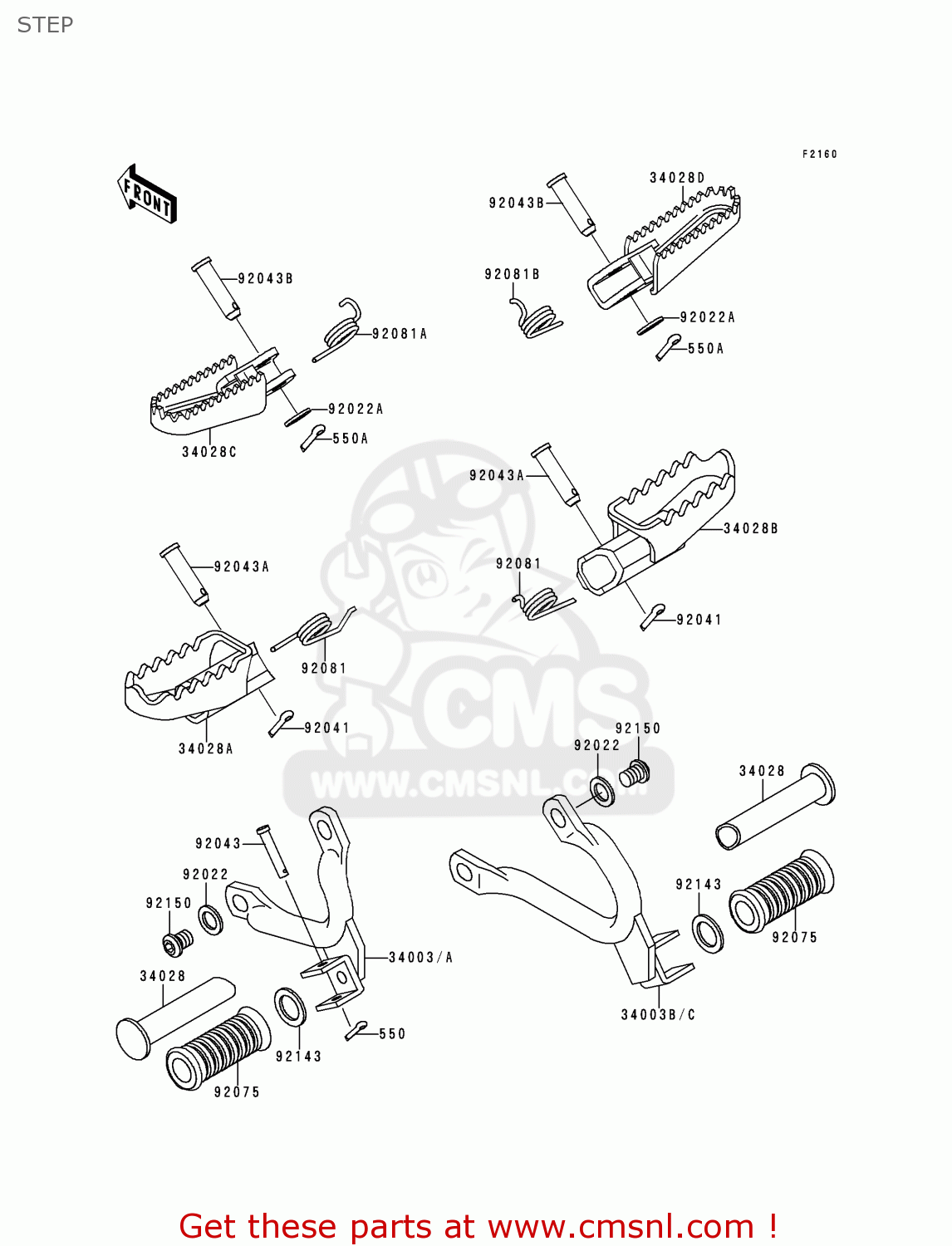

Step diagram KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
STEP KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
×
prices are in EUR
ref
part #
description
quantity
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
34003
340031335CC
ref: 34003
HOLDER-STEP,LH,L.GREE
€ 33.50
34003A
340031335W1
ref: 34003A
HOLDER-STEP,LH,BLUE N
€ 33.50
34003B
340031336CC
ref: 34003B
HOLDER-STEP,RH,L.GREE
€ 38.00
34003C
340031336W1
ref: 34003C
HOLDER-STEP,RH,BLUE N
€ 38.00
34028
34028009
ref: 34028
BAR-REAR FOOTREST
€ 24.00
34028A
340281235
ref: 34028A
STEP,FR,LH
€ 44.50
34028B
340281236
ref: 34028B
STEP,FR,RH
€ 44.50
92022
920221829
ref: 92022
WASHER,10.2X16X1
€ 2.50
92041
920411051
ref: 92041
COTTER
€ 3.00
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043080
ref: 92043A
PIN-FOOTREST BAR FIT
€ 3.50
92075
92076020
ref: 92075
DAMPER
€ 7.50
92081
920811133
ref: 92081
SPRING,FOOTREST STEP
€ 4.00
92143
921431467
ref: 92143
COLLAR
€ 2.50
92150
921501111
ref: 92150
BOLT,SOCKET,10X16
€ 4.00
