IGNITION SWITCH

KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

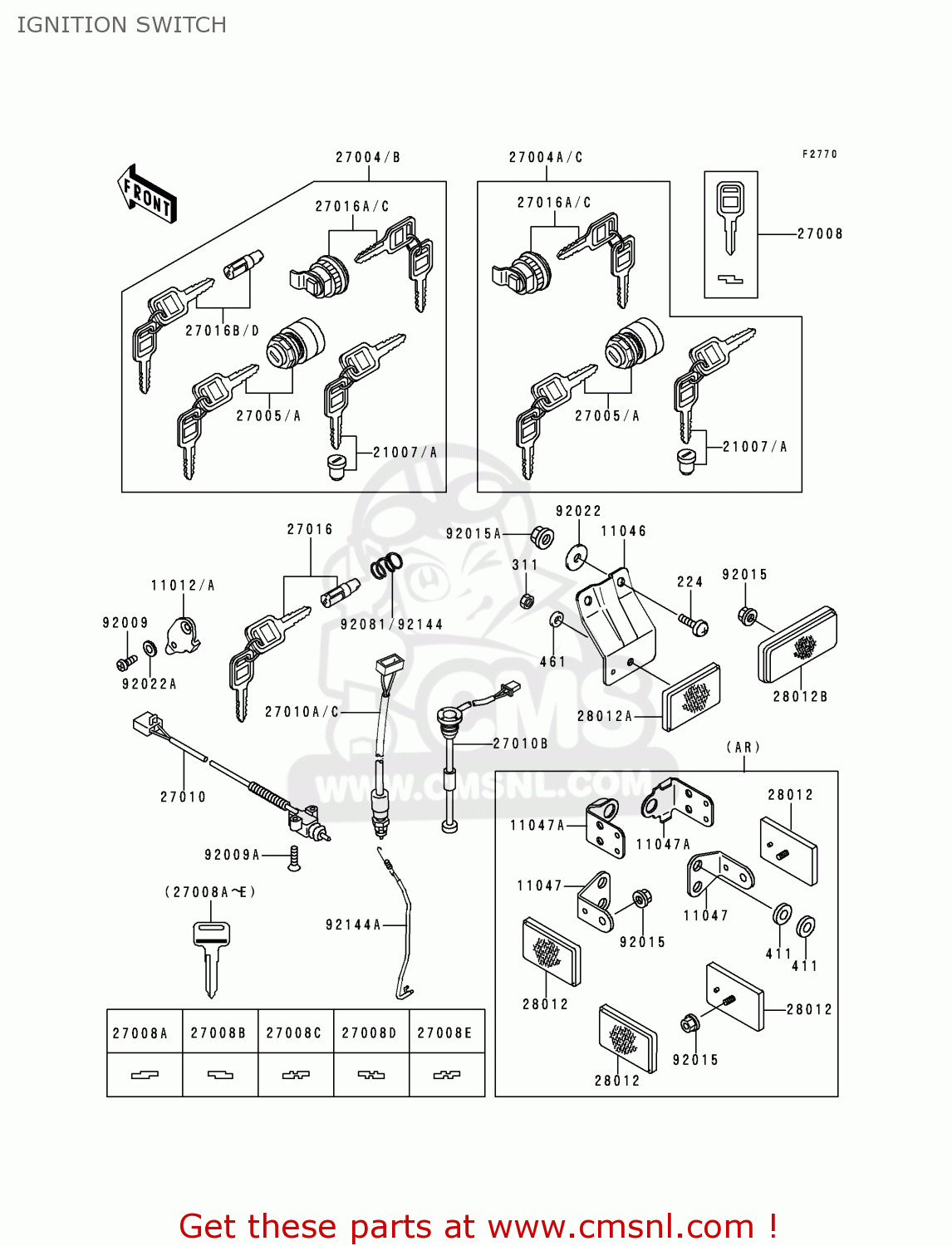

Ignition switch diagram KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

IGNITION SWITCH KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
IGNITION SWITCH KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
IGNITION SWITCH KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
CAP,STEERING LOCK
110121134
€ 4.50
11047
110471121
ref: 11047
AR
BRACKET,REFLECTOR
€ 7.50
21007
210075005
ref: 21007
ROTOR,FUEL TANK
210075005
€ 71.00
27004
270045388
ref: 27004
AREUFRSASTUK
SWITCH-ASSY
270045388
€ 142.50
27004A
270045402
ref: 27004A
NRSD
SWITCH-ASSY
€ 136.00
27005
270051150
ref: 27005
SWITCH-ASSY-IGNITION
€ 98.50
27008
270081103
ref: 27008
KEY-LOCK,BLANK
270081103
€ 13.50
27010
270101247
ref: 27010
SWITCH,SIDE STAND
€ 51.00
27010A
270101262
ref: 27010A
SWITCH,BRAKE LAMP
270101262
€ 16.00
27010B
270101280
ref: 27010B
SWITCH,OIL LEVEL
€ 37.50
27016
270161005
ref: 27016
NRSD
LOCK-ASSY,STEERING
270161005
€ 65.00
27016A
270165136
ref: 27016A
LOCK-ASSY,TOOL BOX
€ 56.50
27016B
270165153
ref: 27016B
AREUFRSASTUK
LOCK-ASSY
€ 97.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012B
280121077
ref: 28012B
REFLECTOR-REFLEX
280121077
€ 16.00
92009
92008007
ref: 92009
SCREW-TAPPING
92008007
€ 2.50
92009A
920091359
ref: 92009A
SCREW
920091359
€ 2.50
92015
920151259
ref: 92015
EUFRNRSASDSTUK
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92022A
92097003
ref: 92022A
WASHER
92097003
€ 2.50
92081
27032001
ref: 92081
SPRING-STEERING LOCK
27032001
€ 3.50
92144A
921441474
ref: 92144A
SPRING,BRAKE LAMP SWI
921441474
€ 14.50
411
411B0800
ref: 411
AR
WASHER-PLAIN,8MM
411B0800
€ 0.50
