GENERATOR

KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

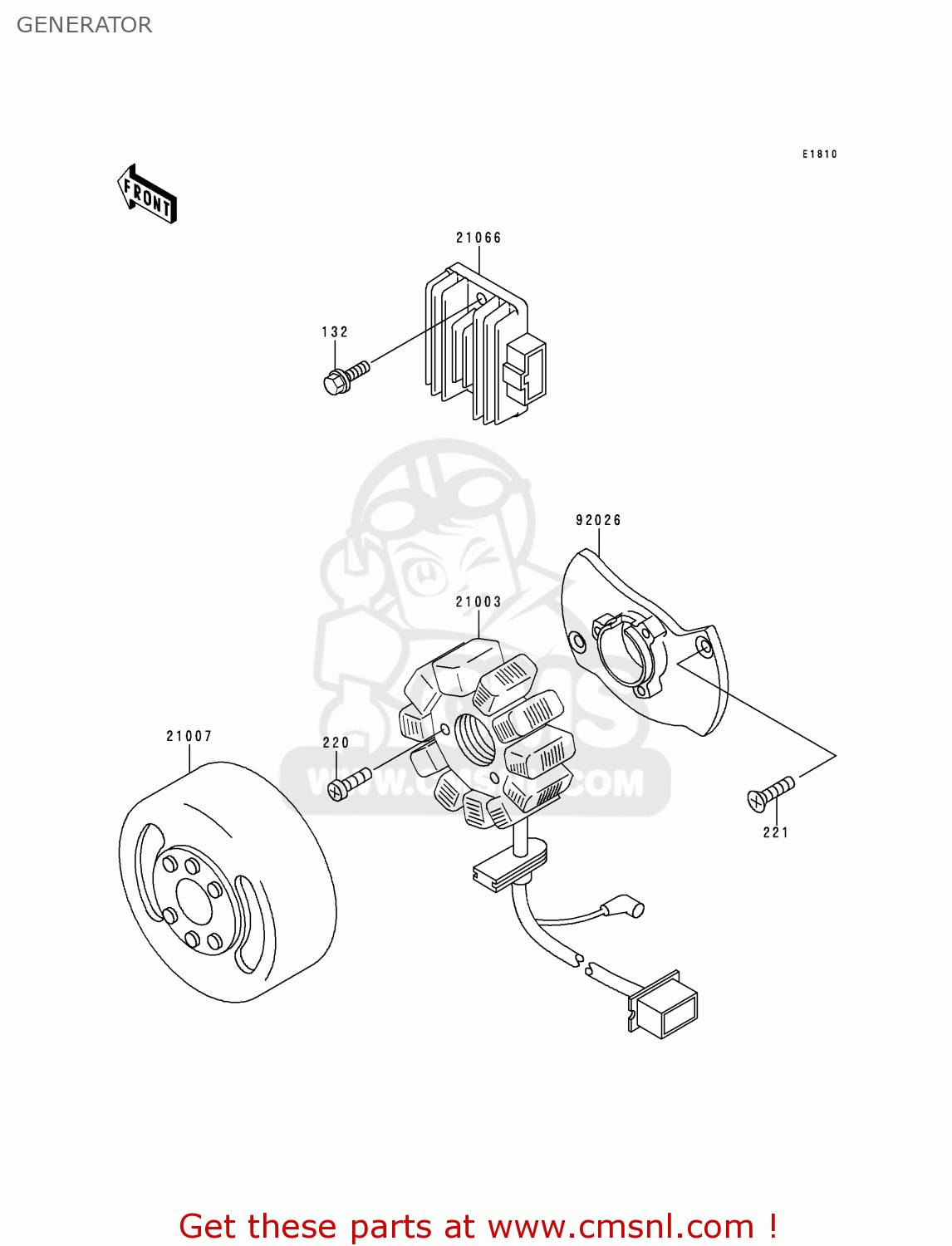

Generator diagram KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

GENERATOR KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

GENERATOR KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

prices are in EUR

ref

part #

description

quantity

132

132G0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

220

220B0530
ref: 220

SCREW-PAN-CROS

€ 2.00

221

221B0616
ref: 221

SCREW-CNTSNK HD,6X16

€ 0.50

21003

210031224
ref: 21003

STATOR

€ 442.00

21007

210071220
ref: 21007

ROTOR,MAGNETO

€ 177.00

21066

210661039
ref: 21066

REGULATOR-VOLTAGE

€ 167.50

92026

920261381
ref: 92026

SPACER

€ 41.50
