Genuine KDX Kawasaki Parts delivered quickly!


FRONT FORK(KDX125-A1)

KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

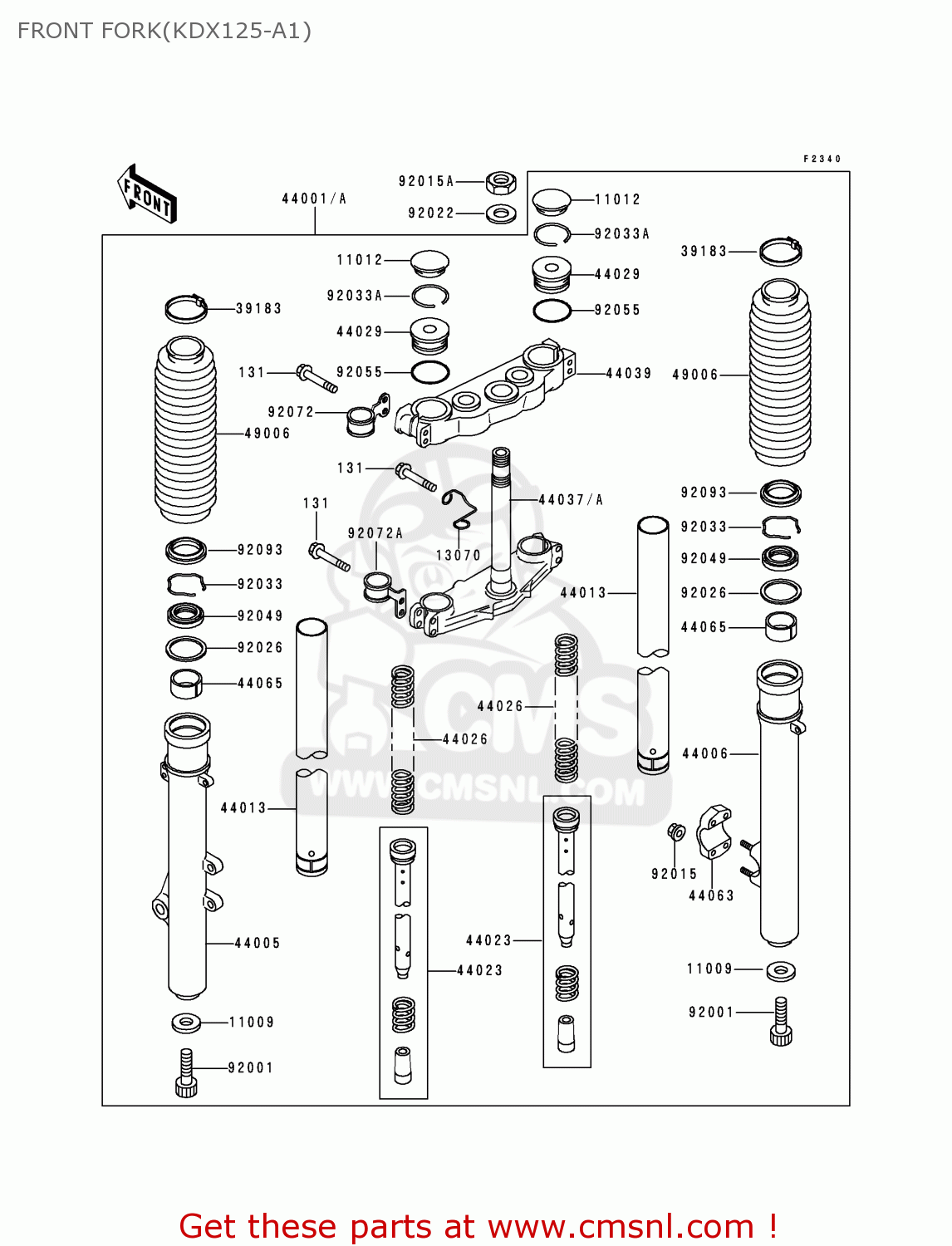

Front fork(kdx125-a1) diagram KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST

FRONT FORK(KDX125-A1) KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
FRONT FORK(KDX125-A1) KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
FRONT FORK(KDX125-A1) KDX125-A1 1990 EUROPE UK FR AR NR SA SD ST
prices are in EUR
ref
part #
description
quantity
131
131G0840
ref: 131
BOLT, 8 X 40
€ 5.50
11009
44045051
ref: 11009
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
11012
110121561
ref: 11012
CAP,FORK TOP
110121561
€ 12.00
13070
130701234
ref: 13070
GUIDE
€ 5.50
39183
391831057
ref: 39183
BAND-ASSY
€ 4.50
44001
440011759GF
ref: 44001
AREUFRSASTUK
FORK-FRONT,BLUE NO.32
€ 1,289.00
44001A
440011777GF
ref: 44001A
NRSD
FORK-FRONT,BLUE NO.32
€ 1,427.00
44005
440051307
ref: 44005
PIPE-LEFT FORK OUTER
440051307
€ 163.50
44006
440061304
ref: 44006
PIPE-RIGHT FORK OUTER
440061304
€ 178.00
44013
440131328
ref: 44013
PIPE-FORK INNER
440131328
€ 149.50
44023
440231075
ref: 44023
CYLINDER-COMP-FORK
€ 60.50
44026
440261471
ref: 44026
SPRING-FRONT FORK
440261471
€ 28.50
44029
440291144
ref: 44029
SEAT-FORK SPRING
€ 15.00
44037
440371276
ref: 44037
AREUFRSASTUK
HOLDER-FORK UNDER
€ 277.50
44037A
440371277
ref: 44037A
NRSD
HOLDER-FORK UNDER
440371277
€ 277.50
44039
440391208
ref: 44039
HOLDER-FORK, UPPER
440391208
€ 128.50
44063
440631059
ref: 44063
HOLDER-FRONT AXLE
€ 33.50
44065
440651079
ref: 44065
BUSHING-FRONT FORK
440651079
€ 16.00
49006
490061262GF
ref: 49006
BOOT,FOOK,BLUE NO.32
490061262GF
€ 35.50
92001
920011464
ref: 92001
BOLT
920011464
€ 4.00
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151224
ref: 92015A
NUT,FORK TOP
€ 11.50
92022
920221385
ref: 92022
WASHER,FORK TOP
920221385
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92049
920491368
ref: 92049
SEAL-OIL
920491368
€ 17.50
92055
920551481
ref: 92055
RING-O
920551481
€ 3.50
92072
920721271
ref: 92072
BAND
920721271
€ 13.00
92072A
920721272
ref: 92072A
BAND
€ 12.00
92093
920931311
ref: 92093
SEAL,FORK OUTER TUBE
€ 9.50
